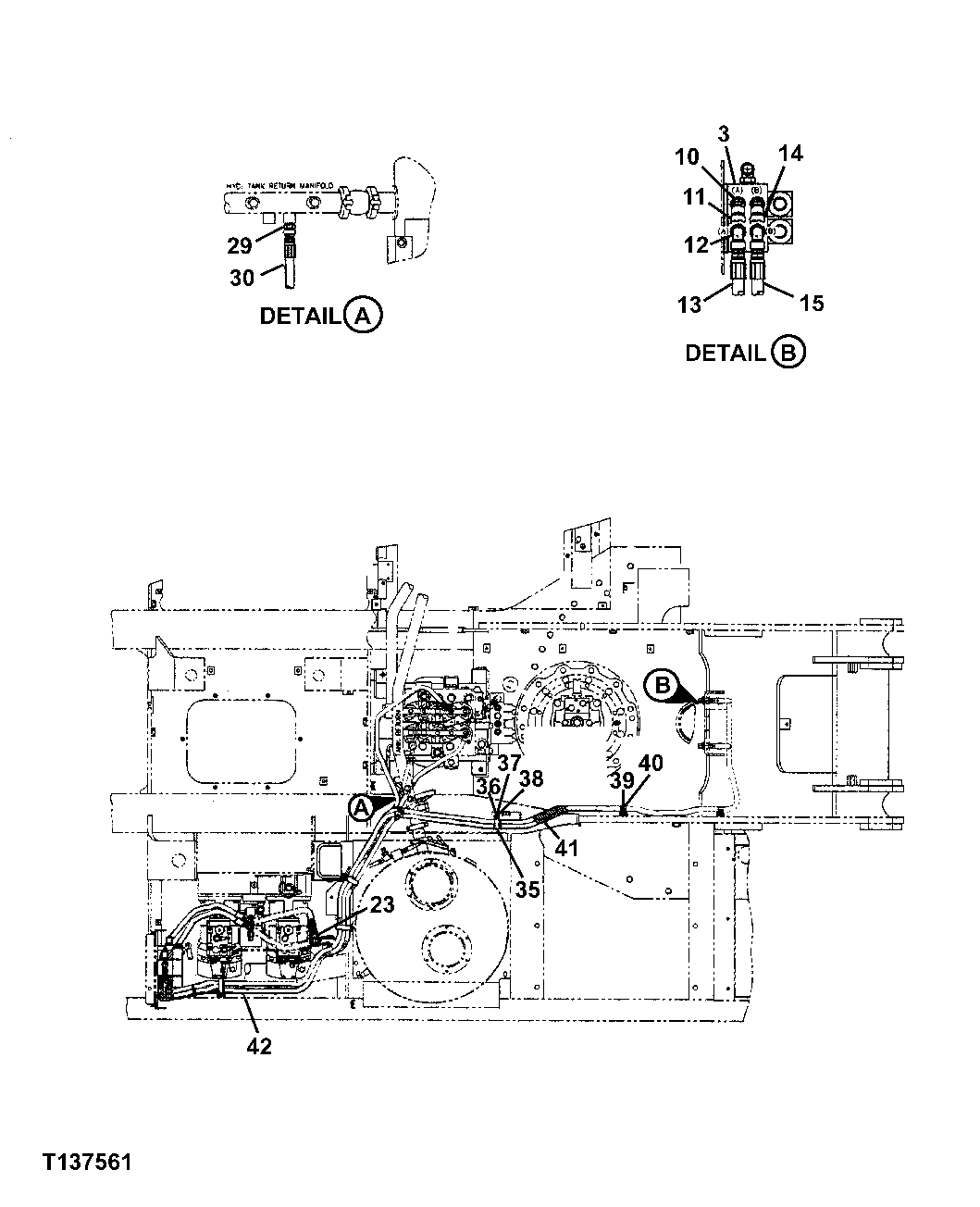

Запчасти John Deere 330LC, 370 179 - Forestry Cab Pilot Piping (O/C And Rotate Heeler) 3360C Hydraulic System (Forestry Cab)

3

FFSB102385

Plate

1шт.

10

AN113929

Elbow Fitting

2шт.

11

FFSB102141

Hydraulic Hose

1шт.

12

Elbow Fitting

( 38H1241 NOT AVAILABLE FOR SERVICE)

3шт.

13

FFSB102240

Hydraulic Hose

1шт.

14

FFSB102244

Hydraulic Hose

1шт.

15

FFSB102241

Hydraulic Hose

1шт.

23

38H1033

Tee Fitting

1шт.

29

4190243

Adapter Fitting

(SUB FOR TH106151)

1шт.

30

FFSB102243

Hydraulic Hose

1шт.

35

FFSB108224

Clamp

1шт.

36

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

37

24M7229

Shim

1шт.

38

12H317

Lock Washer

9/16"

1шт.

39

FFSB102828

Clip

2шт.

40

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

41

XPG-075

Hose Spring Guard

(SUB FOR FFSB108239)

1шт.

42

R44302

Tie Band

4шт.
