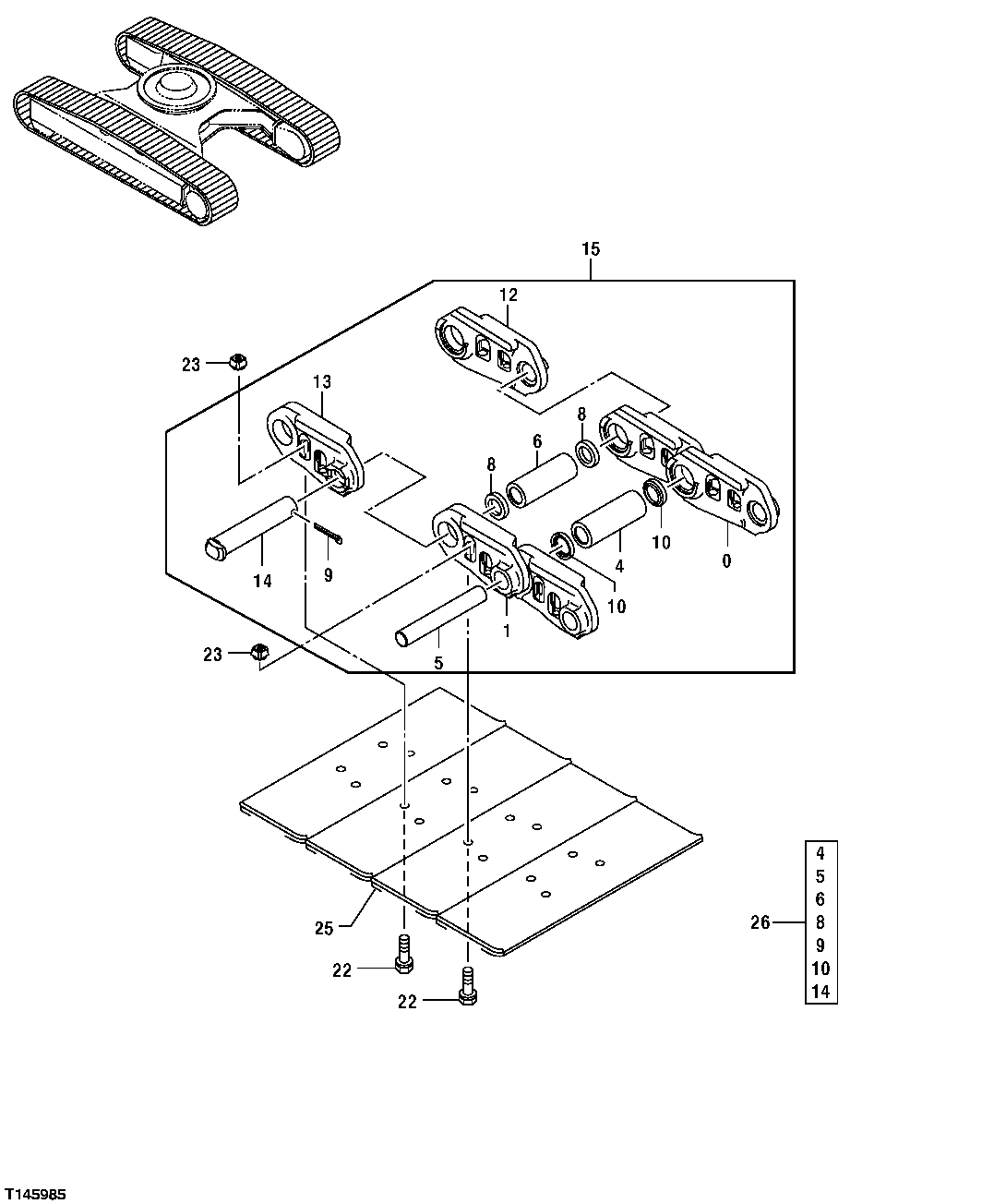

0
4328027
Track Link
(SUB FOR AT201777)
48шт.
1
4328028
Track Link
(SUB FOR AT201778)
48шт.
4
4328031
Bushing
(K) (SUB FOR AT201781)
48шт.
5
AT132153
Pin
(K)
48шт.
6
AT132505
Bushing
(K)
1шт.
8
4328032
Seal
(K) (SUB FOR AT201782)
2шт.
9
11H259
Cotter Pin
(K) 3/8" X 3-1/2"
1шт.
10
AT132527
Seal
(K)
96шт.
12
4342893
Master Track LINK-RH
(SUB FOR AT201779)
1шт.
13
4342894
Master Track LINK-LH
(SUB FOR AT201780)
1шт.
14
4342895
Master Track Pin
(K) (SUB FOR AT202240)
1шт.
15
9133225
Track Chain W/O Shoes
(SUB FOR AT250247)(QUANTI TY OF 1 EACH SIDE OF UNIT)
1шт.
22
4328034
Bolt
M24 X 72 (SUB FOR AT201 783)(EACH SIDE OF UNIT)
196шт.
23
4328035
Nut
(SUB FOR AT201784)(EACH SIDE OF UNIT)
196шт.
25
FFSB109354
Open Center 3 Bar Shoe
(700G) (EACH SIDE OF UNIT)
49шт.
26
Bushing Kit
(INCLUDES ALL (K) PARTS) ( AT170096 NLA)
1шт.
