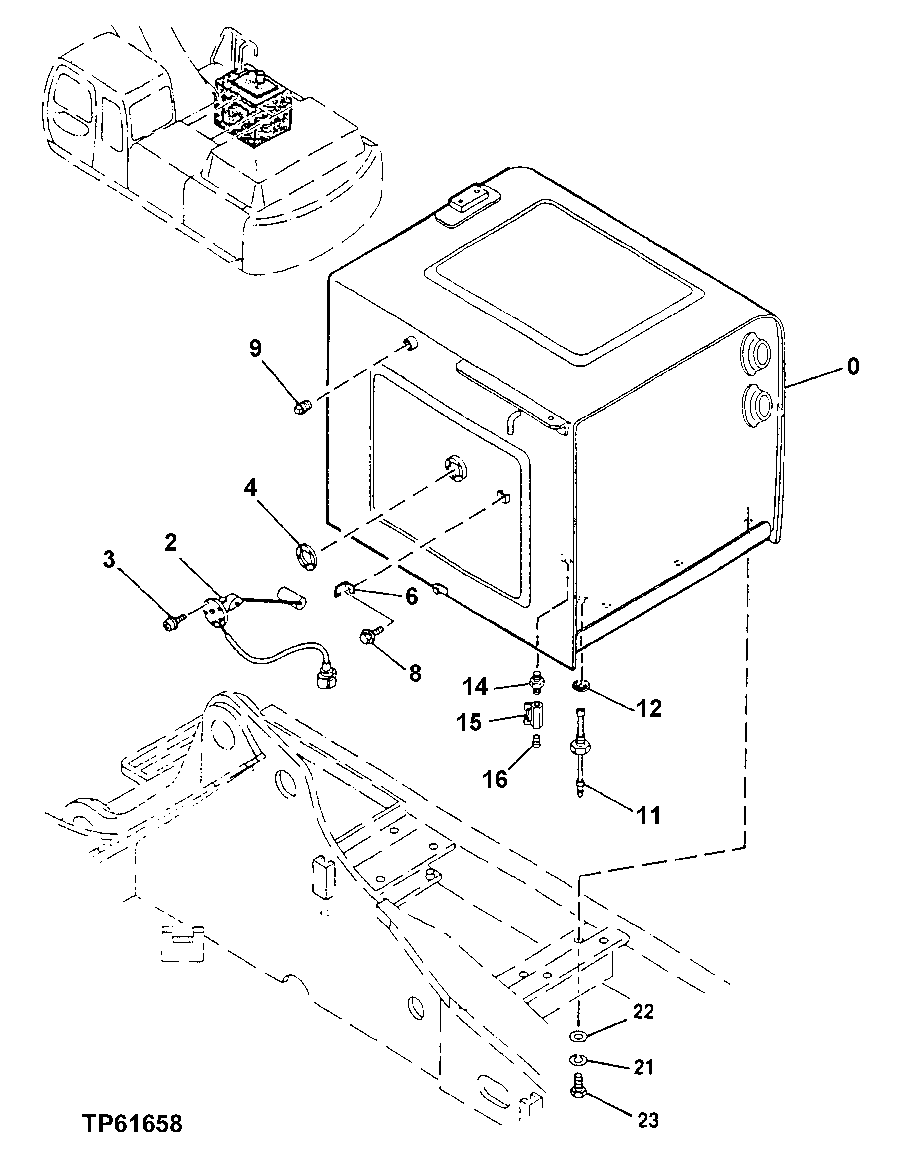

Запчасти John Deere 330LC, 370 25 - Fuel Tank 0564 Fuel Tank

0

FFSB108888

Fuel Tank

(MODIFIED FROM ORIGINAL 330LC/370 FUE L TANK) (USE WITH FFSB102097 COUNTERWE IGHT FUEL TANK ON 330LC) (USE WITH FFS B102098 COUNTERWEIGHT FUEL TANK ON 370 )

1шт.

FFSB108892

Fuel Tank

(MODIFIED FROM ORIGINAL 330LC/370 FUE L TANK) (USE WITH FFSB102097 COUNTERWE IGHT FUEL TANK ON 330LC) (USE WITH FFS B102098 COUNTERWEIGHT FUEL TANK ON 370 )

1шт.

2

4660782

Float

(SUB FOR AT154239 OR 4257128)

1шт.

3

21M7278

Screw

M5 X 10

5шт.

4

T211051

Gasket

(SUB FOR U42323)

1шт.

6

4257159

Bracket

(SUB FOR AT154243)

1шт.

8

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

9

94-2013

Fitting Plug

(SUB FOR TH100648)

1шт.

11

4259788

Switch

(SUB FOR AT154272)

1шт.

12

4157648

Sealing Washer

(SUB FOR TH108583)

1шт.

14

T116057

Fitting

1шт.

15

4374265

Drain Valve

(SUB FOR AT177419)

1шт.

16

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

21

12H294

Lock Washer

5/8"

6шт.

22

24M7338

Washer

17 X 30 X 3 mm

6шт.

23

19M7489

Cap Screw

M16 X 45

6шт.
