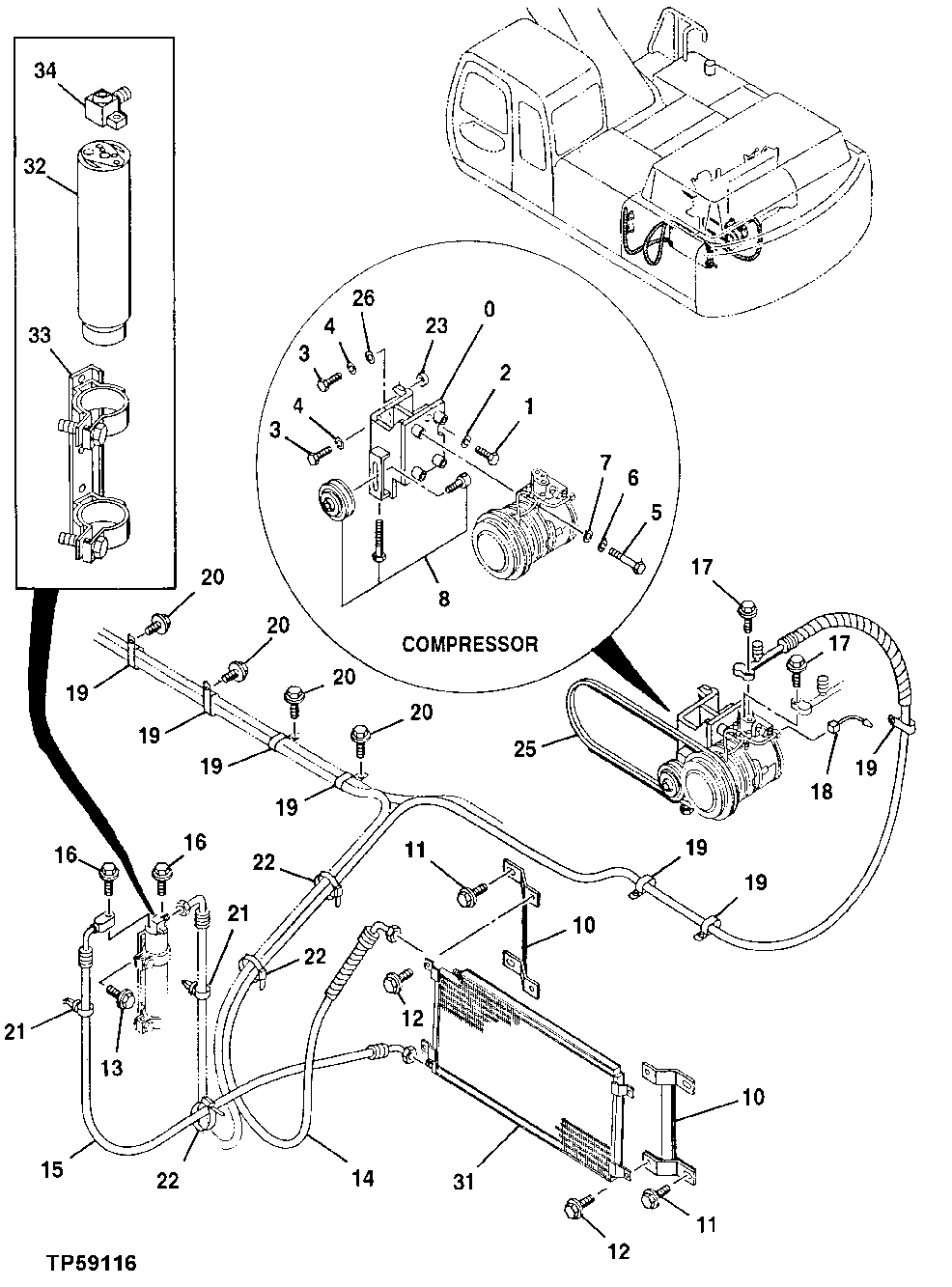

Запчасти John Deere 30LCR 156 - AIR CONDITIONER SYSTEM 1830 Heating & Air Conditioning

0

7038972

Bracket

SUB FOR AT250190; SUB FOR AT191339

1шт.

1

19M7488

Cap Screw

M16 X 40

1шт.

2

12H294

Lock Washer

5/8"

1шт.

3

19H2473

Cap Screw

1/2" X 1-3/4"

2шт.

4

12H301

Lock Washer

1/2"

2шт.

5

A37912

Bolt

SUB FOR AT218182 AND J900803

4шт.

6

Washer

12M7065 NLA

4шт.

7

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

8

4346770

Pulley

SUB FOR AT213915

1шт.

10

8071426

Bracket

SUB FOR AT250238

2шт.

11

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

13

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

14

4397484

Refrigerant Hose

SUB FOR AT250116

1шт.

15

4397480

Refrigerant Hose

SUB FOR AT250114

1шт.

16

19M7933

Cap Screw

M6 X 25

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

17

19M7874

Cap Screw

M6 X 30

2шт.

12H302

Lock Washer

1/4"

2шт.

18

4342850

Wiring Harness

SUB FOR AT215519

1шт.

19

4190266

Clip

SUB FOR TH108793

7шт.

20

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

21

4254600

Clip

SUB FOR AT154928

2шт.

22

H77698

Tie Band

3шт.

23

4397971

Spacer

SUB FOR AT250121

1шт.

25

4372746

V-Belt

SUB FOR AT184268; SUB FOR 4416952

1шт.

26

J222014

Washer

SUB FOR AT200011

1шт.

31

4356628

Heat Exchanger

SUB FOR AT215526

1шт.

32

4333461

Tank

SUB FOR AT215511

1шт.

33

4333462

Support

SUB FOR AT215512

1шт.

34

4374958

Adapter Fitting

SUB FOR AT181084

1шт.
