202 - OIL TANK

Запчасти John Deere 30LCR 202 - OIL TANK 2160 Vehicle Hydraulics

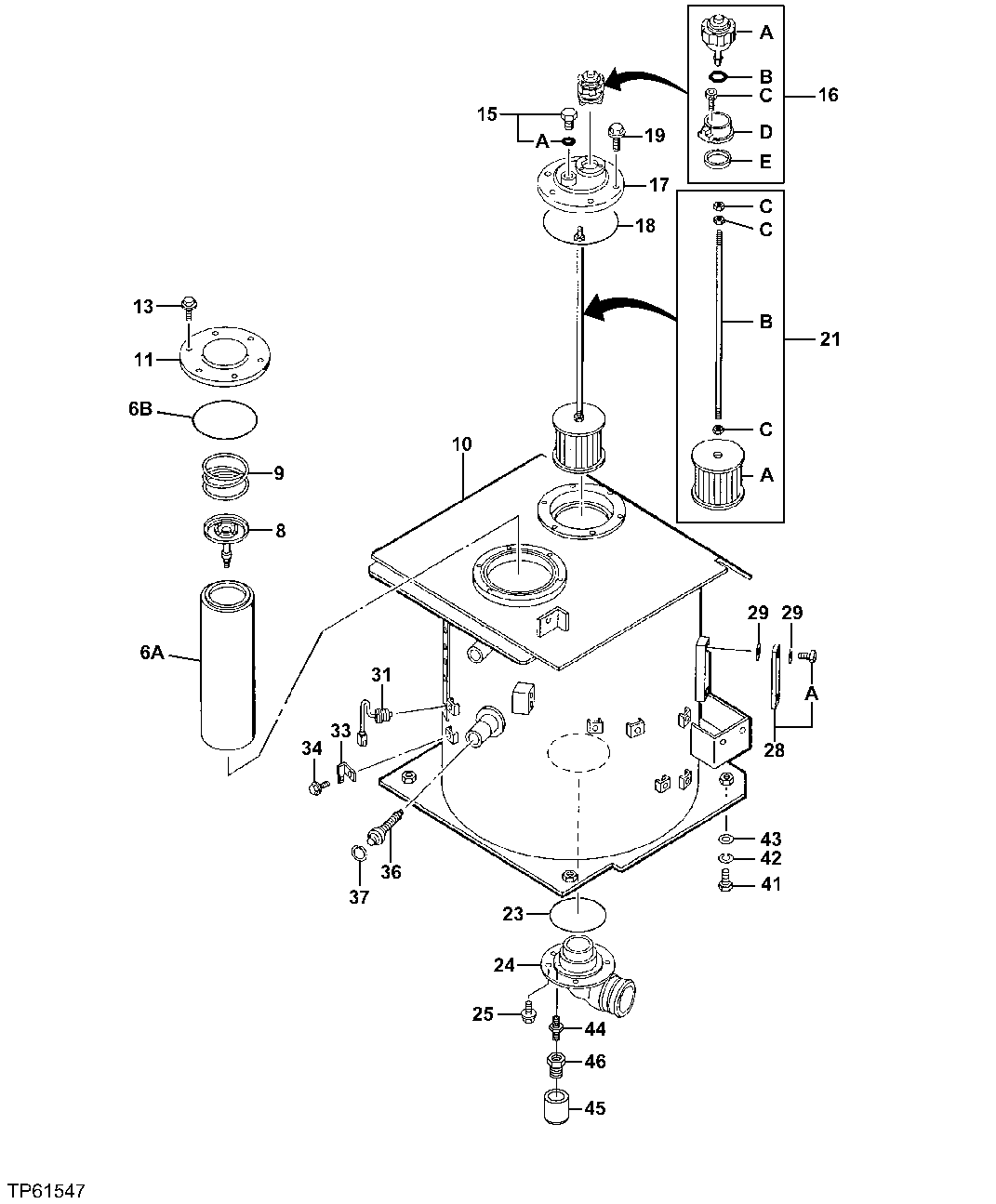

Схема запчастей John Deere 30LCR - 202 - OIL TANK 2160 Vehicle Hydraulics
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

6

Filter Element

1шт.

6A

AT147343

Filter Element

1шт.

AT162766

Filter Element

(CLEAN-UP FILTER) (SHORT TERM USE - A PPROXIMATELY THREE HOURS) (IDLE SPEED)

1шт.

6B

T110444

O-Ring

1шт.

8

4180414

Flow Control Hyd. Valve

(SUB FOR TH109511)

1шт.

9

4226549

Extension Spring

(SUB FOR TH109512)

1шт.

10

5005823

Hydraulic Reservoir

(SUB FOR AT250157)

1шт.

11

4204057

Cover

(SUB FOR TH111304)

1шт.

13

19M3142

Cap Screw

M10 X 18

6шт.

12M7066

Lock Washer

10 mm

6шт.

15

4209653

Fitting Plug

(SUB FOR TH109514)

1шт.

15A

4506418

O-Ring

(SUB FOR U46489)

1шт.

16

Breather

1шт.

16A

4326285

Cap

(SUB FOR AT167080)

1шт.

16B

953612

O-Ring

(SUB FOR TH111019)

1шт.

16C

19M8146

Screw

M5 X 16

3шт.

16D

4222875

Base

(SUB FOR TH111021)

1шт.

16E

4222876

Packing

(SUB FOR TH111022)

1шт.

17

8066670

Cover

(SUB FOR AT215118)

1шт.

AT190749

Cover

(ARTIC) (INC. IN AT190896 KIT)

1шт.

18

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

19

19M8761

Screw

M10 X 22

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

21

Cap (Hat)

1шт.

21A

4210224

Strainer

(SUB FOR TH110133)

1шт.

AT190750

Strainer

(ARCTIC) (32 MESH FOR ARTIC CON DITIONS) (INC. IN AT190896 KIT)

1шт.

21B

4404517

Stud

(SUB FOR AT250142)

1шт.

21C

14M7274

Nut

M10

3шт.

23

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

24

2034970

Line

(SUB FOR AT200963)

1шт.

25

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

26

942011

Fitting Plug

(SUB FOR 94-2011 AND TH 100434)(NOT ILLUSTRATED)

1шт.

28

8053499

Level Gauge

(SUB FOR TH108293)

1шт.

28A

4100967

Bolt

(SUB FOR TH101894)

2шт.

29

449558

Washer

(SUB FOR TH100675)

4шт.

31

4259787

Switch

(SUB FOR AT154937)

1шт.

33

4257159

Bracket

(SUB FOR AT154243)

1шт.

34

19M8324

Cap Screw

M10 X 16

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

36

4387143

Flow Control Hyd. Valve

(SUB FOR AT250440)

1шт.

37

40M7225

Snap Ring

1шт.

41

J901850

Screw

(SUB FOR AT250281)

4шт.

42

J257218

Lock Washer

(SUB FOR AT250277)

4шт.

43

24M7353

Washer

20 X 34 X 3 mm

4шт.

44

T116057

Fitting

1шт.

45

15H582

Fitting

3/4"

1шт.

46

15H607

Pipe Bushing

1/4"

1шт.
