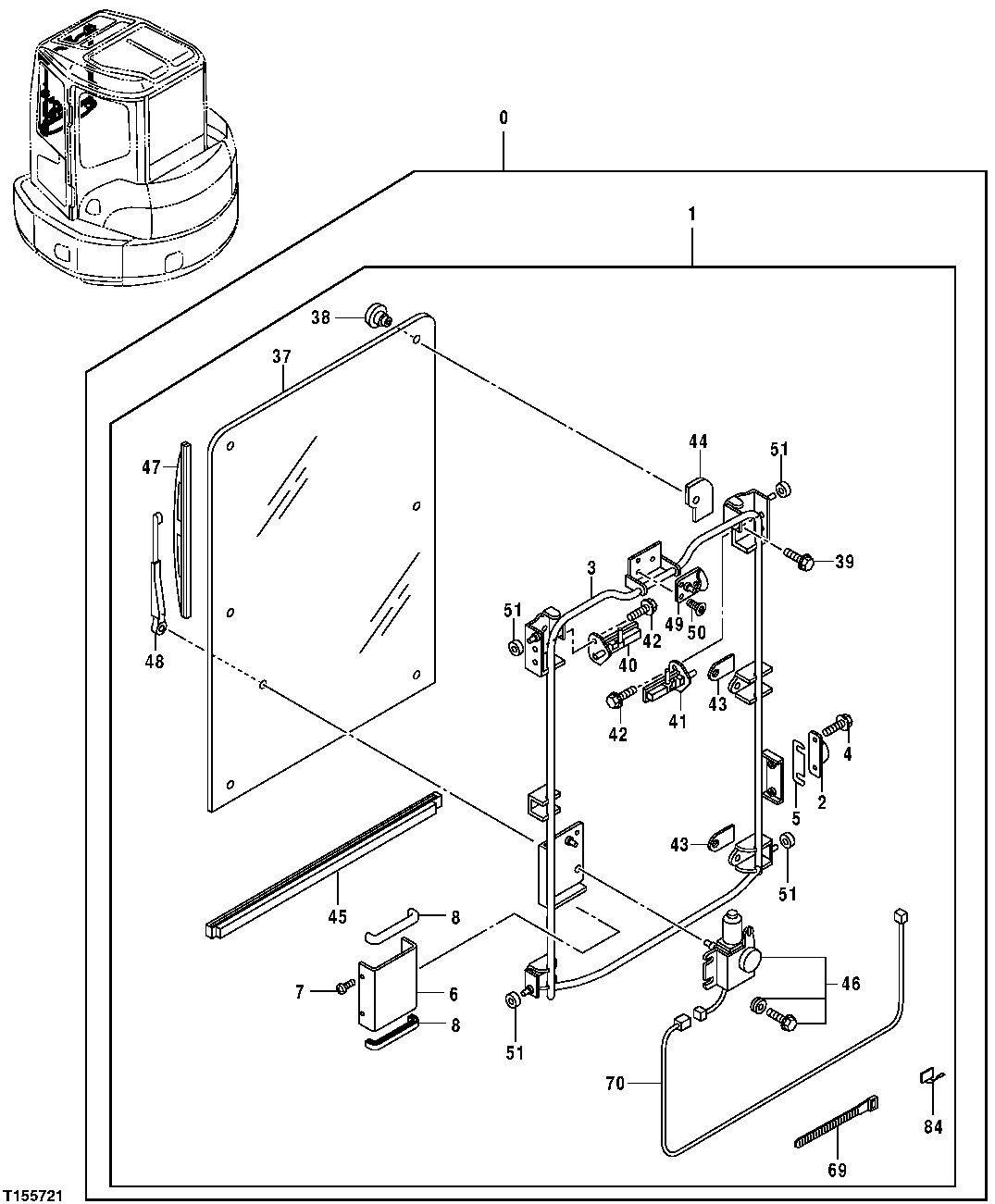

Запчасти John Deere 5C ZTS 81 - CAB COMPONENTS (WINDSHIELD AND WIPER) 1813 Body Sides, Doors, Shields And Glazing

0

9203820

Cab

(SUB FOR 4454007)(CONTAINS ALL ITEMS ON THIS PAGE) (ADDITONAL COMPONENTS LI STED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

4424664

Window

1шт.

2

4424702

Stop

1шт.

3

Frame

(WINDOW SASH)

1шт.

4

19M9045

Screw

M6 X 16 (SUB FOR 4380970)

2шт.

5

4424744

Plate

4шт.

6

4482148

Cover

1шт.

7

4424766

Cap Screw

3шт.

8

4483985

Isolator

2шт.

37

4424681

Windowpane

1шт.

38

4424666

Nut

6шт.

39

4424757

Cap Screw

6шт.

40

4424682

Latch

1шт.

41

4424683

Latch

1шт.

42

4424757

Cap Screw

4шт.

43

4424684

Bumper

4шт.

44

4424685

Bumper

2шт.

45

4424686

Weatherstrip

1шт.

46

4424687

Wiper Motor

1шт.

47

4468279

Wiper Blade

(SUB FOR 4424688)

1шт.

48

4424689

Wiper Arm

1шт.

49

4424690

Striker

1шт.

50

19M7924

Screw

M8 X 16 (SUB FOR 4424758)

3шт.

51

4424701

Roller

4шт.

69

4424719

Tie Band

8шт.

70

4424720

Wiper Motor Wiring Harness

1шт.

84

4347049

Clip

1шт.
