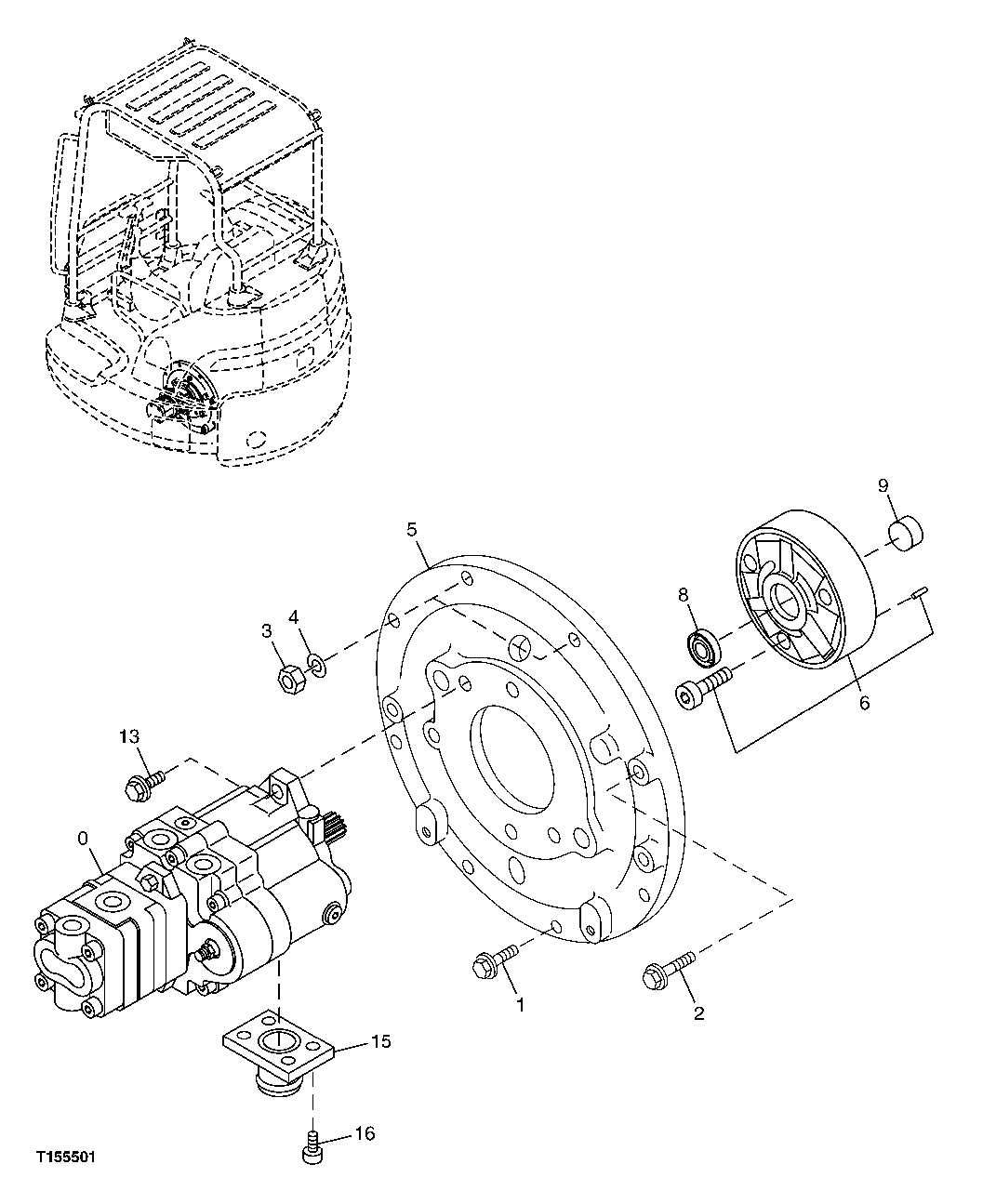

Запчасти John Deere 5C ZTS 106 - HYDRAULIC PUMP AND PUMP SUPPORT (COMPLETE) 2161 Hyd Pumps & Drives

0

4487108

Hydraulic Pump

(COMPONENTS ON ANOTHER PAGE)

1шт.

1

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

1шт.

2

J041045

Bolt

1шт.

3

14M7274

Nut

M10

2шт.

4

12M7066

Lock Washer

10 mm

2шт.

5

2047791

Cover

1шт.

6

4439571

Splined Coupling

1шт.

8

4245228

Seal

1шт.

9

A882030

Plug

1шт.

13

19M8011

Cap Screw

M12 X 30

2шт.

12M7058

Lock Washer

12 mm

2шт.

15

9750291

Line

(SUB FOR 9752265)

1шт.

16

19M8440

Screw

M10 X 25

4шт.
