123 - HEAVY DUTY BUCKET (12", 16") (BOBCAT STYLE)

Запчасти John Deere 5C ZTS 123 - HEAVY DUTY BUCKET (12", 16") (BOBCAT STYLE) 3302 Bucket With Teeth

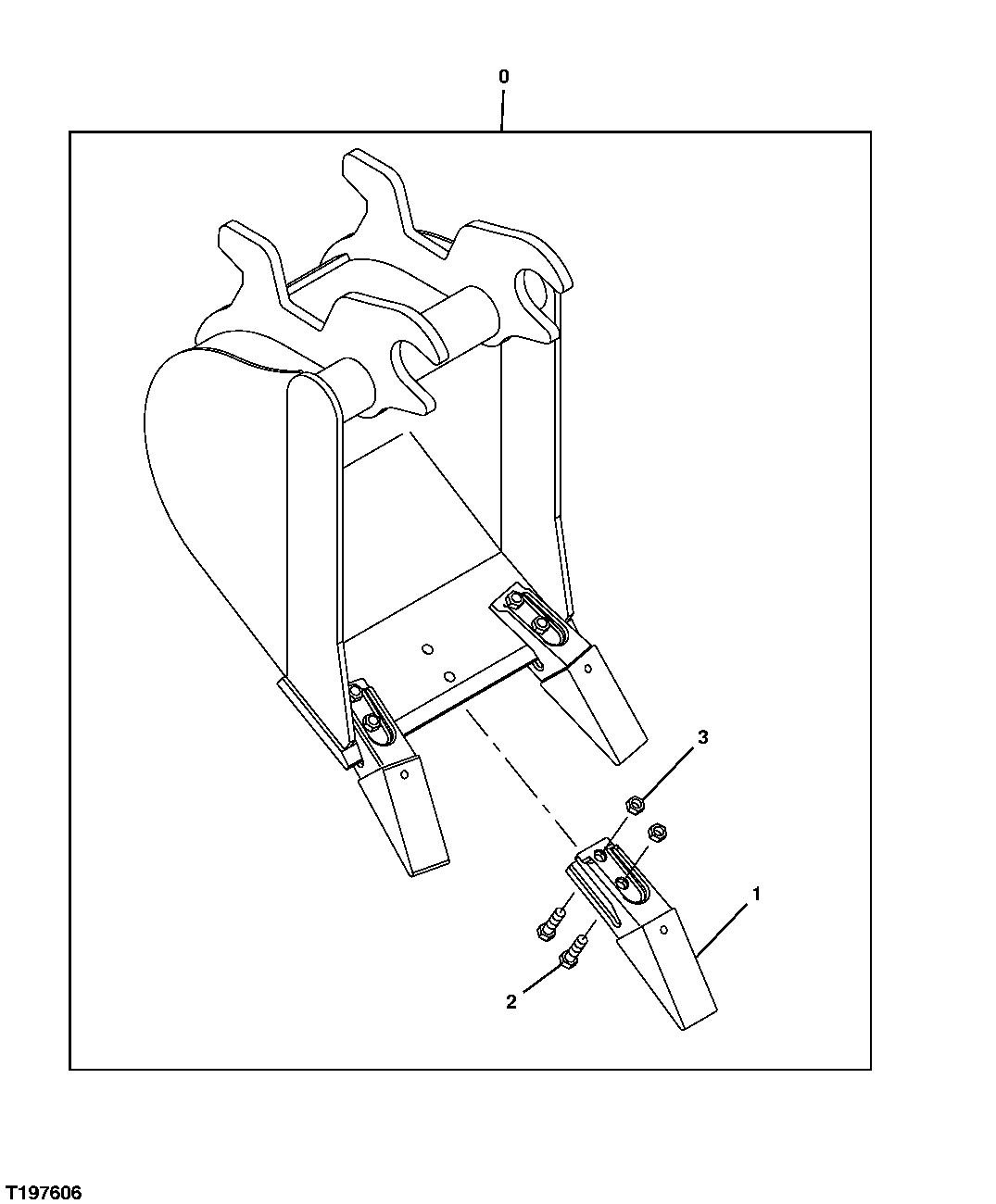

Схема запчастей John Deere 5C ZTS - 123 - HEAVY DUTY BUCKET (12", 16") (BOBCAT STYLE) 3302 Bucket With Teeth
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Excavator Bucket

(12 INCH/1.5 CUBIC FOOT) WHOLE GO ODS (SUB AT316552 ( AT308585 NLA))

1шт.

Excavator Bucket

(16 INCH/2.1 CUBIC FOOT) WHOLE GO ODS (SUB AT316553 ( AT308586 NLA))

1шт.

1

TX156

Tooth

(156 STD)

3шт.

Bucket Tooth Adapter

T116X156 NLA

1шт.

TP156

Spring Pin

1шт.

2

19H1777

Cap Screw

1/2" X 1-3/4"

6шт.

3

14H1040

Nut

1/2"

6шт.
