127 - HEAVY DUTY BUCKET (20", 24") (BOBCAT STYLE)

Запчасти John Deere 5C ZTS 127 - HEAVY DUTY BUCKET (20", 24") (BOBCAT STYLE) 3302 Bucket With Teeth

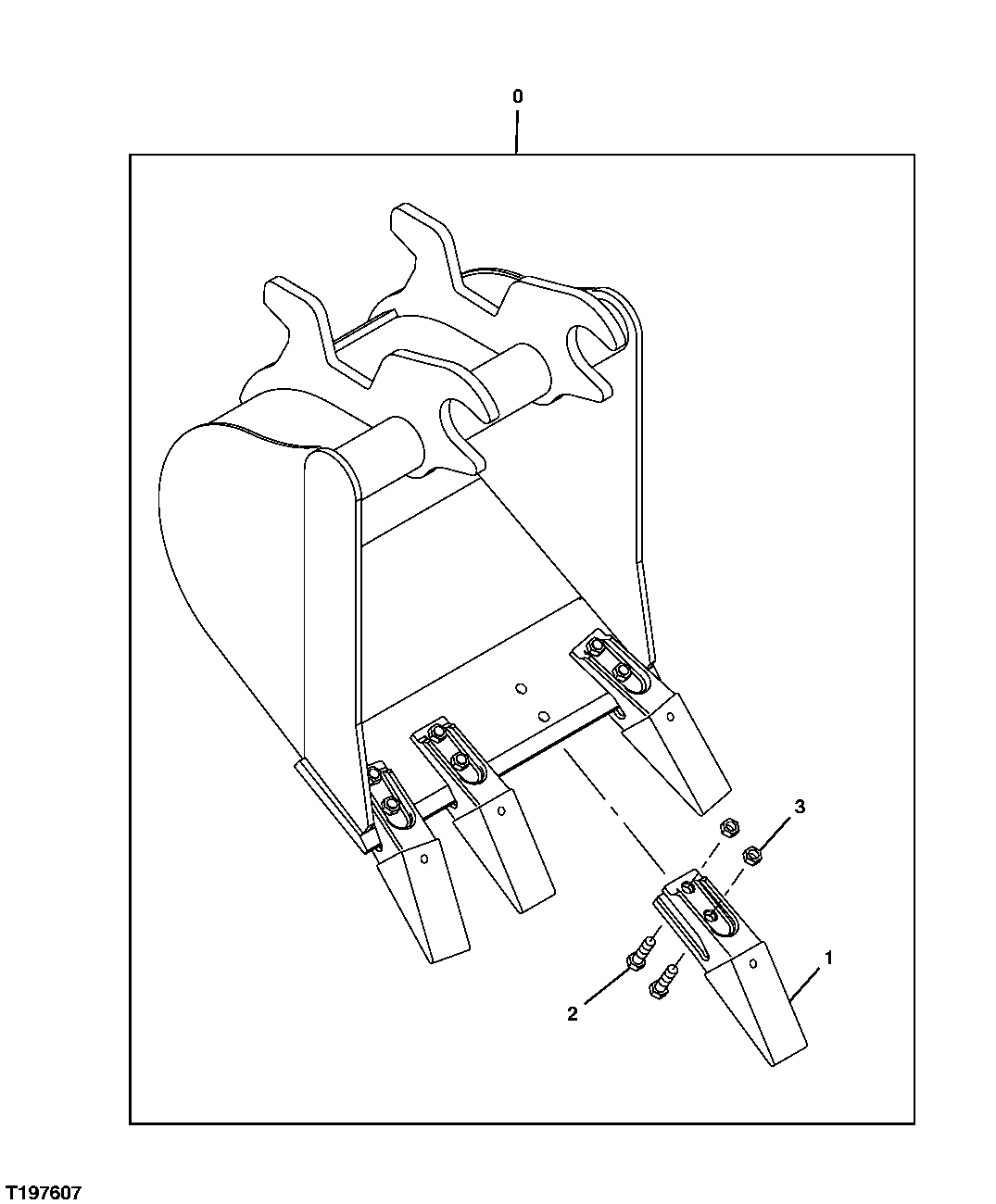

Схема запчастей John Deere 5C ZTS - 127 - HEAVY DUTY BUCKET (20", 24") (BOBCAT STYLE) 3302 Bucket With Teeth
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Excavator Bucket

(20 INCH, 2.8 CUBIC FOOT) WHOLE G OODS, AT308587 NLA (SUB AT316553)

1шт.

Excavator Bucket

(24 INCH, 3.4 CUBIC FOOT) WHOLE GOODS, AT308588 NLA SUB AT316554

1шт.

1

TX156

Tooth

(156 STD)

4шт.

Bucket Tooth Adapter

T206715 AND T116X156 NLA

1шт.

TP156

Spring Pin

1шт.

2

19H1777

Cap Screw

1/2" X 1-3/4"

8шт.

3

14H1040

Nut

1/2"

8шт.
