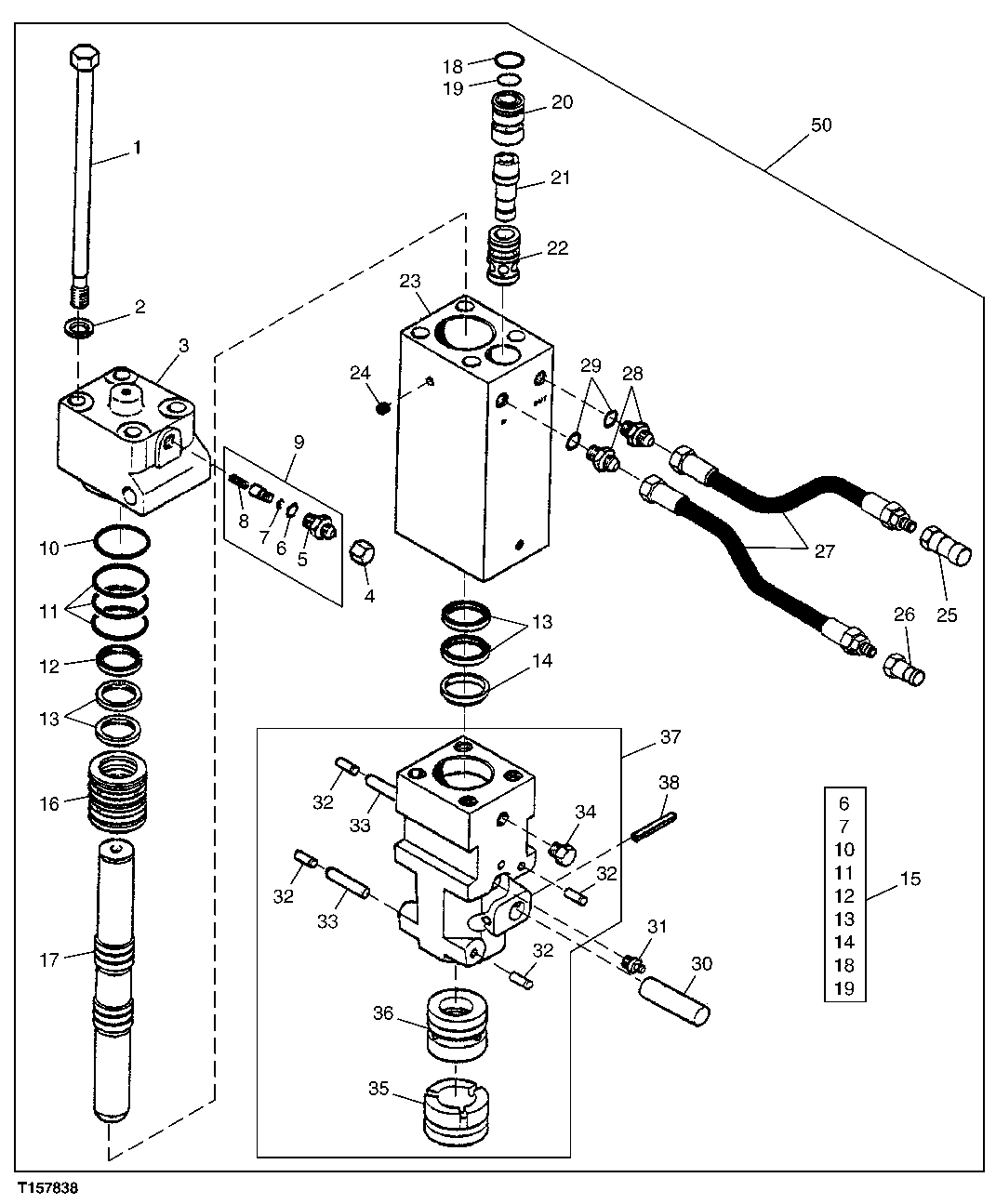

Запчасти John Deere 5C ZTS 140 - HYDRAULIC BREAKER COMPONENTS (HB15, HB30) 3302 Bucket With Teeth

1

KV17470

Rod

(HB15) INCLUDES KV17473

4шт.

KV17471

Rod

(HB30) INCLUDES KV17474

4шт.

2

Washer

KV17473 NLA (HB15) ORDER KV17470

4шт.

Washer

KV17474 NLA (HB30) ORDER KV17471

4шт.

3

Cap

(HB15) KV17447 NLA

1шт.

Cap

(HB30) KV17448 NLA

1шт.

4

KV17451

Cap

1шт.

5

Fitting

NLA

1шт.

6

KV18217

Ring

(A) (B) KV18217 NLA

1шт.

7

KV18216

Ring

(A) (B) KV18216 NLA

1шт.

8

Spring

NLA

1шт.

9

KV17450

Flow Control Hyd. Valve

1шт.

10

O-Ring

(A) (B) NLA

1шт.

11

O-Ring

(A) (B) NLA

3шт.

12

Packing

(A) (B) NLA

1шт.

13

Packing

(A) (B) NLA

4шт.

14

Seal

(A) (B) DUST NLA

1шт.

15

KV17429

Seal Kit

INCLUDES PARTS MARKED (A) (HB15)

1шт.

KV17430

Seal Kit

INCLUDES PARTS MARKED (B) (HB30)

1шт.

16

KV17425

Cylinder Liner

(HB15)

1шт.

KV17426

Cylinder Liner

(HB30)

1шт.

17

KV17435

Piston

(HB15)

1шт.

KV17436

Piston

(HB30)

1шт.

18

KV17446

O-Ring

(A) (B)

1шт.

19

KV17444

O-Ring

(A) (B)

1шт.

20

KV17442

Flow Control Hyd. Valve

OUTER

1шт.

21

KV17439

Flow Control Hyd. Valve

1шт.

22

KV17441

Flow Control Hyd. Valve

INNER

1шт.

23

Cylinder Block

(HB15) KV17417 NLA

1шт.

Cylinder Block

(HB30) KV17418 NLA

1шт.

24

KV17434

Plug

1шт.

25

M131862

Hyd. Quick-Connect Coupler

FEMALE

1шт.

26

M131863

Hydr. Quick Coupler Plug

MALE

1шт.

27

KV17901

Hydraulic Hose

2шт.

28

R27237

Fitting

2шт.

29

R26375

O-Ring

2шт.

30

KV17479

Pin

(HB15)

1шт.

KV17480

Pin

(HB30)

1шт.

31

JD7759

Lubrication Fitting

1шт.

32

KV17468

Kingpin

4шт.

33

KV17465

Pin

(HB15)

2шт.

KV17466

Pin

(HB30)

2шт.

34

KV17456

Plug

1шт.

35

KV17460

Bushing

(HB15)

1шт.

KV17461

Bushing

(HB30)

1шт.

36

KV17457

Bushing

(HB15)

1шт.

KV17458

Bushing

(HB30)

1шт.

37

Cap

(HB15) KV17452 NLA

1шт.

Cap

(HB30) KV17453 NLA

1шт.

38

KV17482

Pin

1шт.

50

Kit

WHOLE GOODS, AT280181 NLA, HB15 H YDRAULIC BREAKER, CONTAINS PARTS O N ANOTHER PAGE ALSO ORDER AT190489

1шт.

Kit

WHOLE GOODS, AT280182 NLA, HB30 H YDRAULIC BREAKER, CONTAINS PARTS O N ANOTHER PAGE ALSO ORDER AT190489

1шт.
