204 - ELECTRIC FOOT SWITCH FOR AUXILIARY CONTROL (ONE SOLENOID)

Запчасти John Deere 35D 204 - ELECTRIC FOOT SWITCH FOR AUXILIARY CONTROL (ONE SOLENOID) 3360 HYDRAULIC SYSTEM

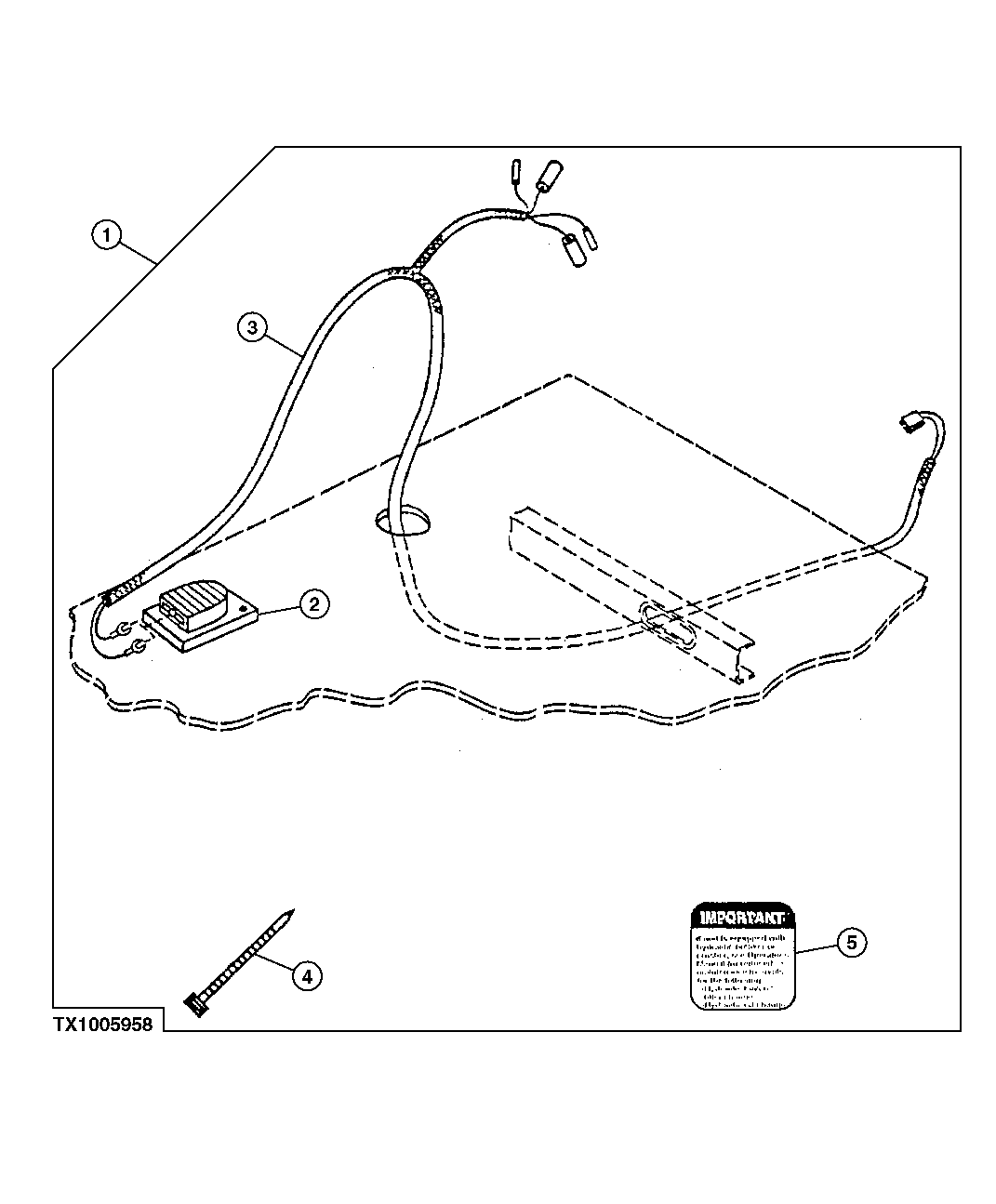

Схема запчастей John Deere 35D - 204 - ELECTRIC FOOT SWITCH FOR AUXILIARY CONTROL (ONE SOLENOID) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT196587

Switch

(WHOLE GOODS) (SUB FOR AT164896)

1шт.

2

AT82210

Switch

Electric Foot Control

1шт.

3

AT196588

Wiring Harness

1шт.

4

R44302

Tie Band

ARшт.

5

T149434

Label

Important Auxiliary Electric Control

1шт.

T222992

Label

Important French

1шт.

T222993

Label

Important Spanish

1шт.

Выбрано товаров: 7
