112 - HEAVY DUTY BUCKET (30")

Запчасти John Deere 5ZTS 112 - HEAVY DUTY BUCKET (30") 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

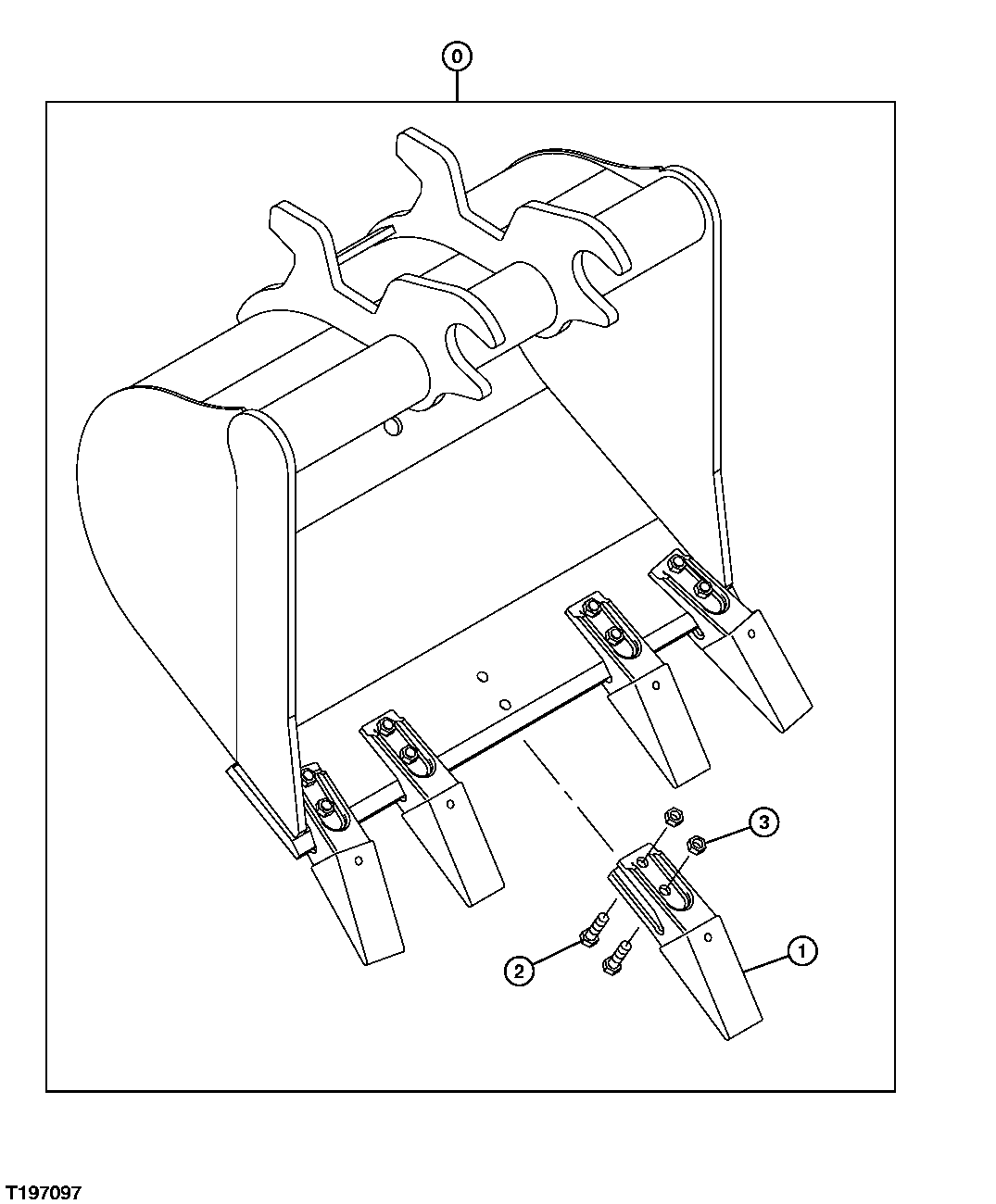

Схема запчастей John Deere 5ZTS - 112 - HEAVY DUTY BUCKET (30") 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Excavator Bucket

30" 5.2 CU. FT., WHOLEGOODS AT308594 NO LONGER AVAILABLE, FURNISH AT316559

1шт.

1

TX156

Tooth

156 STANDARD

5шт.

Bucket Tooth Adapter

T206715 AND T116X156 NLA

1шт.

TP156

Spring Pin

1шт.

2

19H1777

Cap Screw

1/2" X 1-3/4"

10шт.

3

14H1040

Nut

1/2"

10шт.
