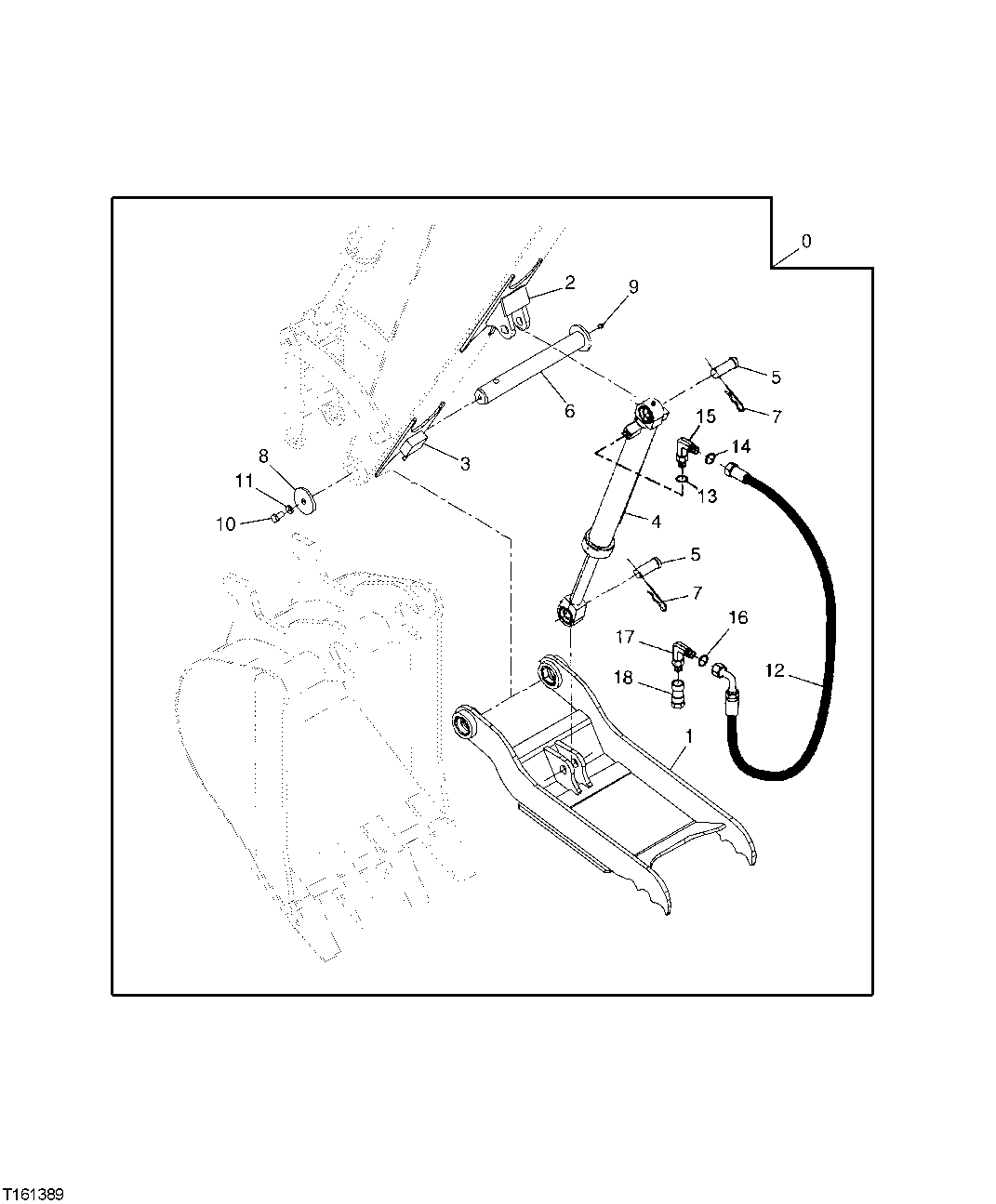

Запчасти John Deere 5ZTS 118 - HYDRAULIC BUCKET CLAMP 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

0

Clamp

WHOLEGOODS (HYDRAILIC BUCKET) ( AT1892 38 NO LONGER AVAILABLE) (SUB AT280193)

1шт.

1

AT317614

Clamp

(SUB FOR AT191404 OR AT309146 )(COMPONENTS ON ANOTHER PAGE)

1шт.

2

T185261

Plate

1шт.

3

T185262

Plate

1шт.

4

AH216639

Hydraulic Cylinder

(ALSO ORDER 38H1309 AND AT3221 65 ) (SUB FOR AT191402 OR AT309 145)(COMPONENTS ON ANOTHER PAGE )

1шт.

5

T185222

Pin

2шт.

6

T185276

Pin

1шт.

7

AT260407

Spring Locking Pin

2шт.

8

L77320

Washer

1шт.

9

AT260410

Lubrication Fitting

1шт.

10

19H2472

Cap Screw

1/2" X 1"

1шт.

11

12H301

Lock Washer

1/2"

1шт.

12

AT191412

Hydraulic Hose

2шт.

13

R28782

O-Ring

2шт.

14

T77613

O-Ring

2шт.

15

38H1435

Elbow Fitting

2шт.

16

T77857

O-Ring

2шт.

17

X8-8CLO-S

Elbow Fitting

2шт.

18

M131862

Hyd. Quick-Connect Coupler

FEMALE

1шт.

M131863

Hydr. Quick Coupler Plug

MALE

1шт.
