192 - HYDRAULIC SUCTION TUBES AND HOSES

Запчасти John Deere 50CLC 192 - HYDRAULIC SUCTION TUBES AND HOSES 2160 VEHICLE HYDRAULICS

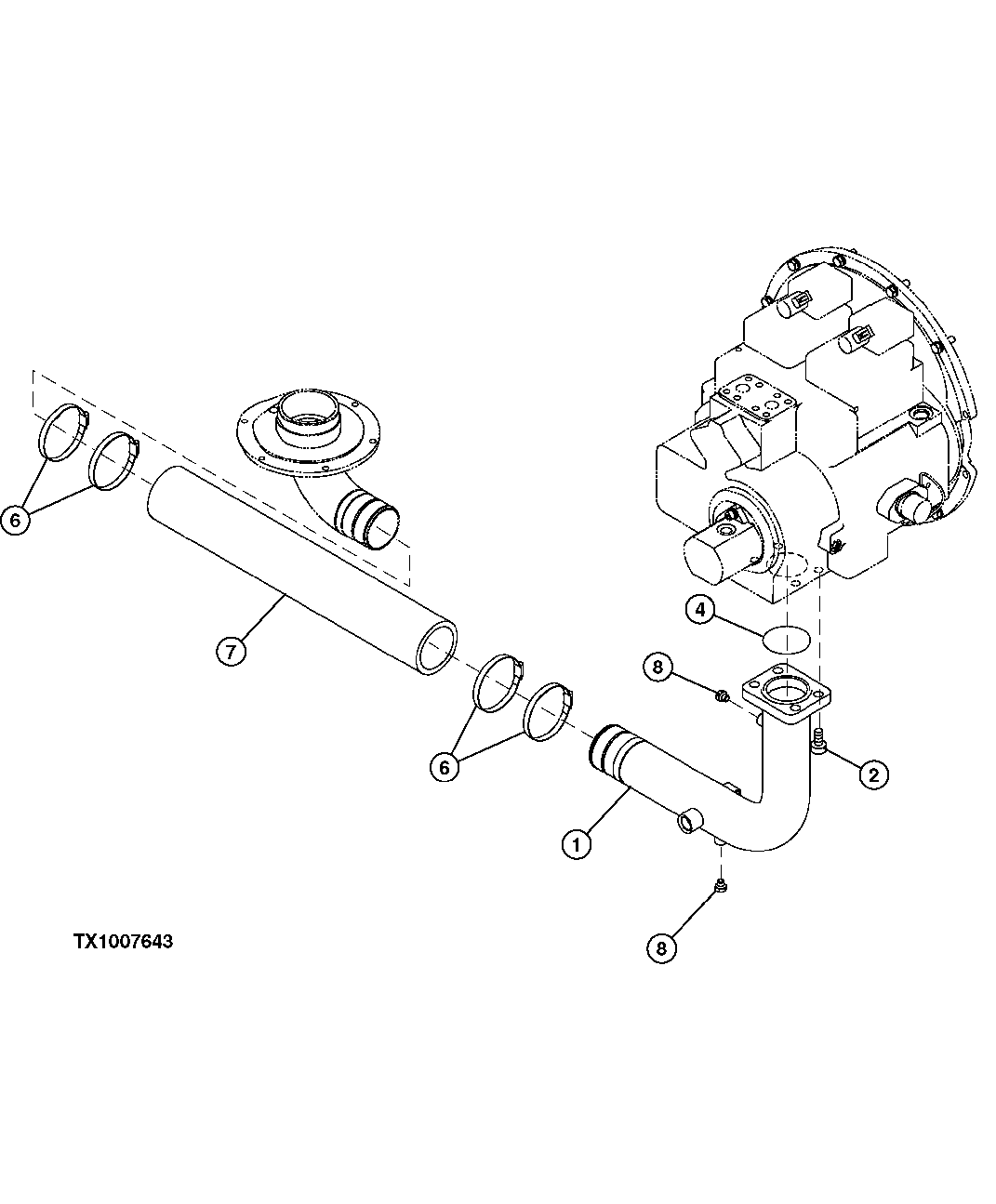

Схема запчастей John Deere 50CLC - 192 - HYDRAULIC SUCTION TUBES AND HOSES 2160 VEHICLE HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

7040694

Line

(SUB FOR TH7040694)

1шт.

2

19M8490

Screw

M16 X 40

4шт.

4

4153544

O-Ring

(SUB FOR AT202091)

1шт.

6

AT56658

Hose Clamp

4шт.

7

4436321

Hose

(SUB FOR TH4436321)

1шт.

8

A885002

Plug

(INCLUDES M800650 ) (SUB FOR THA885002)

2шт.

M800650

Packing

2шт.
