73 - Radiator, Hoses, and Supports

Запчасти John Deere 50LC 73 - Radiator, Hoses, and Supports 0510 Engine Cooling Systems

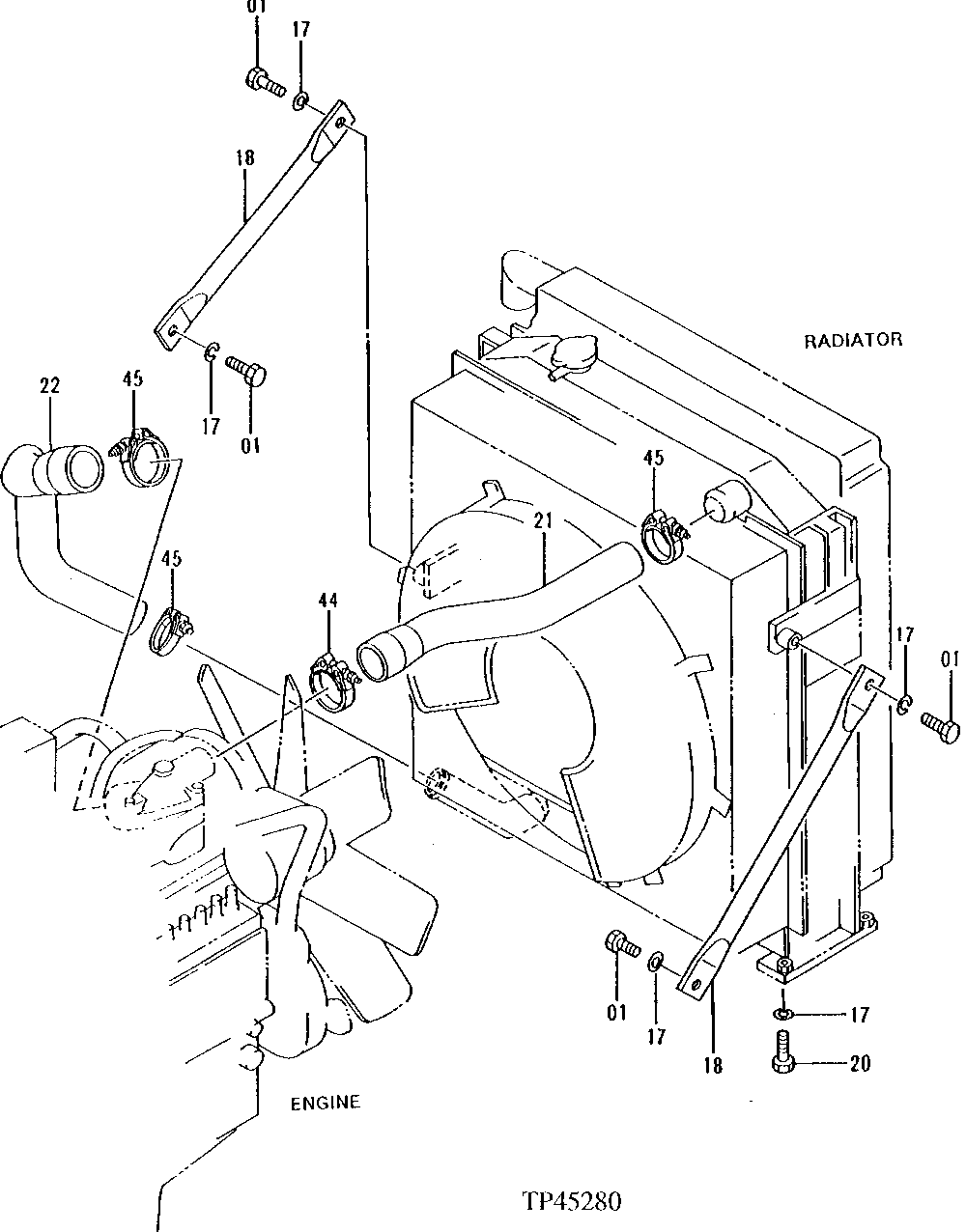

Схема запчастей John Deere 50LC - 73 - Radiator, Hoses, and Supports 0510 Engine Cooling Systems
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19M8035

Cap Screw

M16 X 35

4шт.

17

12H294

Lock Washer

5/8"

8шт.

18

8075503

Stop

(SUB FOR AT131802) (SUB FOR AT184715)

2шт.

20

19M7489

Cap Screw

M16 X 45

4шт.

21

AT202178

Radiator Hose

Coolant

1шт.

22

AT202179

Radiator Hose

Coolant

1шт.

44

AT39141

Hose Clamp

1шт.

45

AT43291

Hose Clamp

3шт.
