155 - Air Conditioner Controls

Запчасти John Deere 50LC 155 - Air Conditioner Controls 1830 Heating & Air Conditioning

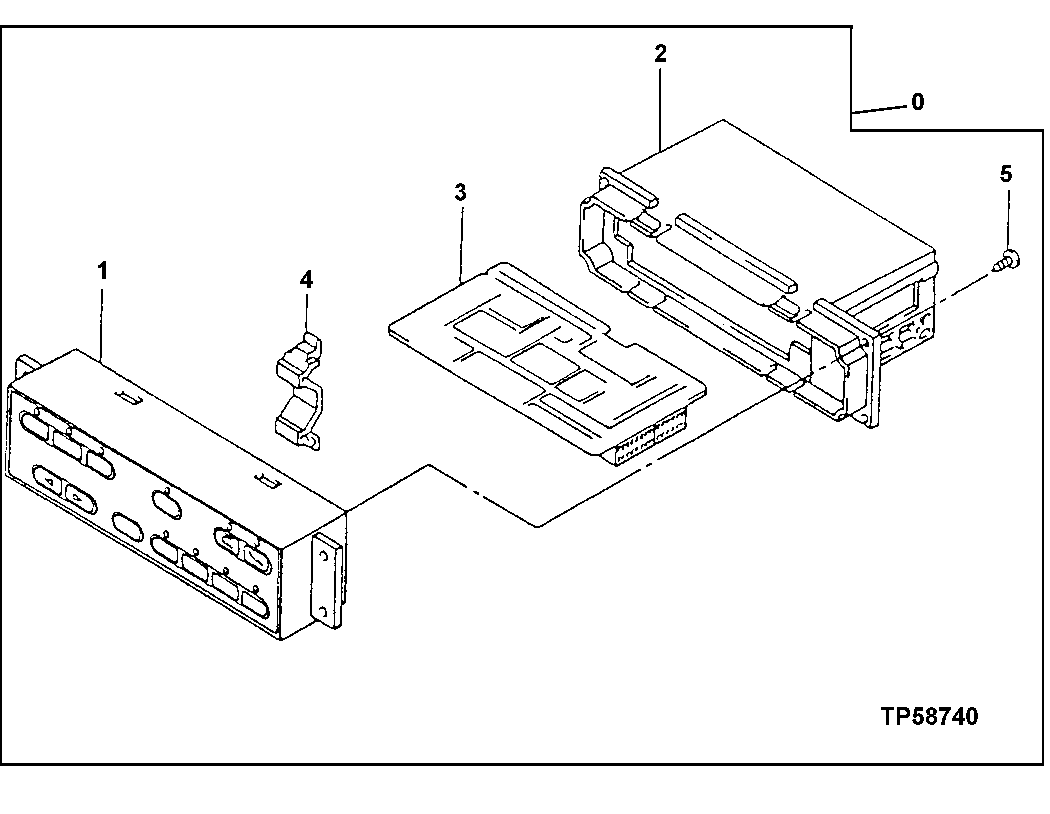

Схема запчастей John Deere 50LC - 155 - Air Conditioner Controls 1830 Heating & Air Conditioning
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4405812

Control

(SUB FOR AT215530, THIS APP LICATION) (SUB FOR AT186244)

1шт.

1

4429810

Case

(SUB FOR AT189088, THIS APP LICATION) (SUB FOR AT187307)

1шт.

2

4382807

Housing

(SUB FOR AT218138)

1шт.

3

4405812

Control

(SUB FOR AT180988, THIS APPLICATI ON) (SUB FOR AT187308 AND 4429815)

1шт.

4

4382809

Retainer

(SUB FOR AT180990)

1шт.

5

4382810

Screw

(SUB FOR AT180992)

4шт.
