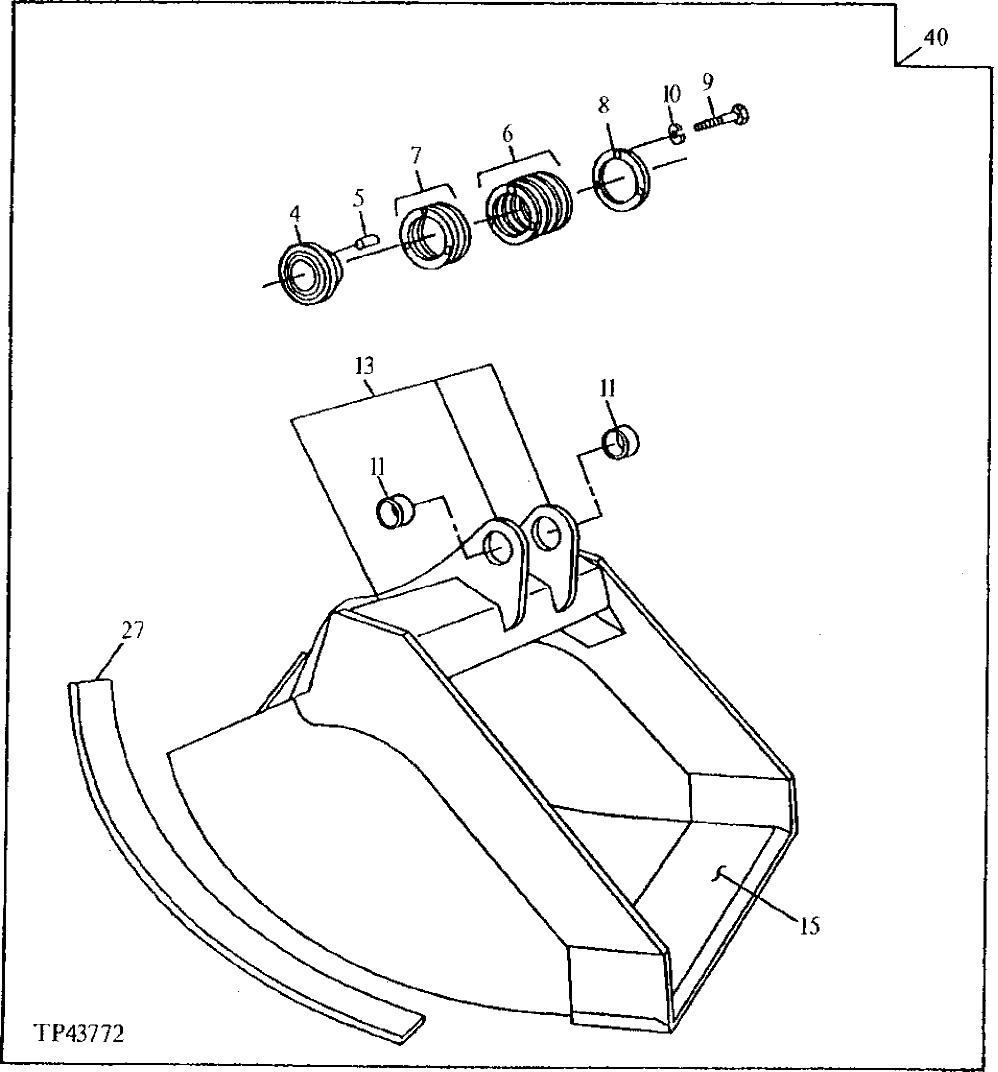

Запчасти John Deere 50LC 223 - Ditch Cleaning Bucket 3302 Bucket With Teeth

4

3038818

Boss

(SUB FOR AT131625)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

2шт.

6

AT131816

Washer

1.0 mm

7шт.

7

4207194

Shim

0.5 mm, (SUB FOR AT131815)

2шт.

8

AT131814

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

4шт.

10

12H294

Lock Washer

5/8"

4шт.

11

AT128461

Bushing

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

15

Cutting Edge

(MF AT131089 CTL) Bulk Material

1шт.

27

300292

Bar

(F) Wear Strip

4шт.

40

Excavator Bucket

84 in. - 2.40 yd³, ( AT160753 NLA)

1шт.
