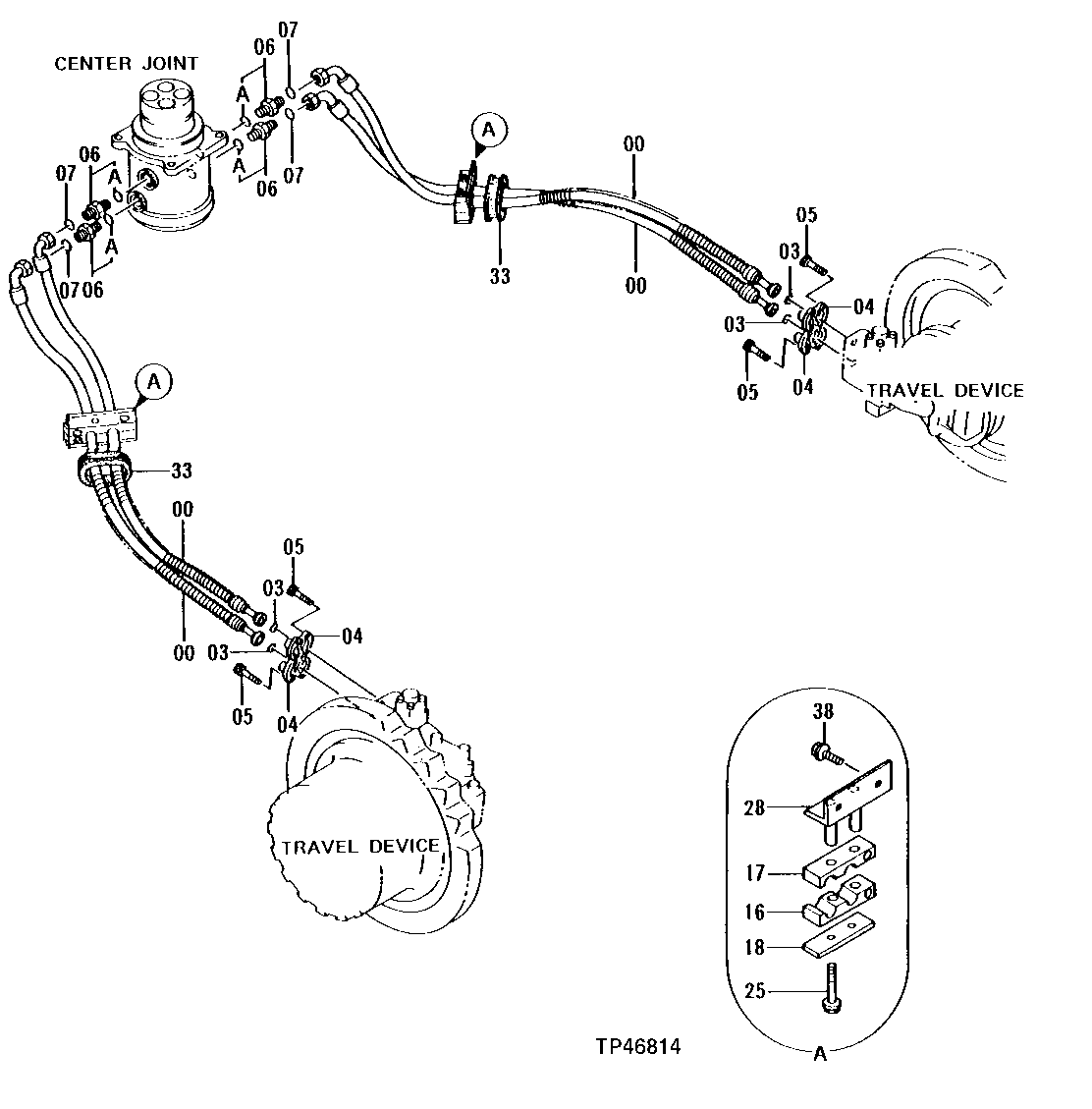

Запчасти John Deere 50LC 14 - Travel Hydraulic Lines 0260 Hydraulic System

0

4266423

Hydraulic Hose

(SUB FOR AT202181)

4шт.

3

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

4

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

5

19M8395

Screw

M12 X 40

16шт.

6

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

6A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

16

4339413

Hose Clamp

(SUB FOR AT201818)

2шт.

17

4267673

Hose Clamp

(SUB FOR AT201725)

2шт.

18

4268908

Strap

(SUB FOR AT201727)

2шт.

25

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

28

8061456

Bracket

(SUB FOR AT202373)

2шт.

33

4343768

Grommet

(SUB FOR AT202351)

2шт.

38

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

19M8011

Cap Screw

M12 X 30

4шт.
