283 - FLOW CONTROL VALVE PILOT PIPINGS

Запчасти John Deere 50LC 283 - FLOW CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings

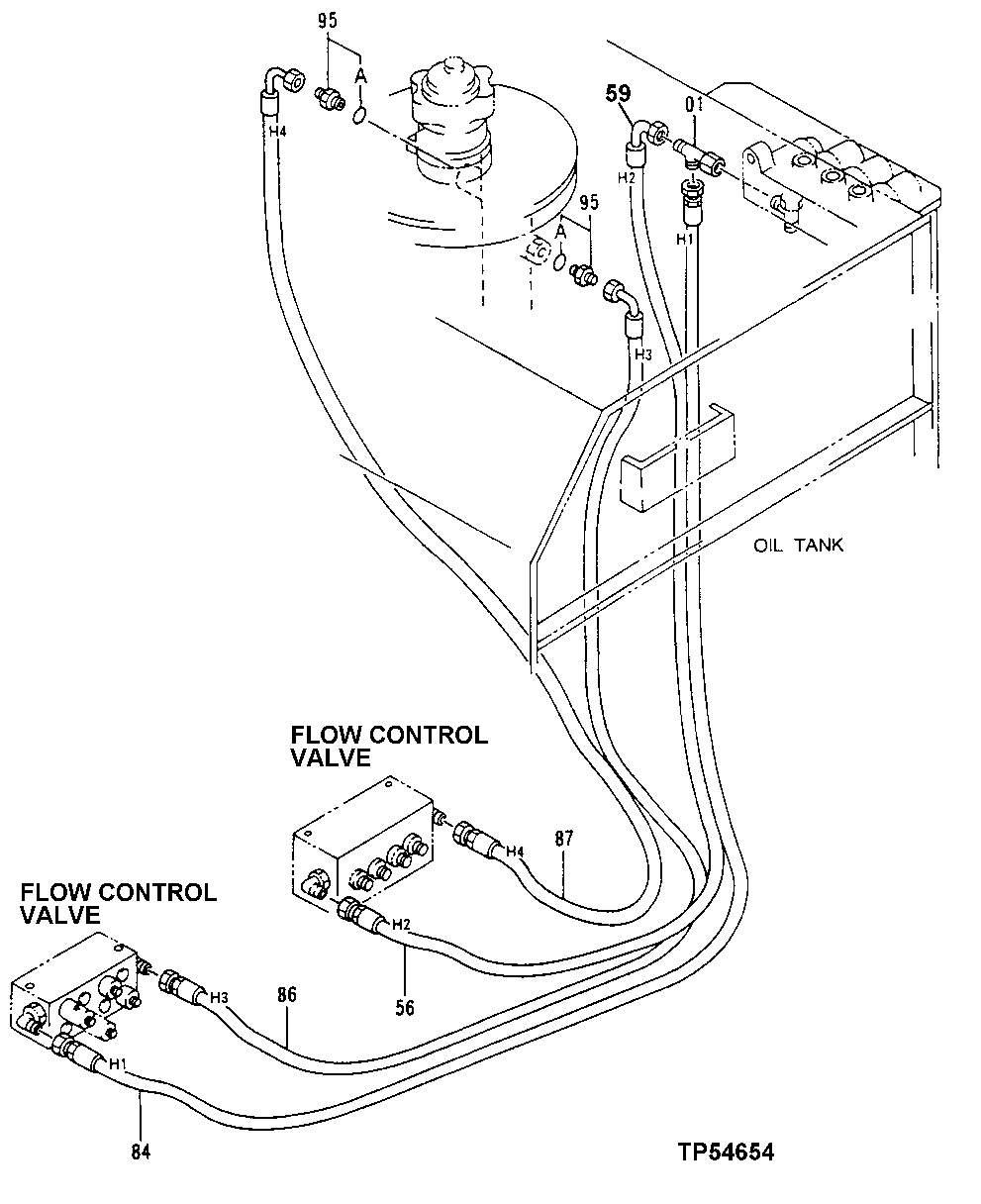

Схема запчастей John Deere 50LC - 283 - FLOW CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

56

AR103791

Hose

9/16" X 1625 mm (64") X 9/16"

1шт.

59

AE24616

Elbow Fitting

1шт.

84

AT216998

Hydraulic Hose

1шт.

86

AT216999

Hydraulic Hose

1шт.

87

AT217000

Hydraulic Hose

1шт.

95

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

95A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
