286 - FLOW CONTROL VALVE PILOT PIPINGS

Запчасти John Deere 50LC 286 - FLOW CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings

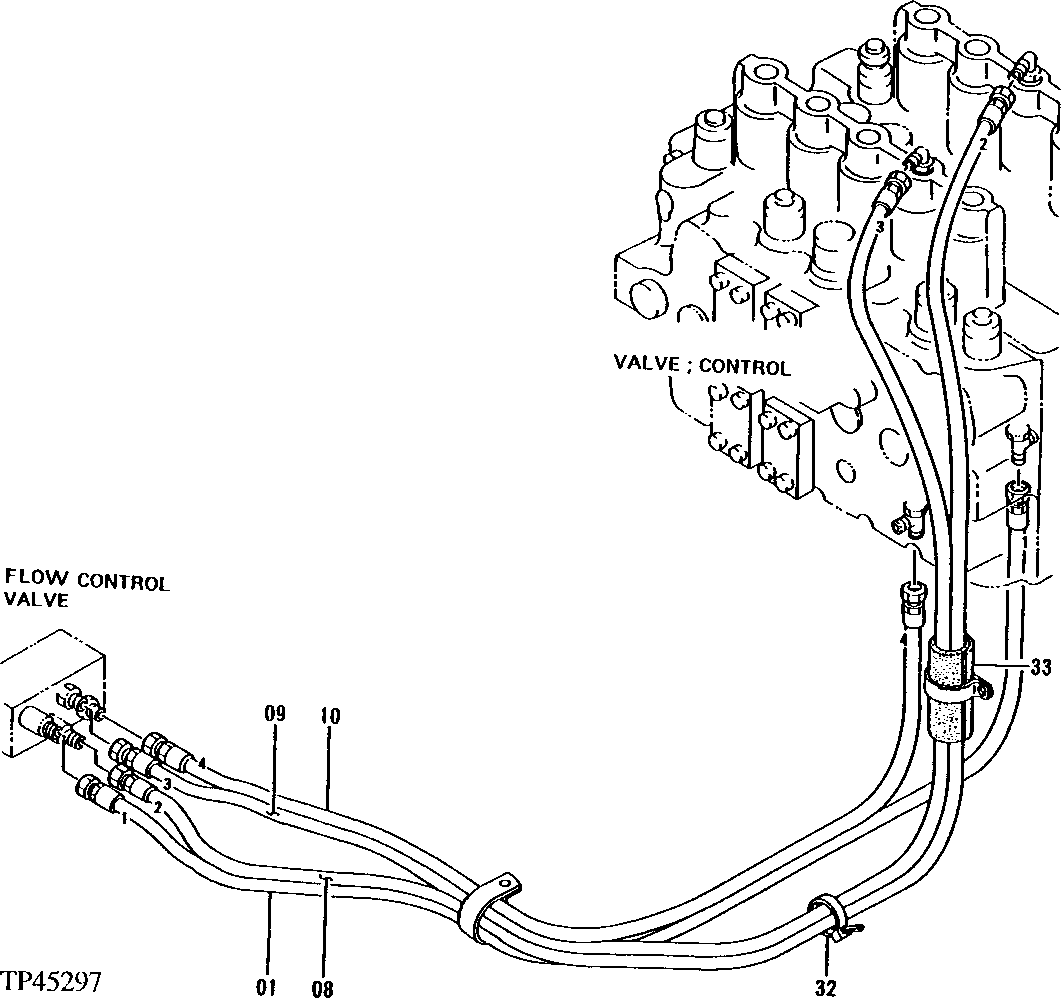

Схема запчастей John Deere 50LC - 286 - FLOW CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4366775

Hydraulic Hose

(SUB FOR AT217121)

1шт.

8

AT216980

Hydraulic Hose

1шт.

9

AT48441

Hydraulic Hose

9/16" X 2484 mm (97-3/4") X 9/16"

1шт.

10

4366778

Hydraulic Hose

(SUB FOR AT217122)

1шт.

32

H77698

Tie Band

ARшт.

33

4219918

Isolator

(SUB FOR TH111416)

1шт.

Выбрано товаров: 0
