288 - FLOW CONTROL VALVE PILOT PIPINGS

Запчасти John Deere 50LC 288 - FLOW CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings

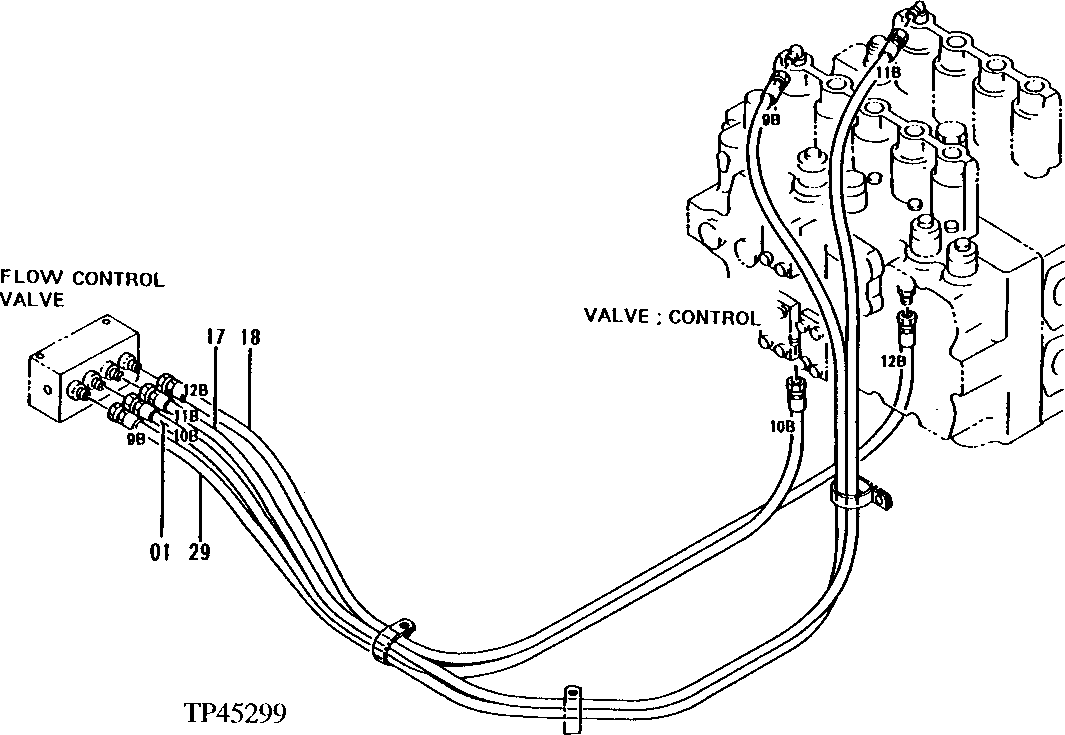

Схема запчастей John Deere 50LC - 288 - FLOW CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4203024

Hydraulic Hose

(SUB FOR TH108468)

1шт.

17

AH89075

Hydraulic Hose

9/16" X 2743 mm (108") X 9/16"

1шт.

18

AT201257

Hydraulic Hose

9/16" X 2050 mm (80-3/4") X 9/16"

1шт.

29

AH89075

Hydraulic Hose

9/16" X 2743 mm (108") X 9/16"

1шт.
