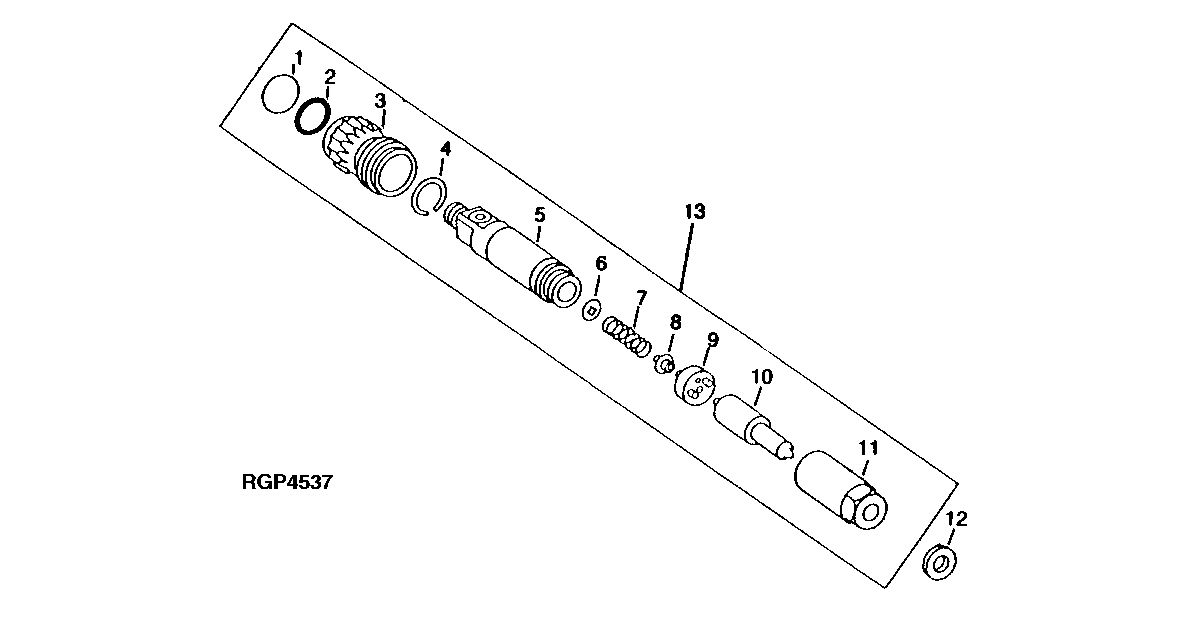

Запчасти John Deere 50LC 41 - Fuel Injection Nozzle 0413 Fuel Injection System 6101AT010 6101AT010

1

R60277

Snap Ring

1шт.

2

R375R

O-Ring

1шт.

3

R60279

Tube Nut

1шт.

4

R60278

Snap Ring

1шт.

5

Nozzle Holder

(3 ORANGE DOTS)

1шт.

6

R83720

Washer

1.02 mm (.0402 in.)

1шт.

R83721

Washer

1.08 mm (.0425 in.)

1шт.

R83722

Washer

1.12 mm (.0441 in.)

1шт.

R83723

Washer

1.18 mm (.0465 in.)

1шт.

R83724

Washer

1.22 mm (.0480 in.)

1шт.

R83725

Washer

1.28 mm (.0504 in.)

1шт.

R83726

Washer

1.30 mm (.0512 in.)

1шт.

R83727

Washer

1.38 mm (.0543 in.)

1шт.

R83728

Washer

1.42 mm (.0559 in.)

1шт.

R83729

Washer

1.48 mm (.0583 in.)

1шт.

R83730

Washer

1.50 mm (.0591 in.)

1шт.

R83731

Washer

1.58 mm (.0622 in.)

1шт.

R83732

Washer

1.60 mm (.0630 in.)

1шт.

R83733

Washer

1.68 mm (.0661 in.)

1шт.

R83734

Washer

1.70 mm (.0669 in.)

1шт.

R83735

Washer

1.78 mm (.0701 in.)

1шт.

R83736

Washer

1.82 mm (.0717 in.)

1шт.

R83737

Washer

1.88 mm (.0740 in.)

1шт.

R83738

Washer

1.90 mm (.0748 in.)

1шт.

R83739

Washer

1.98 mm (.0780 in.)

1шт.

7

R108699

Spring

1шт.

8

R108700

Seat

1шт.

9

R108701

Plate

(SUB FOR R121838)

1шт.

10

RE64392

Injection Nozzle

7 X 0.22, (MARKED 611)

1шт.

11

R127181

Nut

1шт.

12

R84472

Washer

1шт.

13

RE65467

Nozzle Holder

(BOSCH 0432131723) (ALSO ORDER R84472)

6шт.

SE500186

Injection Nozzle Reman

(PKG OF 6) NLA (ALSO ORDER (6 ) R84472) (REMAN FOR RE65467)

1шт.

SE501127

Injection Nozzle Reman

PKG OF 1 (REMAN FOR RE65 467) (ALSO ORDER R84472)

6шт.
