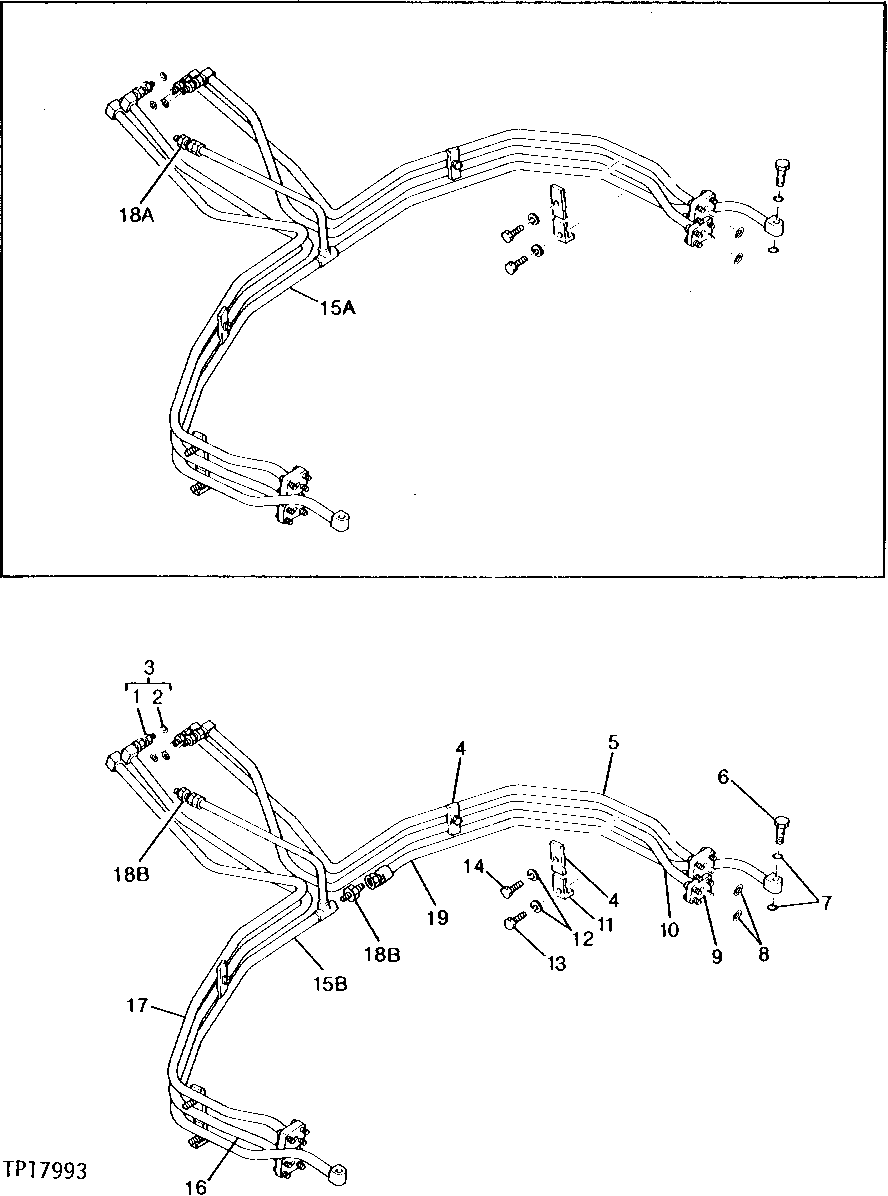

Запчасти John Deere 90 6 - TRAVEL PIPING 260 - AXLES AND SUSPENSION SYSTEMS 2

1

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303) (SUB FOR TH101294, ALONG WITH U46489)

1шт.

2

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

3

ADAPTER FITTING

( TH101294 NO LONGER AVAILABLE) (SUB TH100960, ALONG WITH U46489)

4шт.

4

4053593

CLAMP

(SUB FOR TH100969)

4шт.

5

7013029

OIL LINE

(SUB FOR TH101297)

1шт.

6

4109416

FITTING

(SUB FOR TH101304)

2шт.

7

CH14634

O-RING

(SUB FOR TH101305)

4шт.

8

A811030

O-RING

(SUB FOR TH101300)

4шт.

9

M341032

SCREW

(SUB FOR TH101301)

16шт.

10

7013030

OIL LINE

(SUB FOR TH101296)

1шт.

11

4138227

CLAMP

(SUB FOR TH101062)

2шт.

12

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

6шт.

13

19M7358

CAP SCREW

M10 X 40

2шт.

14

19M7572

CAP SCREW

M10 X 45

4шт.

15A

94-1302

ADAPTER FITTING

(SUB FOR TH101303)

1шт.

15B

7017746

OIL LINE

(SUB FOR TH107028)

1шт.

16

7013027

TUBE

(SUB FOR TH101298)

1шт.

17

7013028

OIL LINE

(SUB FOR TH101299)

1шт.

18A

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

18B

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

2шт.

19

8037455

OIL LINE

(SUB FOR TH107029)

1шт.
