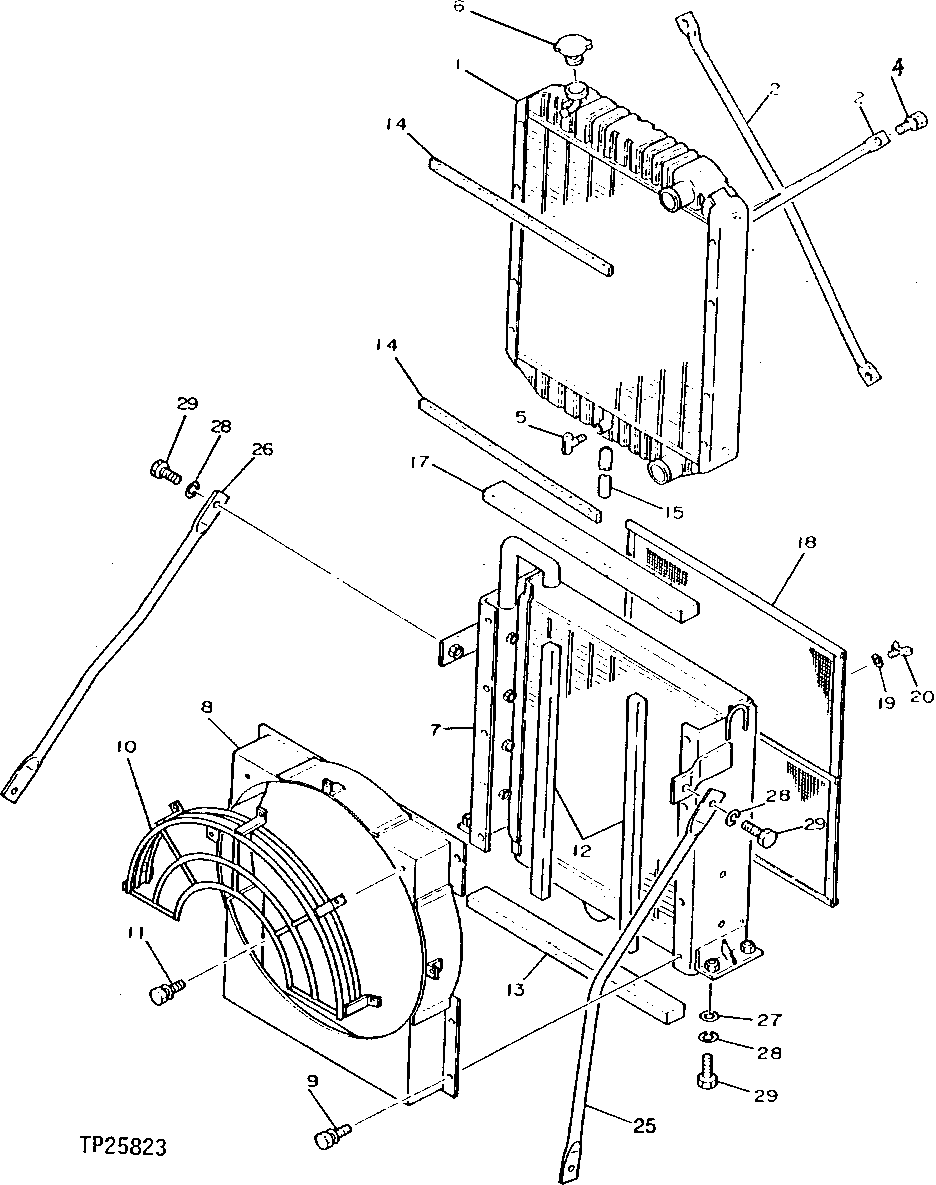

Запчасти John Deere 90D 2 - RADIATOR, OIL COOLER AND SHROUD 510 - ENGINE AUXILIARY SYSTEMS 5

1

4208057

RADIATOR

(SUB FOR TH108221)

1шт.

2

4206676

ROD

(SUB FOR TH108222)

2шт.

4

4206679

SCREW WITH WASHER

(SUB FOR TH108223)

4шт.

5

4148705

DRAIN PLUG

(SUB FOR TH100907) (SUB FOR TH109425)

1шт.

6

CAP

(SUB AT169085) (SUB FOR TH111864)

1шт.

AT169085

FILLER CAP

(SUB FOR TH111864)

1шт.

7

4208058

OIL COOLER

(SUB FOR TH108225)

1шт.

8

4208059

GUIDE

(SUB FOR TH108226)

1шт.

9

4206678

BOLT

(SUB FOR TH108227)

10шт.

10

4208060

GUARD

(SUB FOR TH108228)

1шт.

11

19M7932

CAP SCREW

M8 X 16, (SUB FOR TH108229, 4206128, AT202245 OR 4331649)

5шт.

12M7065

LOCK WASHER

8 MM

5шт.

12

4206672

PAD

(SUB FOR TH108230)

2шт.

13

4200220

PAD

(SUB FOR TH108231)

1шт.

14

4200221

PAD

(SUB FOR TH108232)

2шт.

15

HOSE

( TH108233 NO LONGER AVAILABLE) (CUT TO LENGTH FROM 1/2 INCH I.D. VINYL TUBING)

1шт.

17

4206671

PAD

(SUB FOR TH108234)

1шт.

18

4196945

SCREEN

(SUB FOR TH108235)

1шт.

19

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

20

21M1689

WING SCREW

M6 X 12

4шт.

25

4204723

STOP

(SUB FOR TH108238)

1шт.

26

4204724

STOP

(SUB FOR TH108239)

1шт.

27

4114405

WASHER

17 X 32 X 4.500 MM (0.669" X 1.260" X 0.177") (SUB FOR TH101105)

4шт.

28

12H294

LOCK WASHER

5/8"

8шт.

29

19M8035

CAP SCREW

M16 X 35

8шт.
