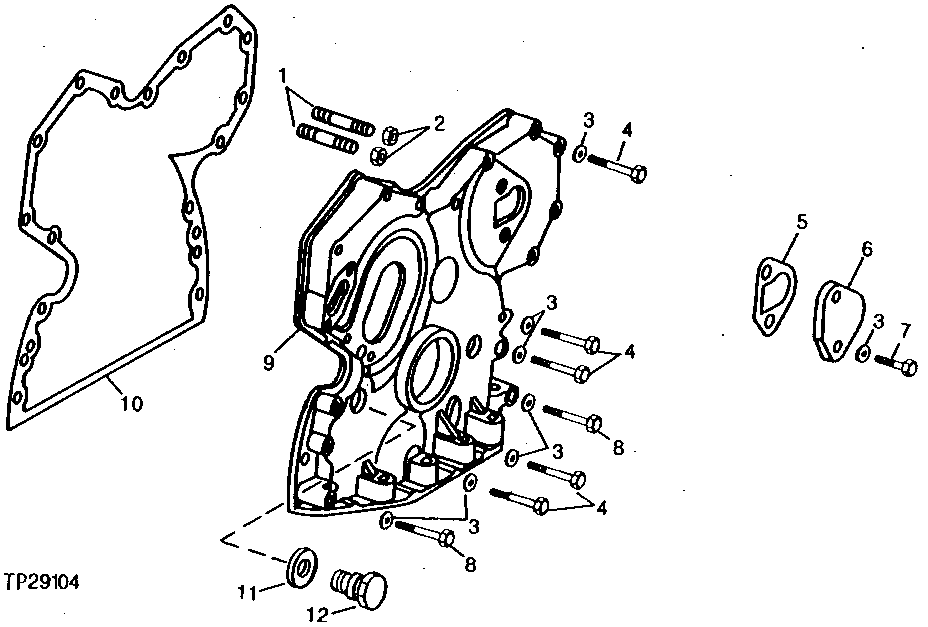

Запчасти John Deere 90D 5 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

(SUB FOR R122226)

2шт.

2

14H1076

NUT

3/8"

2шт.

24H1304

WASHER

13/32" X 23/32" X 0.120"

2шт.

3

24H1304

WASHER

13/32" X 23/32" X 0.120"

ARшт.

4

19H2549

CAP SCREW

3/8" X 1-7/8"

5шт.

19H2545

CAP SCREW

3/8" X 1-3/8"

5шт.

5

R125066

GASKET

(SUB FOR R78366 OR R97773)

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

R124277

CAP SCREW

(SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

9

RE39252

COVER

WITH INSERTS, (SUB FOR RE27895)

1шт.

10

R126513

GASKET

(SUB FOR T20155, R97454, R119269 OR R121314)

1шт.

11

A4827R

WASHER

1шт.

12

T27657

FITTING PLUG

1шт.
