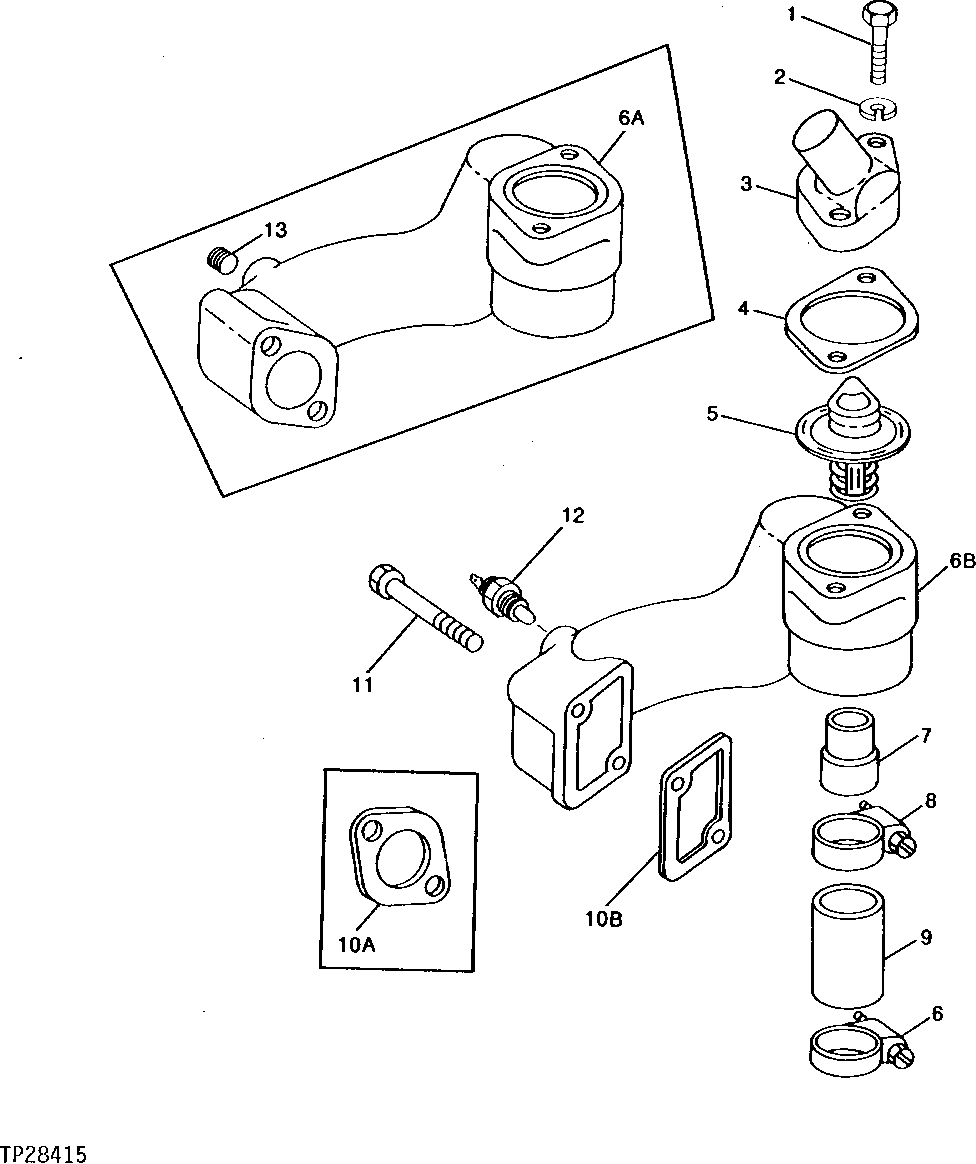

Запчасти John Deere 90D 2 - THERMOSTAT HOUSING AND COVER 418 - ENGINE 4

1

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

2

24M7096

WASHER

0.413" X 0.709" X 0.063"

2шт.

3

T20317

COVER

1шт.

4

T20215

GASKET

1шт.

5

AR48675

THERMOSTAT

82° C (180° F)

1шт.

6A

R89294

HOUSING

(MARKED R89294)

1шт.

6B

R92435

HOUSING

1шт.

7

R59050

TUBE

1шт.

8

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

9

R59052

HOSE

1шт.

10A

T20219

GASKET

1шт.

10B

R54641

GASKET

1шт.

11

19H2732

CAP SCREW

3/8" X 2-3/4"

2шт.

12H304

LOCK WASHER

3/8"

2шт.

12

AT105546

SWITCH

(SUB FOR AH76125)

1шт.

13

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

1шт.
