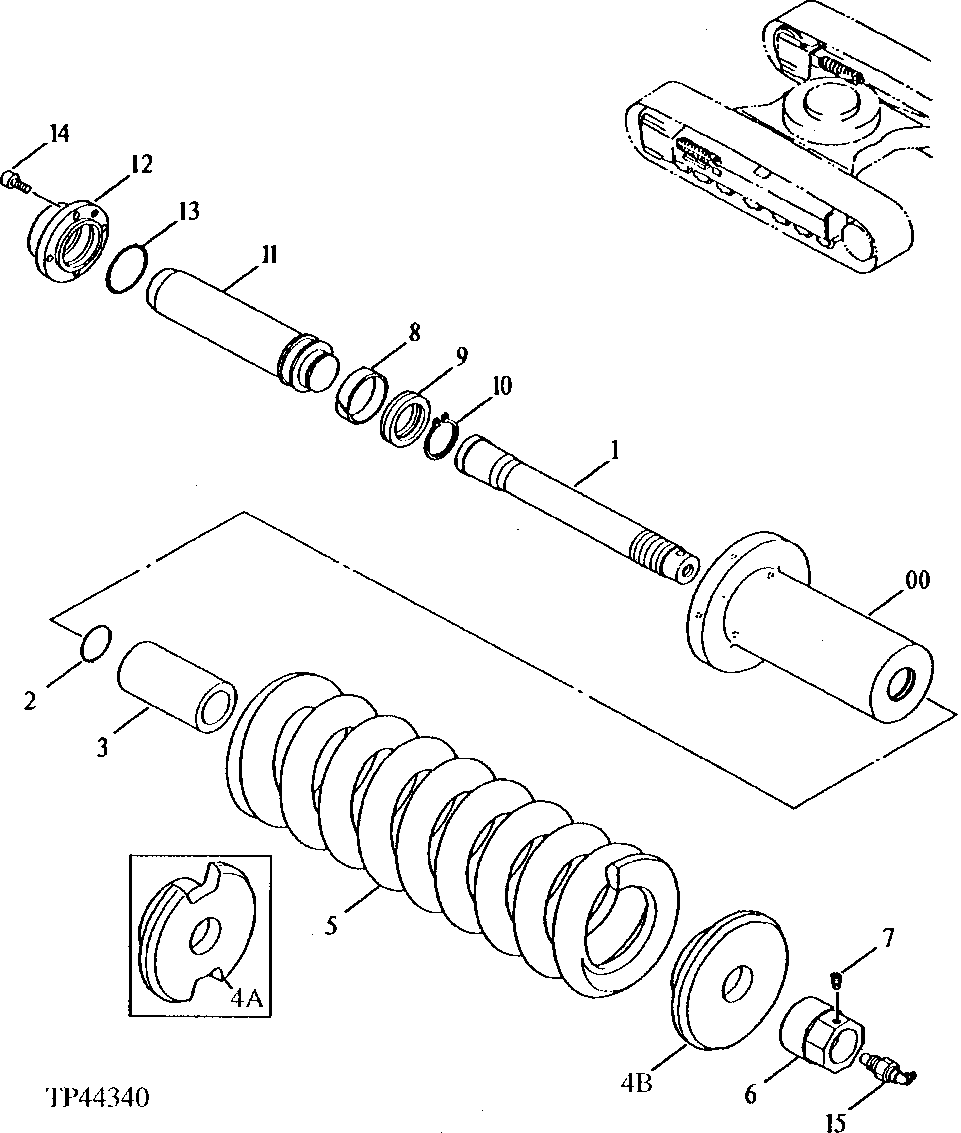

Запчасти John Deere 90E 2 - Adjuster 0130 Track Systems

0

3034933

Cylinder

(SUB FOR TH108861)

1шт.

1

3050431

Rod

(SUB FOR AT154104)

1шт.

2

992444

O-Ring

39.700 X 3.500 mm (1-9/16" X 0.1 38") (SUB FOR TH108863, 4509931)

1шт.

3

4255052

Bushing

(SUB FOR AT154222)

1шт.

4A

4186443

Bushing

(SUB FOR TH108865)

1шт.

4B

4321874

Bushing

(SUB FOR AT165705)

1шт.

5

3050436

Spring

(SUB FOR AT154106)

1шт.

6

4255050

Nut

(SUB FOR AT154221)

1шт.

7

4248106

Fitting Plug

(SUB FOR AT154185)

1шт.

8

TH108869

Wear Ring

1шт.

9

4179303

Packing

(SUB FOR TH108870)

1шт.

10

40M7047

Snap Ring

1шт.

11

3034935

Rod

(SUB FOR TH108872)

1шт.

12

3050434

Flange

(SUB FOR AT154105)

1шт.

13

CH15107

Packing

1шт.

14

19M8446

Screw

M8 X 20

4шт.

15

4255055

Valve

(SUB FOR AT154223)

1шт.
