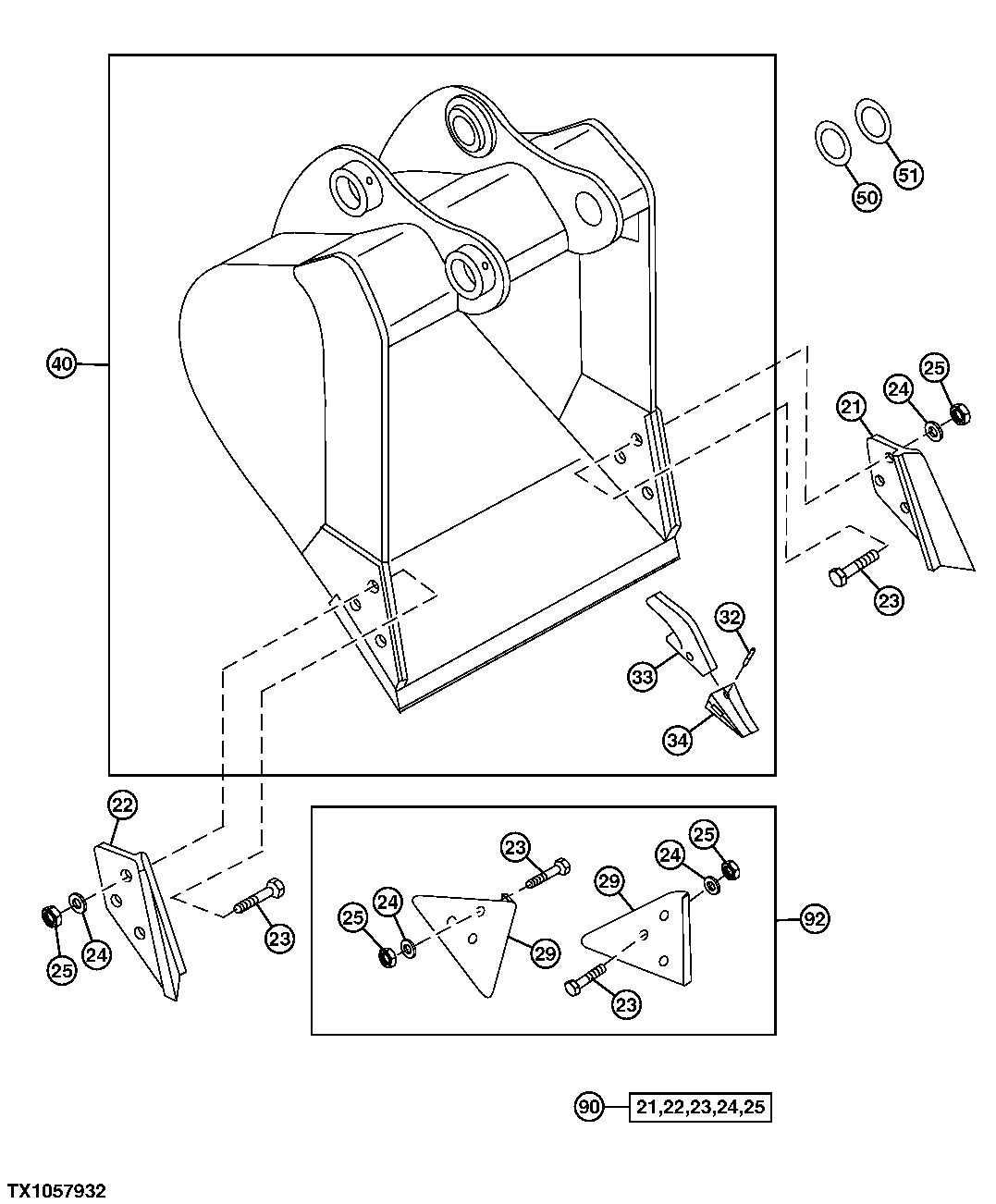

Запчасти John Deere 90E 196 - Heavy Duty Bucket Assembly 3302 Bucket With Teeth

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

12шт.

24

12H245

Lock Washer

7/8"

12шт.

25

14H1077

Nut

7/8"

12шт.

29

TPDE31329

Shroud

Wear

2шт.

32

TP160

Pin

ARшт.

33

T109X220

Bucket Tooth Adapter

ARшт.

34

TF220

Tooth

ARшт.

40

AT339031

Excavator Bucket

24in. .48yd³ , (SUB FOR AT33 2661) (WHOLEGOODS) (4 TEETH)

1шт.

AT339033

Excavator Bucket

30in. .65yd³ , (SUB FOR AT33 2662) (WHOLEGOODS) (4 TEETH)

1шт.

AT339035

Excavator Bucket

36in. .81yd³ , (SUB FOR AT33 2663) (WHOLEGOODS) (5 TEETH)

1шт.

50

T241931

Washer

70 X 110 X 1 mm (2.756" X 4.331" X 0.039")

ARшт.

51

T241938

Shim

5mm

ARшт.

90

AT342512

Kit

1шт.

92

AT342511

Kit

Edge Protector Kit

1шт.
