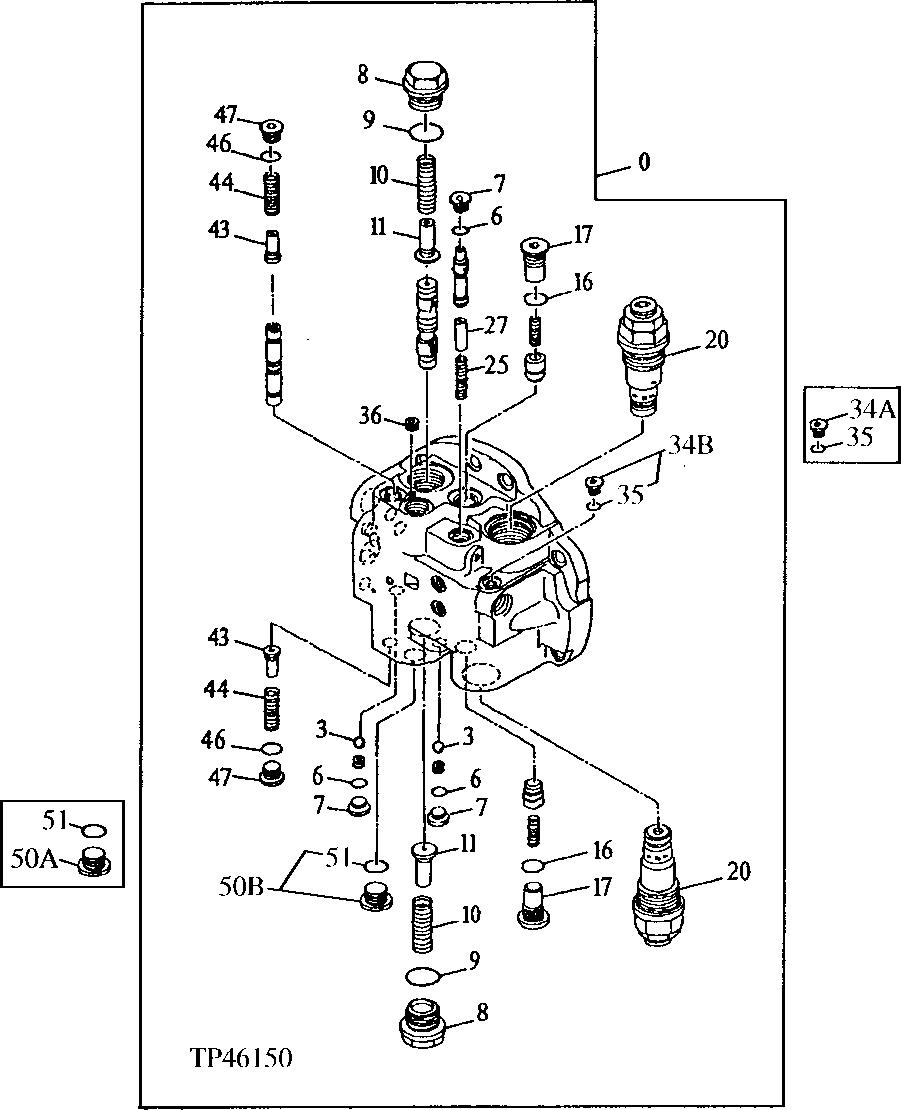

Запчасти John Deere 90E 13 - Brake Valve ( - 024999) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9116382

Flow Control Hyd. Valve

(SUB FOR AT158392) (SUB FOR AT159498) (CONTAINS ALL ITEMS ON THIS PAGE FOR AD DITIONAL COMPONENTS SEE FOLLOWING PAGE)

1шт.

3

R26552

Ball

7.938 mm (5/16")

2шт.

6

M800650

Packing

3шт.

7

4208977

Drain Plug

(SUB FOR TH111351)

3шт.

8

4229631

Drain Plug

(SUB FOR TH112085)

2шт.

9

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

10

4229522

Compression Spring

(SUB FOR AT154160)

2шт.

11

4229521

Stop

(SUB FOR AT154159)

2шт.

16

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

2шт.

17

4275049

Fitting

(SUB FOR AT154324)

2шт.

20

9115733

Valve

(SUB FOR AT158391, 9115734)

2шт.

25

4297257

Compression Spring

(SUB FOR AT154260) (SUB FOR AT159500)

1шт.

27

4281767

Stop

(SUB FOR AT154354)

1шт.

34A

0215220

Fitting Plug

(SUB FOR TH101485) (FOR USE ON THE FOL LOWING SERIAL NUMBERS: -020743, 020746, 020747, 020752-020983, 020985-024999)

1шт.

34B

9134109

Drain Plug

(SUB FOR AT203656) (FOR USE ON T HE FOLLOWING SERIAL NUMBERS: 0207 44-020745, 020748-020751, 020984)

1шт.

35

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.

36

15H560

Pipe Plug

1/16"

1шт.

43

4276372

Stop

(SUB FOR AT154328)

2шт.

44

4276449

Compression Spring

(SUB FOR AT154329)

2шт.

46

CH11570

O-Ring

2шт.

47

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

2шт.

50A

4217654

Drain Plug

(SUB FOR TH110470) (FOR USE ON THE FOL LOWING SERIAL NUMBERS: -020743, 020746, 020747, 020752-020983, 020985-024999)

1шт.

50B

9134112

Fitting Plug

(SUB FOR AT203657) (FOR USE ON T HE FOLLOWING SERIAL NUMBERS: 0207 44-020745, 020748-020751, 020984)

1шт.

51

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.
