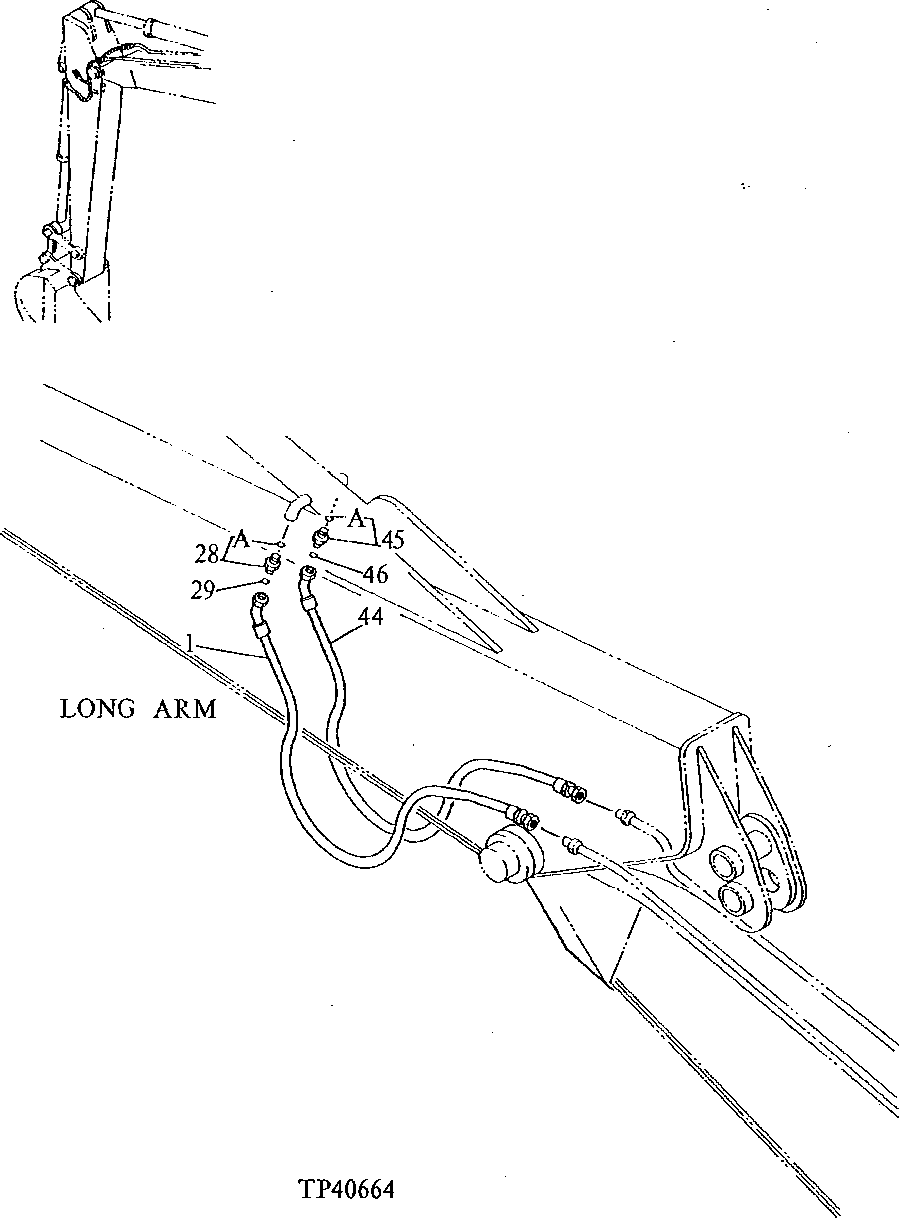

Запчасти John Deere 90E 240 - Arm High Flow Auxiliary Lines (3.01m) 3360 Hydraulic System

1

4359576

Hydraulic Hose

(SUB FOR AT158480, AT17 4905)(USE IF AVAILABLE)

1шт.

4359576

Hydraulic Hose

(SUB FOR AT158480, AT174905)

1шт.

28

4189602

Fitting

(SUB FOR TH108350)

1шт.

28A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

29

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

1шт.

44

AT174906

Hydraulic Hose

30.1752" X 1650 mm (65") X 30.1752" (SUB FOR AT158481)

1шт.

45

4197530

Adapter Fitting

(SUB FOR TH109595)

1шт.

45A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

46

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

50

AT176036

Arm

WHOLEGOODS (INCLUDES LONG ARM, BUCKET CYLINDER AND LINKAGE) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S)

1шт.
