36 - Engine Oil Filler Opening Cover ( - 426683)

Запчасти John Deere 90E 36 - Engine Oil Filler Opening Cover ( - 426683) 0407 Engine Oiling System 4045TT009 4045TT009

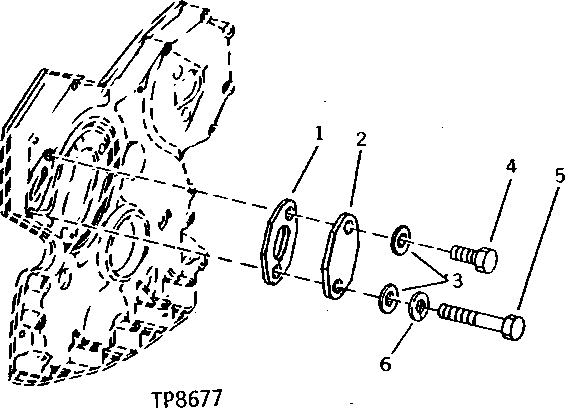

Схема запчастей John Deere 90E - 36 - Engine Oil Filler Opening Cover ( - 426683) 0407 Engine Oiling System 4045TT009 4045TT009
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R97352

Gasket

1шт.

2

T23260

Cover

1шт.

3

24H1304

Washer

13/32" X 23/32" X 0.120"

2шт.

4

R122618

Screw

(SUB FOR 19H2284, THIS APPLICATION)

1шт.

5

19H1819

Cap Screw

3/8" X 2-1/8"

1шт.

6

12H304

Lock Washer

3/8"

1шт.
