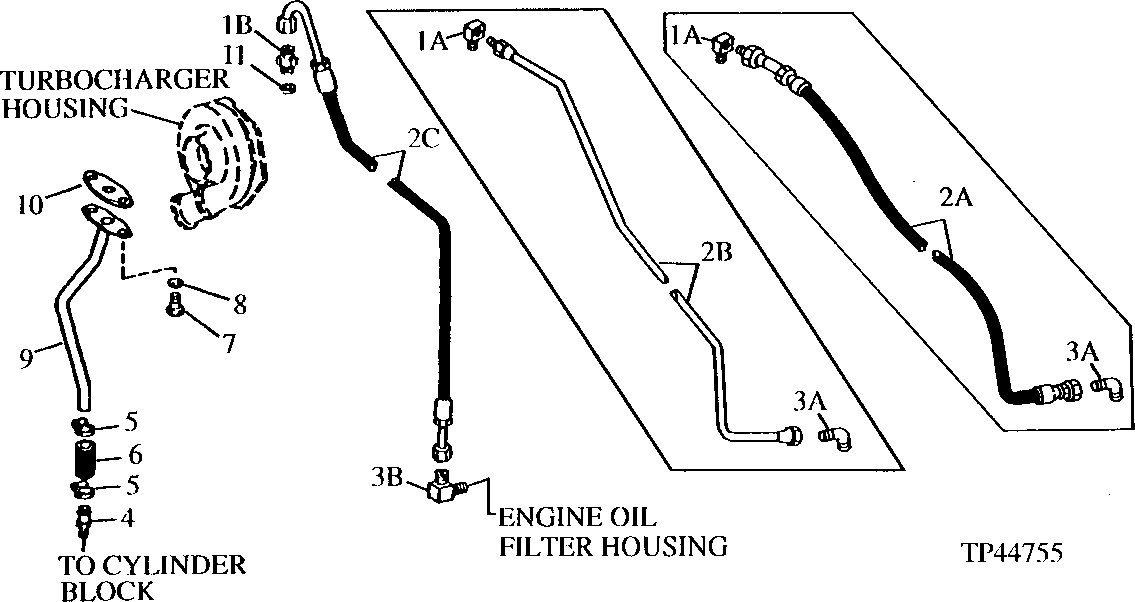

Запчасти John Deere 95D 2 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1A

T11180

ELBOW FITTING

1шт.

1B

M87733

ADAPTER FITTING

1шт.

2A

RE35804

HOSE

(SUB RE29430)

1шт.

2B

RE29430

OIL LINE

1шт.

2C

RE503219

OIL LINE

(SUB FOR RE57793)

1шт.

3A

T19898

FITTING

1шт.

3B

R121891

ELBOW FITTING

1шт.

4

R39503

FITTING

1шт.

5

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

6

HOSE

(CUT TO LENGTH) (MAKE FROM R120013) (SUB FOR R81210)

1шт.

7

19H2284

CAP SCREW

3/8" X 7/8", (USE WITH RE19265)

2шт.

R124277

CAP SCREW

(USE WITH RE62097)

2шт.

8

12H304

LOCK WASHER

3/8", (USE WITH 19H2284)

2шт.

9

RE62097

OIL LINE

(SUB FOR RE19265) (ALSO ORDER (2) R124277)

1шт.

10

R105346

GASKET

(SUB FOR R43416 OR R97349)

1шт.

11

R63548

O-RING

1шт.
