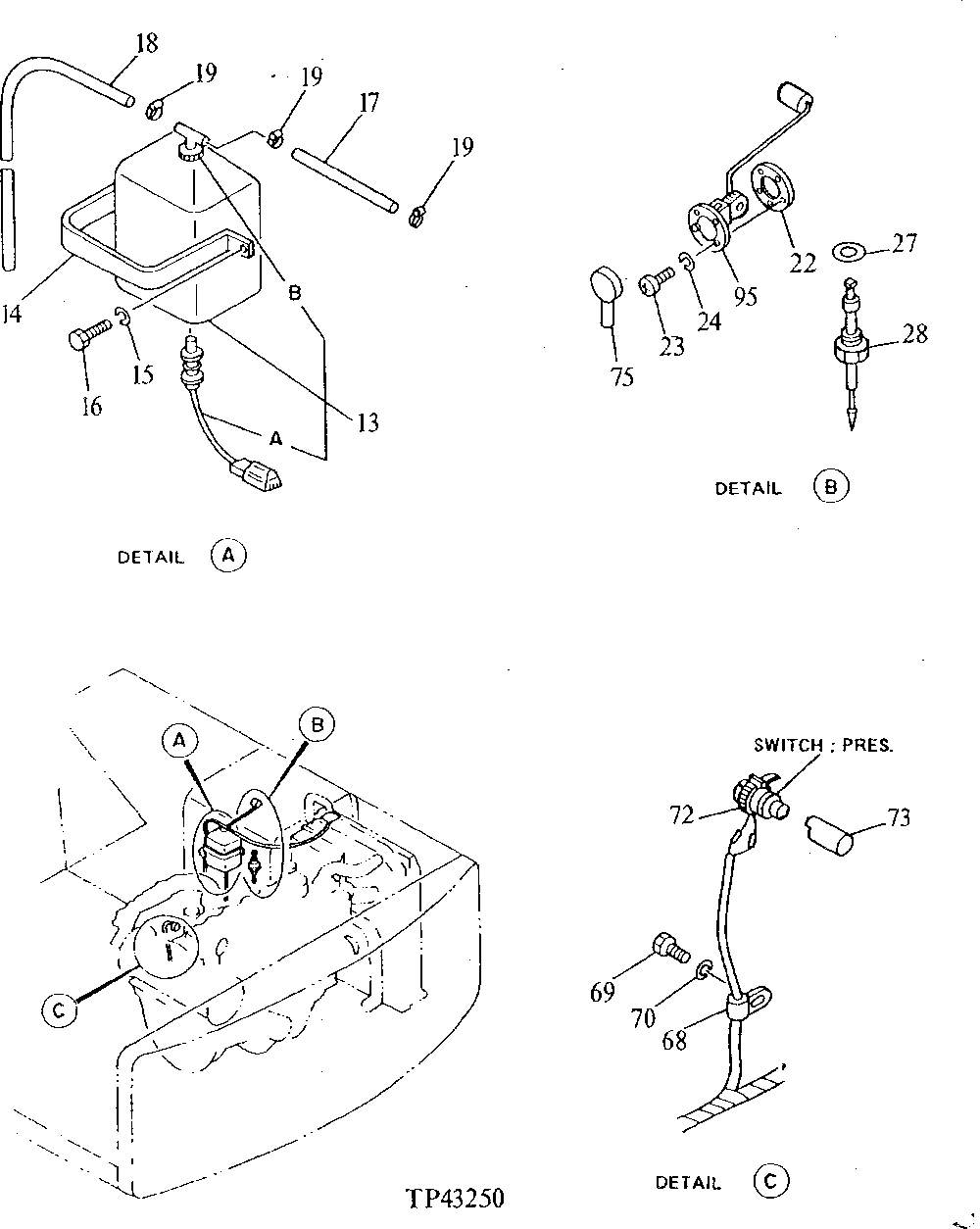

13
4130139
TANK
(SUB FOR TH102161) (COOLANT)
1шт.
13A
4153251
SENDER
(SUB FOR TH102932) (COOLANT LEVEL)
1шт.
13B
4396809
CAP
(SUB FOR TH102933)
1шт.
14
4180555
BRACKET
(SUB FOR TH108579)
1шт.
15
12M7066
LOCK WASHER
10 MM
2шт.
16
19M8324
CAP SCREW
M10 X 16
2шт.
17
HOSE
( TH108580 NO LONGER AVAILABLE) (SUB T79477 BULK MATERIAL CUT TO LENGTH)
1шт.
18
HOSE
(MAKE FROM R120653 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R54445 AND R104595)
ARшт.
19
TY22462
CLAMP
(SUB FOR AR77962 OR AR48236)
3шт.
22
T211051
GASKET
(SUB FOR L29265 OR U42323, THIS APPLICATION)
1шт.
23
21M7278
SCREW
M5 X 10
5шт.
24
12M7064
LOCK WASHER
5 MM
5шт.
27
4157648
SEALING WASHER
(SUB FOR TH108583)
1шт.
28
4201927
SWITCH
(SUB FOR TH108582) (LOW FUEL)
1шт.
68
T38377
CLAMP
1шт.
69
19M8324
CAP SCREW
M10 X 16
1шт.
70
12M7066
LOCK WASHER
10 MM
1шт.
72
H77698
TIE BAND
(SUB FOR M88199)
2шт.
73
4207239
CAP
(SUB FOR TH108591)
1шт.
75
4207240
CAP
(SUB FOR TH108590)
1шт.
95
4201926
FUEL SENDER
(SUB FOR TH108581) (FUEL SENDER)
1шт.
