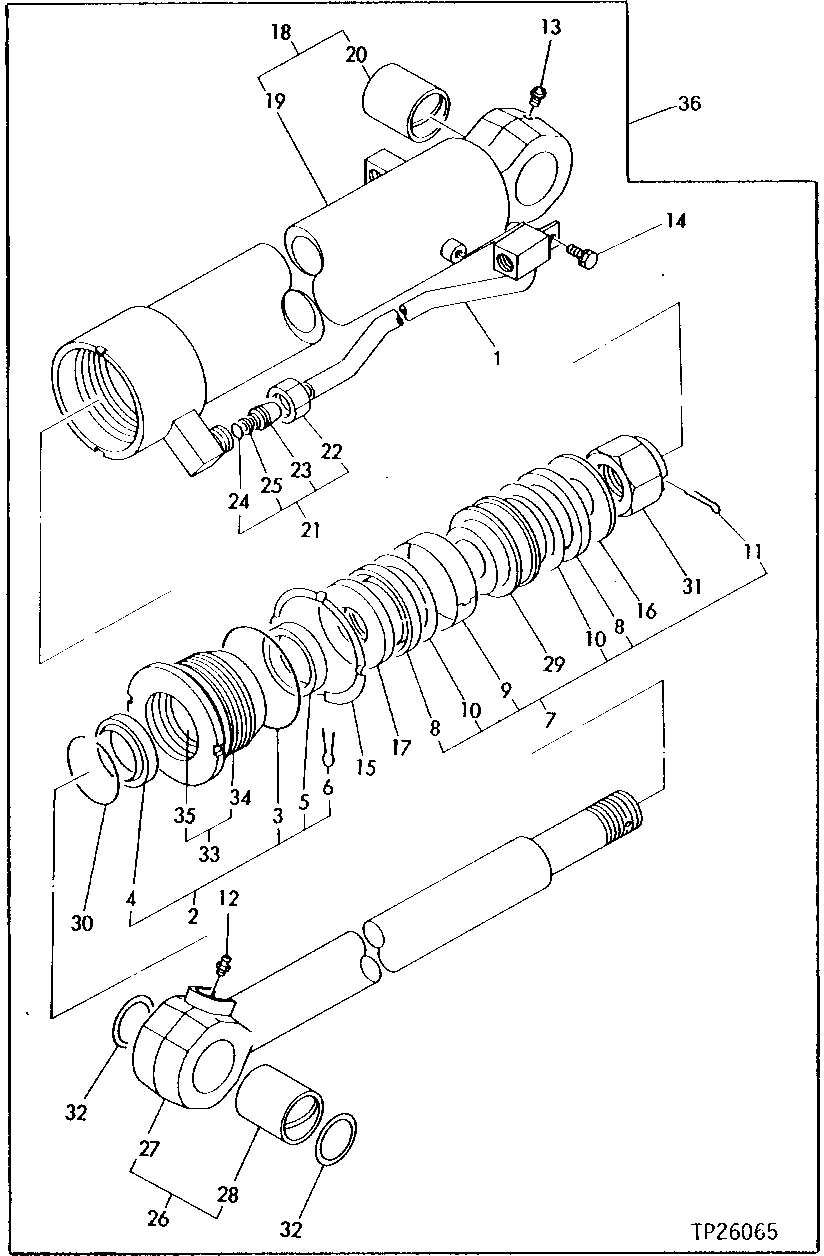

Запчасти John Deere 0 18 - BUCKET CYLINDER 2160 - MAIN HYDRAULIC SYSTEM 21

1

AT110366

OIL LINE

1шт.

2

AT110363

SEAL KIT

1шт.

3

AT264318

O-RING

(SUB FOR T110446)

1шт.

4

T110558

SEAL

1шт.

5

T110561

PACKING

1шт.

6

11M7085

COTTER PIN

6.300 X 63 MM, (SUB FOR T110969)

1шт.

7

AT110364

SEAL KIT

1шт.

8

T110508

PACKING

2шт.

9

T110574

RING

1шт.

10

T110578

BACK-UP RING

2шт.

11

11M7085

COTTER PIN

6.300 X 63 MM, (SUB FOR T110969)

1шт.

12

TH100074

LUBRICATION FITTING

(SUB FOR T110449 OR CH11575)

1шт.

13

CH18478

FITTING

1шт.

14

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.

19M7268

CAP SCREW

M12 X 25

1шт.

15

T110494

WASHER

1шт.

16

T110500

BACK-UP RING

1шт.

17

T110502

BACK-UP RING

1шт.

18

AT110667

HYDRAULIC CYLINDER BARREL

1шт.

19

HYDRAULIC CYLINDER BARREL

(SUB AT110667)

1шт.

20

T110971

BUSHING

(USE IF AVAILABLE)

1шт.

21

AT110365

KIT

1шт.

22

T110972

NUT

1шт.

23

T110973

SLEEVE

1шт.

24

T110974

O-RING

1шт.

25

T110975

BACK-UP RING

1шт.

26

T111446

ROD

1шт.

27

HYDR. CYLINDER ROD GUIDE

(SUB T111446)

1шт.

28

T110971

BUSHING

(USE IF AVAILABLE)

1шт.

29

T110532

PISTON

1шт.

30

T110551

RING

1шт.

31

T110553

NUT

1шт.

32

T110557

SEAL

2шт.

33

AT110237

HYDR. CYLINDER ROD GUIDE

1шт.

34

HYDR. CYLINDER ROD GUIDE

(SUB AT110237)

1шт.

35

T110572

BUSHING

1шт.

36

AT110362

HYDRAULIC CYLINDER

1шт.
