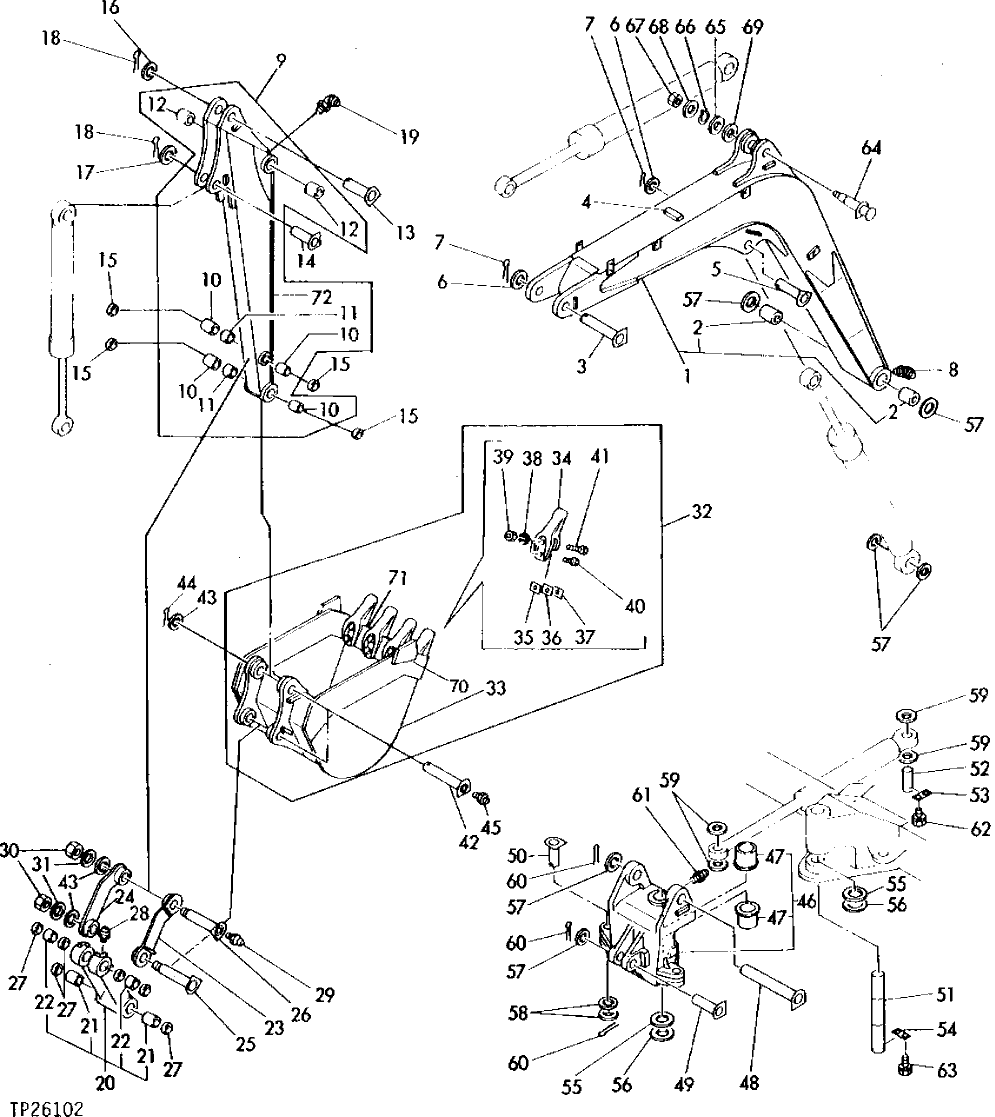

Запчасти John Deere 0 4 - ARM, BOOM, BUCKET, LINKS AND PINS 3302 - BACKHOE (EXCAVATOR) 33

60

11M7073

COTTER PIN

8 X 63 MM, (SUB FOR T110424)

3шт.

61

T116334

LUBRICATION FITTING

(SUB FOR T110450 OR TH100075)

1шт.

62

19M7166

CAP SCREW

M10 X 20

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

63

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

19M8011

CAP SCREW

M12 X 30

2шт.

64

T110933

PIN

1шт.

65

T110934

WASHER

1шт.

66

40M7166

SNAP RING

(SUB FOR CH11485)

1шт.

67

T110490

NUT

1шт.

68

T110935

WASHER

1шт.

69

T110047

WASHER

1шт.

70

T114142

CUTTING EDGE

2шт.

71

T114894

CUTTING EDGE

1шт.

72

ARM

(SUB AT110142)

1шт.
