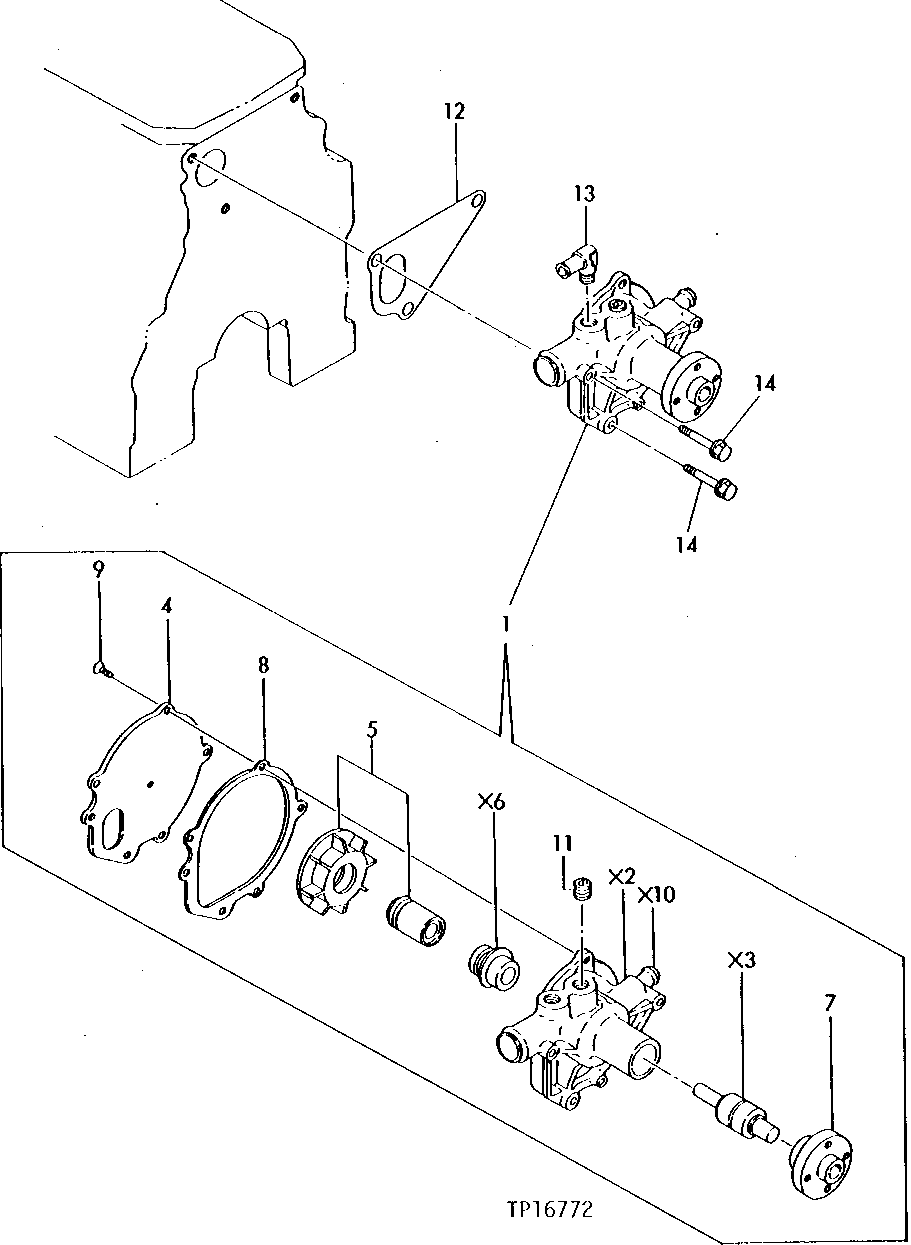

Запчасти John Deere 0 2 - ENGINE WATER PUMP 417 - ENGINE 4

1

AM880905

WATER PUMP

(SUB FOR AM878201, AM875398, AM875942 OR AM879651)

1шт.

2

HOUSING

(SUB AM880905)

1шт.

3

BEARING

(SUB AM880905)

1шт.

4

M809501

PLATE

(SUB FOR M801260)

1шт.

5

ROTOR

(SUB FOR M801263) (SUB AM880905) ( M802028 NO LONGER AVAILABLE)

1шт.

6

SEAL

(SUB AM880905)

1шт.

7

SEAT

(SUB AM880905) ( M801259 NO LONGER AVAILABLE)

1шт.

8

M801261

GASKET

(USE WITH AM875942)

1шт.

M805839

GASKET

(USE WITH AM879651)

1шт.

9

CH16851

SCREW

3шт.

10

UNION FITTING

(SUB AM880905)

1шт.

11

15H666

PIPE PLUG

3/8"

1шт.

12

M801265

GASKET

1шт.

13

T111370

ELBOW FITTING

1шт.

14

19M7801

SCREW

M8 X 60

3шт.
