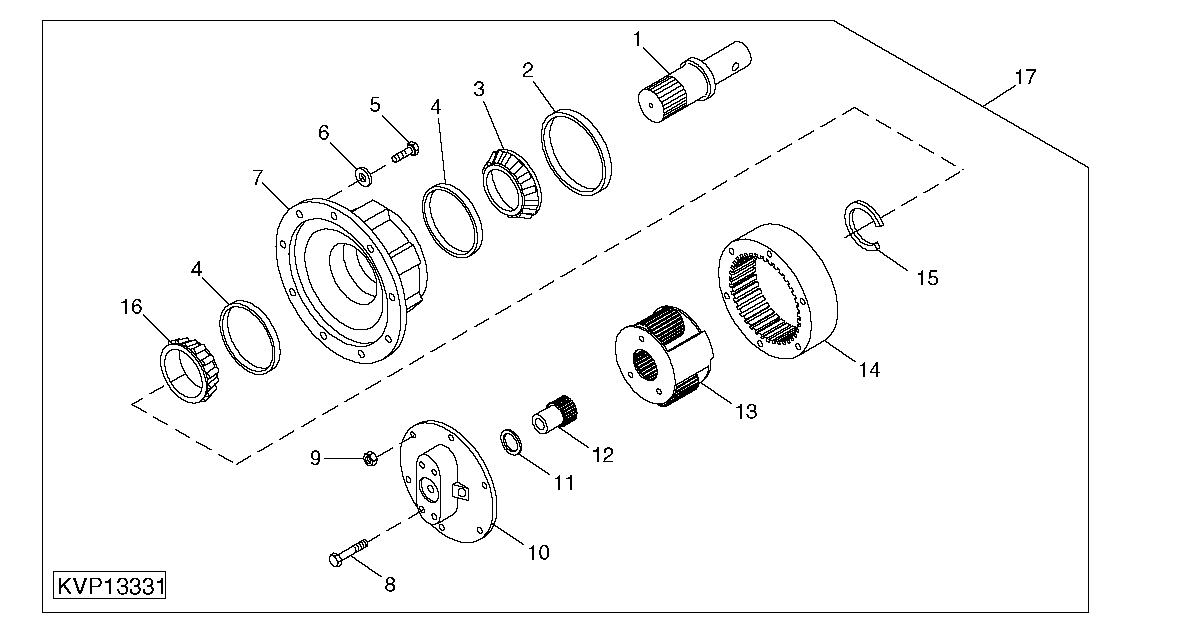

Запчасти John Deere 0C ZTS 149 - PLANETARY GEAR (COMPONENTS) 3302 Bucket With Teeth

1

KV16132

Shaft

1шт.

2

KV16133

Seal

1шт.

3

JD8946

Bearing Cone

1шт.

4

JD8206

Bearing Cup

2шт.

5

19H2959

Cap Screw

3/8" X 2"

6шт.

6

24H1305

Washer

13/32" X 13/16" X 0.065"

6шт.

7

Hub

1шт.

8

19H1791

Cap Screw

1/4" X 1-1/4"

8шт.

9

KV16141

Pipe Plug

1шт.

10

Cover

1шт.

11

KV16139

Lock Washer

1шт.

12

Gear

1шт.

13

Planet Pinion Carrier

1шт.

14

Ring Gear

1шт.

15

KV16135

Piston Ring

1шт.

16

JD8151

Bearing Cone

1шт.

17

KV16005

Crankcase

PLANETARY (CRANKCASE) (COMPL ETE ASSEMBLY ON ANOTHER PAGE)

1шт.
