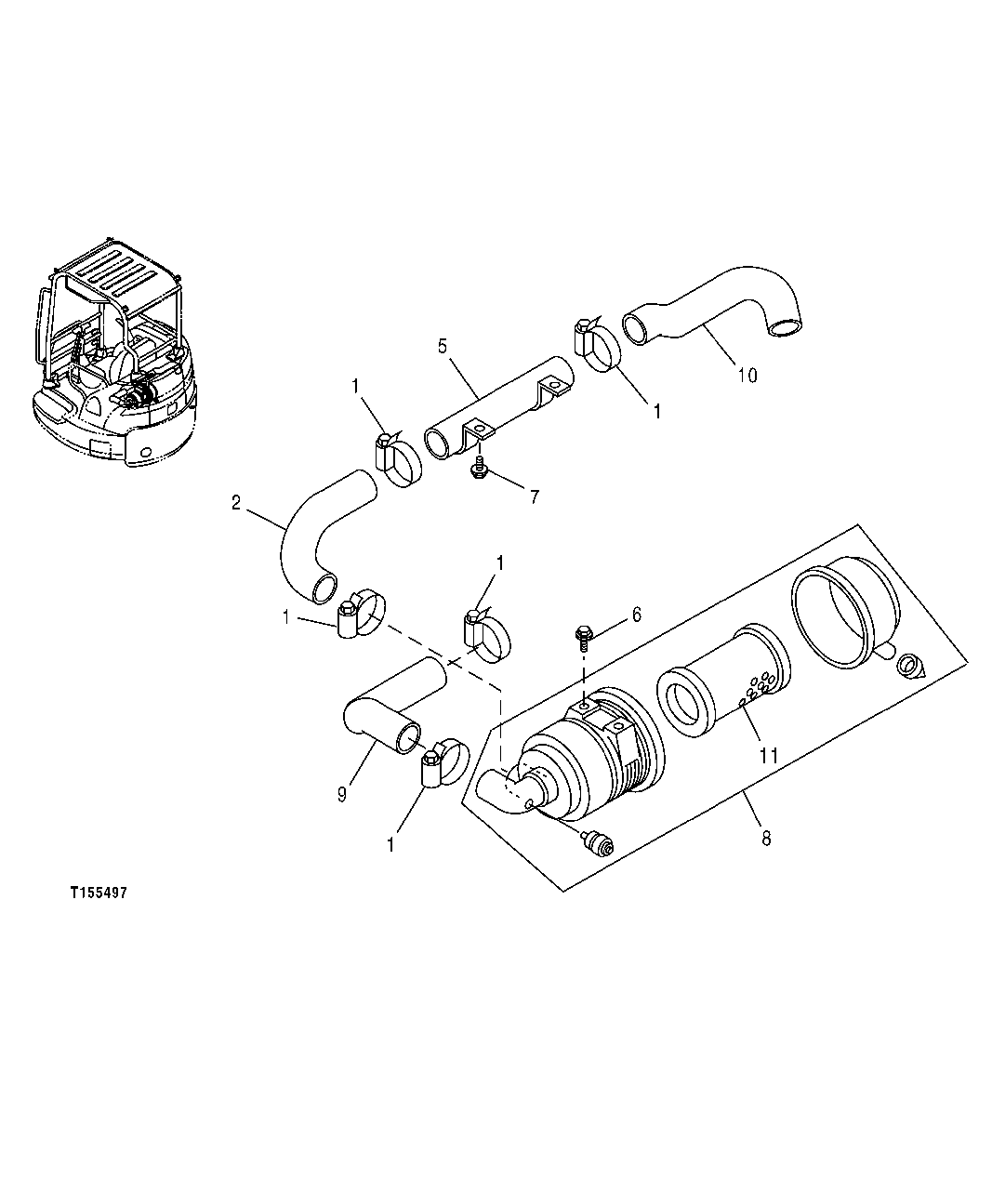

Запчасти John Deere 0C ZTS 48 - Air Cleaner 0521 AIR CLEANER AND PIPING

1

TY22472

Clamp

5шт.

2

4466632

Hose

1шт.

5

8086557

Line

1шт.

6

19M7881

Screw

M8 X 20

2шт.

12M7056

Lock Washer

8 mm

2шт.

24M7036

Washer

9 X 16 X 1.600 mm

2шт.

7

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

8

Filter

COMPLETE (ORDER 4489551 A ND 989335 ( 4470887 NLA))

1шт.

4489551

Air Cleaner

(ALSO ORDER 989335)(INDICATOR 989335 NOT INCLUDED IN 4489551)

1шт.

4610256

Cover

1шт.

4383877

Drain Valve

1шт.

989335

Air Restriction Indicator

1шт.

9

3094736

Hose

1шт.

10

4427631

Hose

(SUB FOR 4475118)

1шт.

11

M131802

Filter Element

(SUB FOR 4417516)

1шт.

12

M131803

Filter Element

(NOT ILLUSTRATED) (SUB FOR 4423981)

1шт.

13

9760073

Line

(NOT ILLUSTRATED)

1шт.

14

12M7056

Lock Washer

8 mm (NOT ILLUSTRATED)

1шт.

19M7881

Screw

M8 X 20 (NOT ILLUSTRATED)

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm (NOT ILLUSTRATED)

1шт.

15

4489243

Hose

(NOT ILLUSTRATED)

1шт.

16

4349459

Hose Clamp

(NOT ILLUSTRATED)

2шт.
