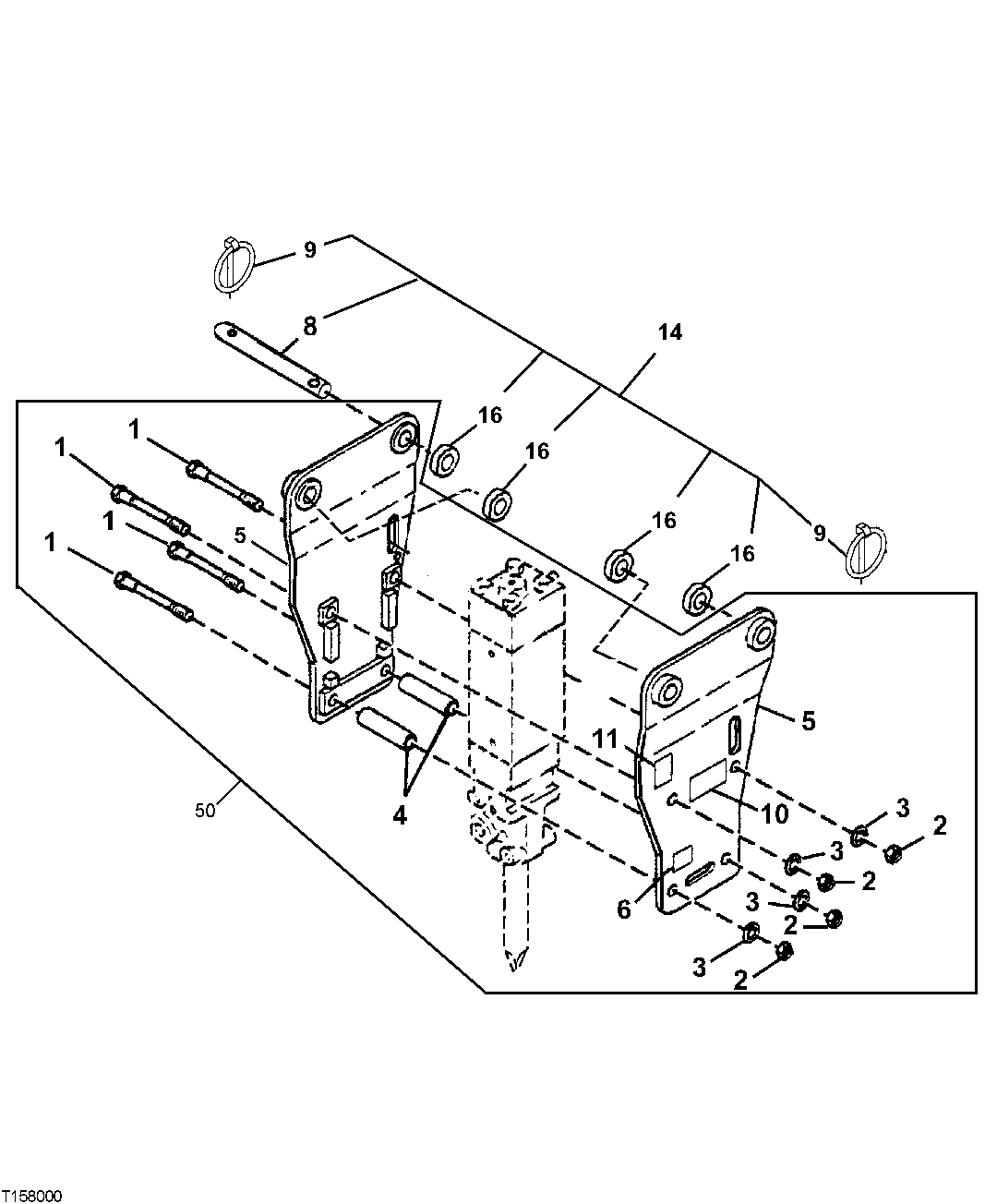

Запчасти John Deere 0ZTS 129 - Hydraulic Breaker Bracket (HB30, HB50) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

19H3529

Cap Screw

1" X 8"

4шт.

2

14H1048

Nut

1"

4шт.

3

24M7294

Washer

26 X 39 X 4 mm

4шт.

4

KV17493

Bushing

2шт.

5

KV21386

Plate

(SUB FOR KV17490)(MATCHED SET)

1шт.

6

ES10894

Label

(FLYING DEBRIS)

2шт.

8

T185390

Pin

2шт.

9

AH89461

Pin Fastener

4шт.

10

KV16407

Label

(WORKSITE PRO - HB50)

2шт.

11

N279497

Label

(WARNING, ACCUMULATOR)

2шт.

14

Pin & Bushing Kit

( AT190487 NLA)

1шт.

16

T185391

Bushing

4шт.

50

Field Installation Kit

( AT280183 NO LONGER AVAILABLE) WHOLEG OODS (HB50 HYDRAULIC BREAKER) (ALSO ORDE R AT190487 PIN AND BUSHING KIT) (ADDITIO NAL COMPONENTS LISTED ON SEPARATE PAGE)

1шт.
