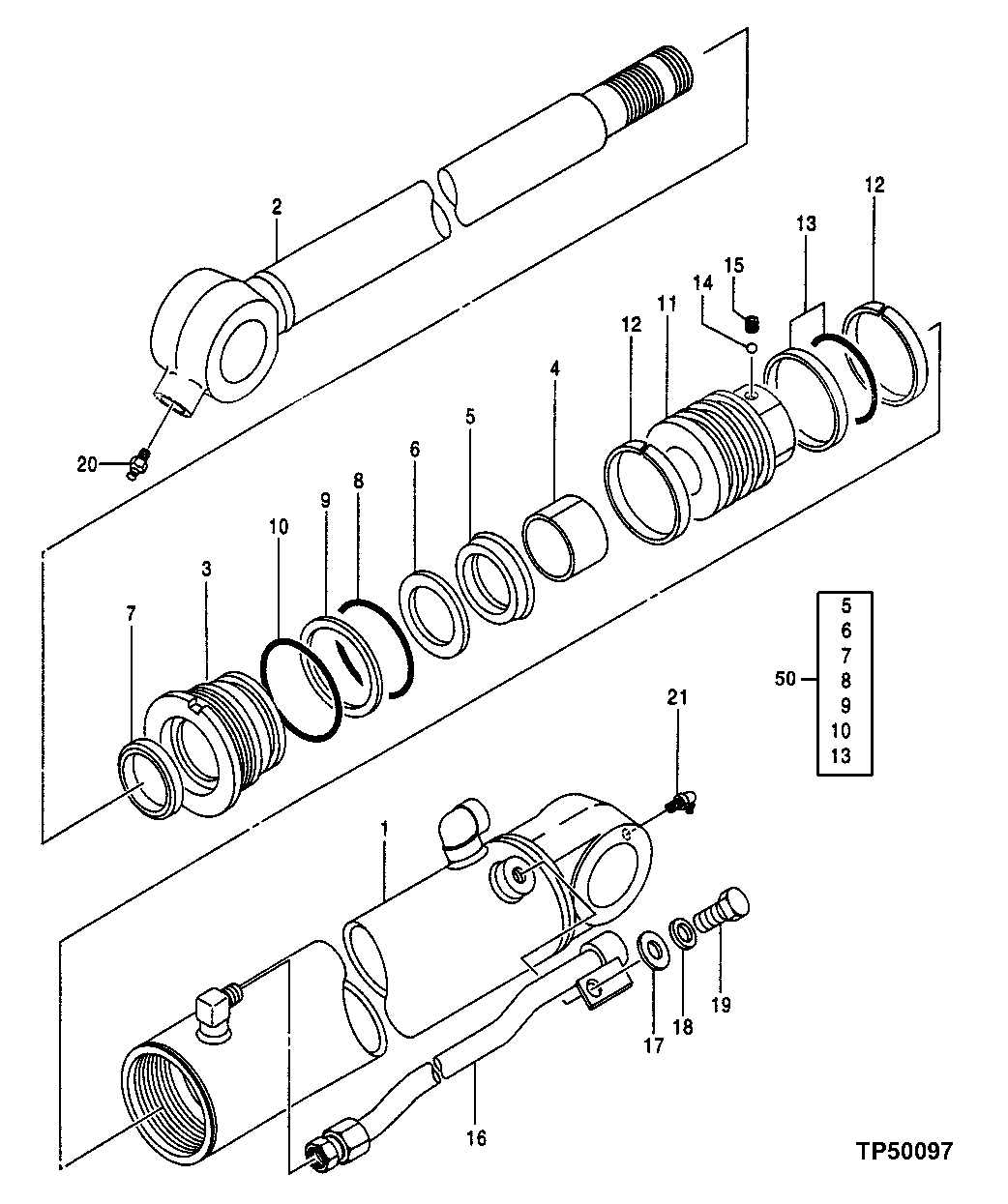

Запчасти John Deere 0ZTS 188 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

1

0844701

Hydraulic Cylinder Barrel

(SUB FOR AT251958, 0735601)

1шт.

2

0844702

Rod

(SUB FOR AT251959 OR 0735602)

1шт.

3

0735603

Hydr. Cylinder Rod Guide

(SUB FOR AT251960)

1шт.

4

0735604

Bushing

(SUB FOR AT251961)

1шт.

5

Packing

1шт.

6

Bearing

1шт.

7

0663001

Seal

(SUB FOR AT251899)

1шт.

8

O-Ring

1шт.

9

Ring

1шт.

10

O-Ring

1шт.

11

0735607

Piston

(SUB FOR AT251962)

1шт.

12

0479010

Ring

(SUB FOR AT251766)

2шт.

13

Ring

1шт.

14

0370110

Ball

(SUB FOR AT251764, 0478719)

1шт.

15

22M7080

Set Screw

M8 X 8 (SUB FOR AT2517 65, 0326308 OR M000808)

1шт.

16

0735608

Oil Line

(SUB FOR AT251963)

1шт.

17

Washer

1шт.

18

Washer

1шт.

19

Bolt

1шт.

20

0429920

Lubrication Fitting

(SUB FOR TH0429920)

1шт.

21

AH226482

Lubrication Fitting

(SUB FOR TH0481204, 0481 204, 0225709 OR CH18478)

1шт.

50

0844705

Seal Kit

(SUB FOR AT251964)

1шт.
