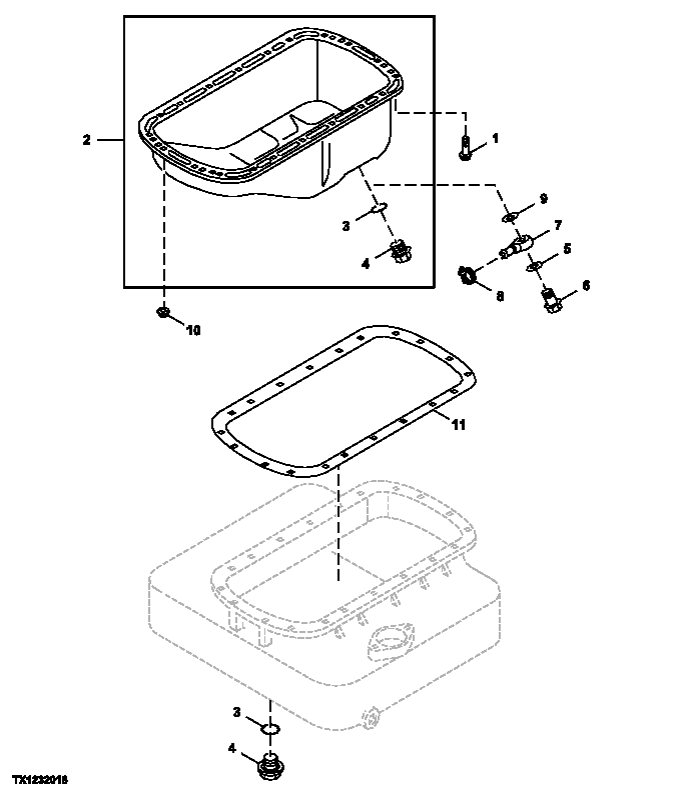

Запчасти John Deere 0ZTS 29 - ENGINE OIL PAN 0407 Engine Oiling System

1

8971351410

Bolt

(SUB FOR AT260061)

20шт.

2

8971711260

Pan

(SUB FOR AT254963)

1шт.

3

8943993980

Gasket

(SUB FOR AT254814 OR 1096231830)

1шт.

4

9096620120

Pipe Plug

(SUB FOR AT255027)

1шт.

5

9095714200

Gasket

(SUB FOR AT256023)

2шт.

6

5890901040

Bolt

(SUB FOR AT256020)

1шт.

7

8941518911

Fitting

(SUB FOR AT256021)

1шт.

8

X099150100

Hose Clamp

(SUB FOR AT256022)

1шт.

9

9095714200

Gasket

(SUB FOR AT256023)

1шт.

10

8971378360

Nut

(SUB FOR AT260063)

2шт.

11

8973149140

Gasket

1шт.
