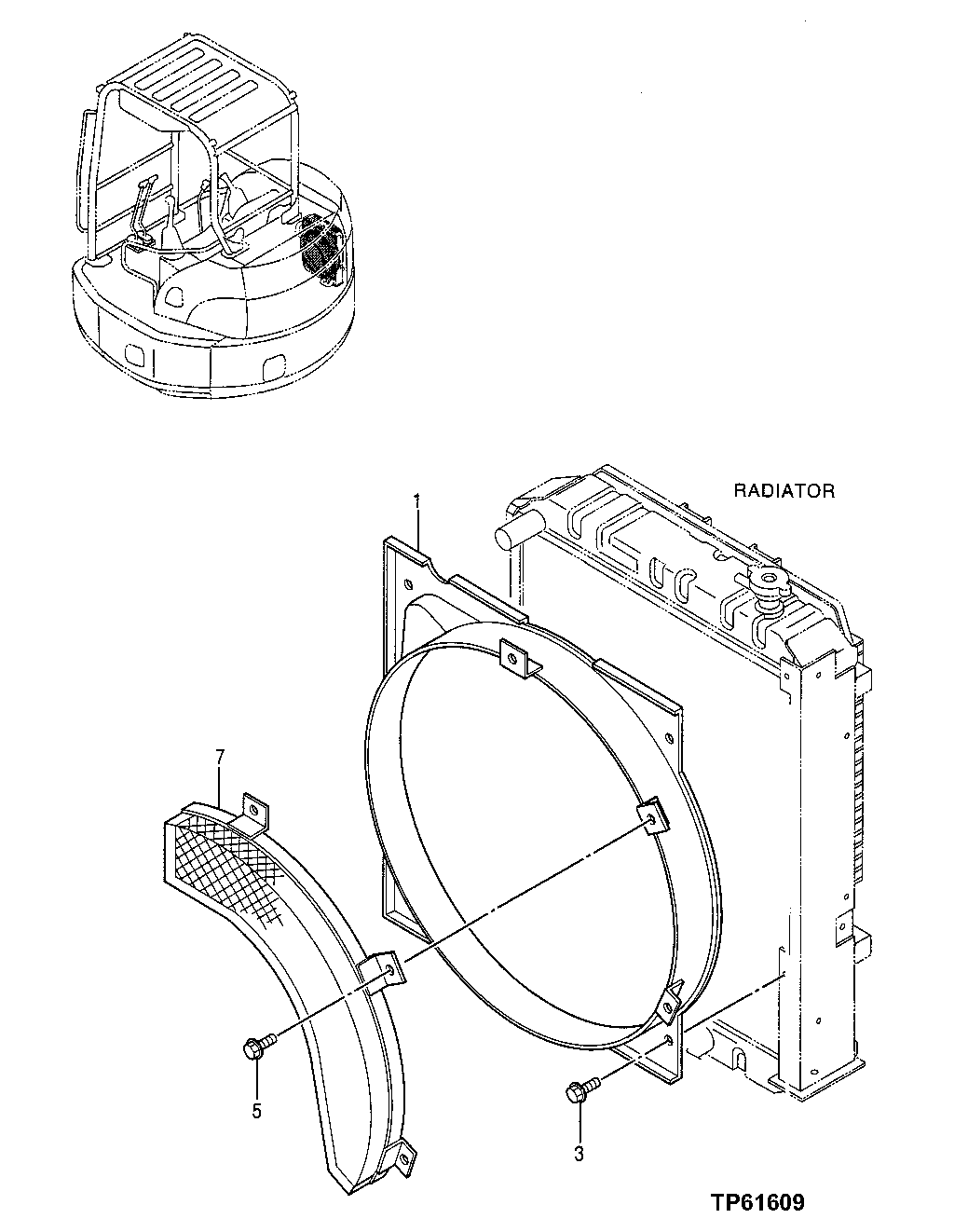

Запчасти John Deere 0ZTS 50 - RADIATOR SHROUD 0510 Engine Cooling Systems

1

6019208

Shroud

(SUB FOR AT251538, THIS APPL ICATION ) (SUB FOR TH6019208)

1шт.

3

19M7077

Cap Screw

M6 X 20

4шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

5

19M8425

Cap Screw

M6 X 16

3шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

3шт.

12M7006

Lock Washer

6 mm

3шт.

7

4414164

Guard

(SUB FOR AT251503)

1шт.
