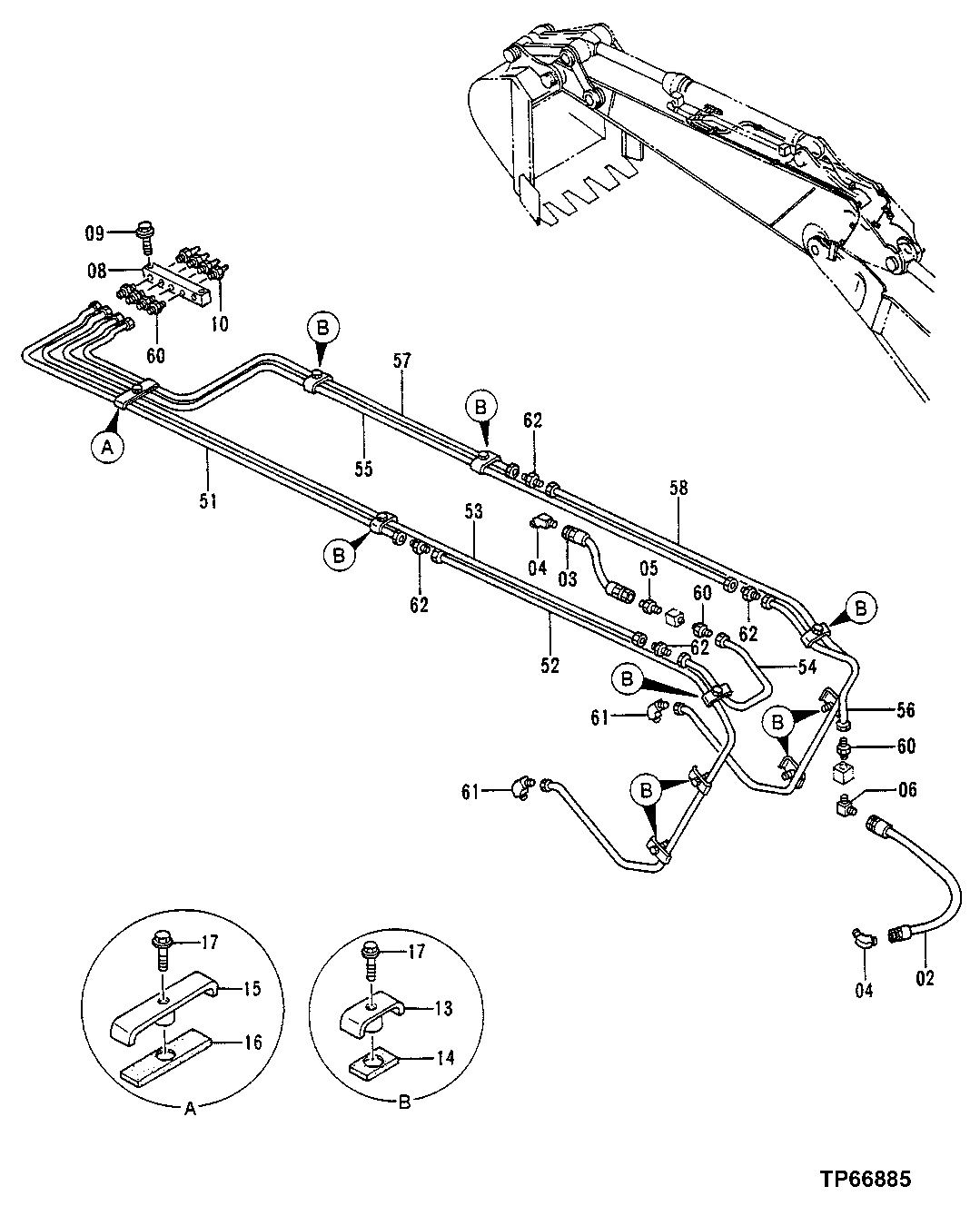

Запчасти John Deere 50LC 190 - Lubricate Lines (Semi-Long Arm) 3360 Hydraulic System

2

AT202092

Hydraulic Hose

1шт.

3

TH102493

Hydraulic Hose

1шт.

4

94-1501

Elbow Fitting

(SUB FOR AT121757)

2шт.

5

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

1шт.

6

94-1401

Elbow Fitting

(SUB FOR TH101387)

1шт.

8

4274903

Junction Block

(SUB FOR AT202119)

1шт.

9

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

JD7769

Lubrication Fitting

4шт.

13

9736422

Clamp

(SUB FOR AT202175)

9шт.

14

AT318012

Isolator

(SUB FOR 4269657) (SUB FOR AT130970)

9шт.

15

9736421

Clamp

(SUB FOR AT202174)

1шт.

16

AT318020

Strap

(SUB FOR 4273721, AT131668)

1шт.

17

19M7662

Cap Screw

M10 X 30

10шт.

12M7066

Lock Washer

10 mm

10шт.

51

4326743

Oil Line

(SUB FOR TH4326743)

1шт.

52

3067443

Oil Line

(SUB FOR TH3067443)

1шт.

53

4326744

Oil Line

(SUB FOR TH4326744)

1шт.

54

4326900

Oil Line

(SUB FOR TH4326900)

1шт.

55

4326745

Oil Line

(SUB FOR TH4326745)

1шт.

56

4326901

Oil Line

(SUB FOR TH4326901)

1шт.

57

4326746

Oil Line

(SUB FOR TH4326746)

1шт.

58

3067444

Oil Line

(SUB FOR TH3067444)

1шт.

60

4130169

Fitting

(SUB FOR TH101391)

6шт.

61

4130175

Fitting

(SUB FOR TH101392)

2шт.

62

Z32962

Fitting

4шт.
