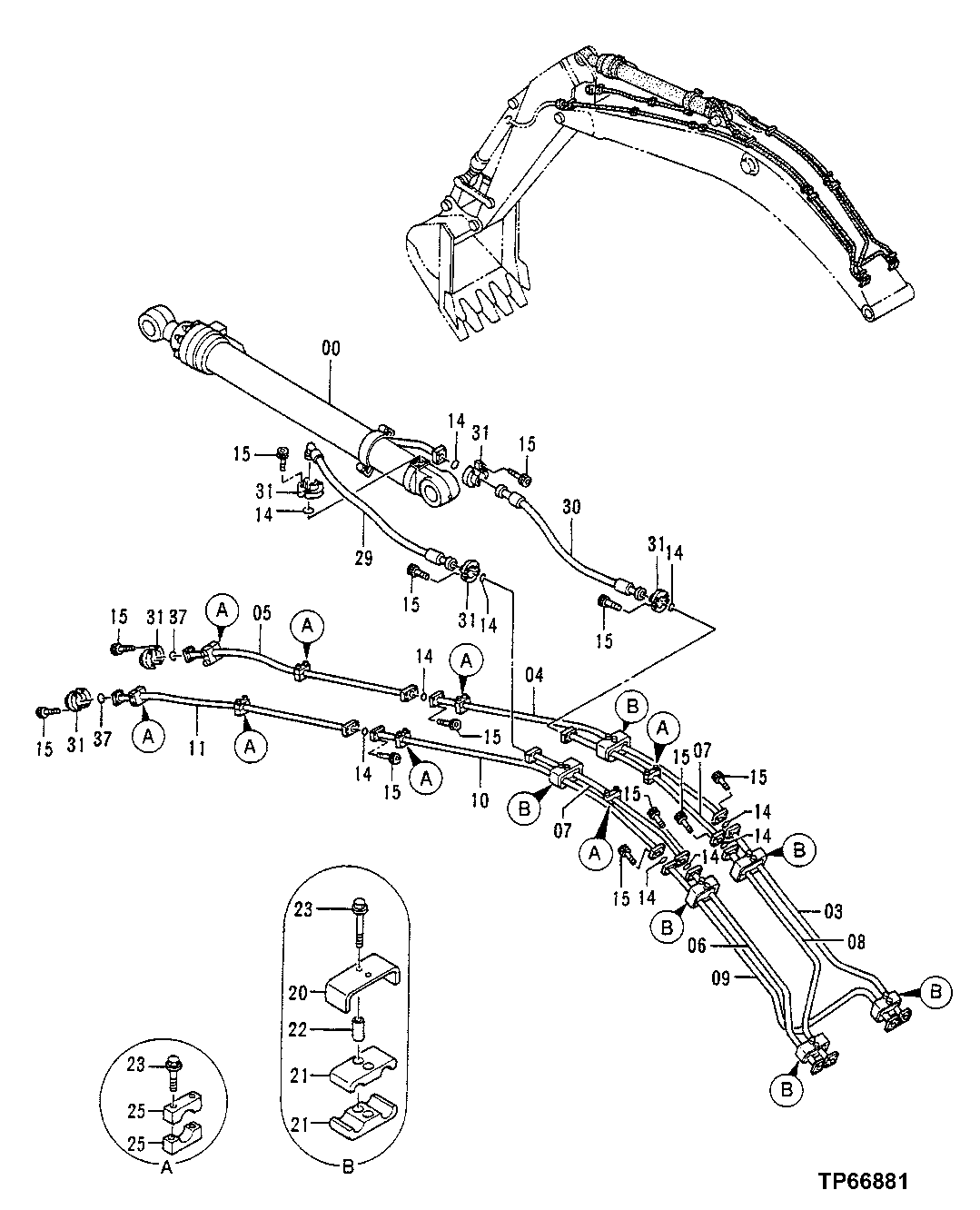

Запчасти John Deere 50LC 194 - FRONT PIPINGS 3360 Hydraulic System

0

Cylinder

Arm See Arm Cylinder Page For Detail

1шт.

3

8053777

Oil Line

(SUB FOR TH8053777)

1шт.

4

8058163

Oil Line

(SUB FOR TH8058163)

1шт.

5

8053779

Oil Line

(SUB FOR TH8053779)

1шт.

6

8055772

Oil Line

(SUB FOR TH8055772)

1шт.

7

8058161

Oil Line

(SUB FOR TH8058161)

2шт.

8

8055773

Oil Line

(SUB FOR TH8055773)

1шт.

9

8055774

Oil Line

(SUB FOR TH8055774)

1шт.

10

8058162

Oil Line

(SUB FOR TH8058162)

1шт.

11

8053772

Oil Line

(SUB FOR TH8053772)

1шт.

14

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

10шт.

15

19M8712

Screw

M14 X 50

48шт.

20

4304481

Clamp

(SUB FOR AT201755)

6шт.

21

4337125

Clamp

(SUB FOR TH4337125)

12шт.

22

28H2611

Spacer

0.546" X 0.840" X 2"

12шт.

23

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

28шт.

19M8122

Cap Screw

M12 X 85

28шт.

25

AT201796

Clamp

16шт.

29

4326463

Hydraulic Hose

(SUB FOR TH4326463)

1шт.

30

4326464

Hydraulic Hose

(SUB FOR TH4326464)

1шт.

31

AT131685

Flange Fitting

12шт.

37

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.
