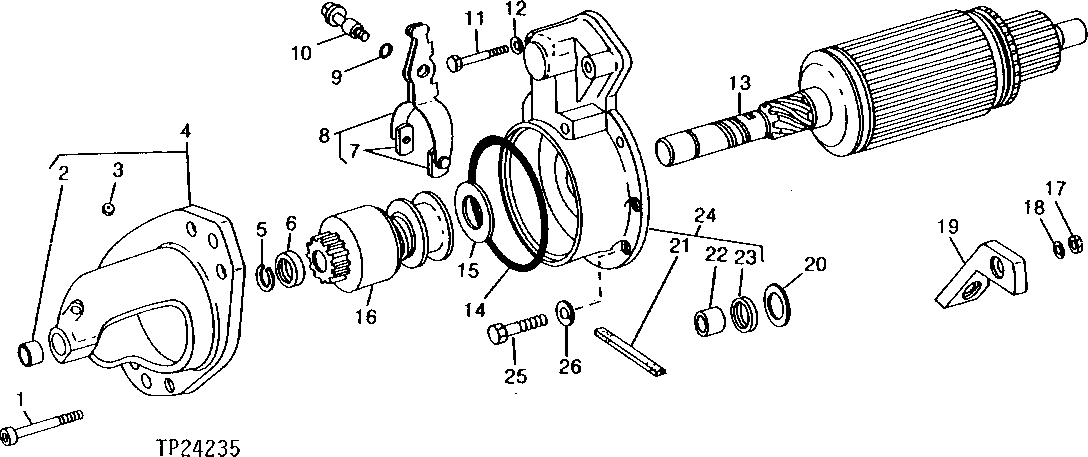

Запчасти John Deere 90D 63 - STARTING MOTOR DRIVE MOTOR AND ARMATURE 0422 STARTING MOTOR AND FASTENINGS 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R65700

Screw

M7 X 74.500

6шт.

2

R50891

Bushing

1шт.

3

R50892

Plug

1шт.

4

RE16047

Starter Motor

DRIVE HOUSING

1шт.

5

R50902

Snap Ring

1шт.

6

R65701

Locking Collar

1шт.

7

R51667

Wear Plate

2шт.

8

AR67827

Arm

1шт.

9

R52387

O-Ring

10.820 X 1.778 mm

1шт.

10

R50897

Shaft

1шт.

11

R50893

Screw

M6 X 42

2шт.

12

12H302

Lock Washer

1/4"

2шт.

13

Armature

( AR84338 NO LONGER AVAILABLE)

1шт.

14

R50901

Washer

86.004 X 91.999 X 2.007 mm

1шт.

15

R50905

Wear Ring

1шт.

16

AR84337

Drive

1шт.

17

14H971

Nut

1/2"

1шт.

18

R50899

Lock Washer

1шт.

19

R50910

Electrical Connector Assy

1шт.

20

R50906

Thrust Washer

30 X 50 X 1.500 mm

1шт.

21

R51666

Wick

FELT, OIL

1шт.

22

R51665

Bushing

CENTER HOUSING

1шт.

23

AR55947

Seal

1шт.

24

Housing

CENTER BEARING ( AR68731 NLA)

1шт.

25

R51661

Screw

M6 X 18

2шт.

26

12H302

Lock Washer

1/4"

2шт.

30

RE70961

Starter Motor Kit

(SUB FOR RE65173, RE43422 AND RE15718) ( RE 15718 NOT ILLUSTRATED AND NO LONGER AVAILABL E) ( RE15718 CONTAINED ALL ITEMS ON THIS PAG E - ADDITIONAL COMPONENTS ON FOLLOWING PAGES )

1шт.

RE65173

Kit

1шт.

SE501424

Starter Motor Reman

(REMAN FOR RE65173)

1шт.

RE43422

Kit

1шт.

RE15718

Starter Motor

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE43422 OR RE15718)

1шт.
