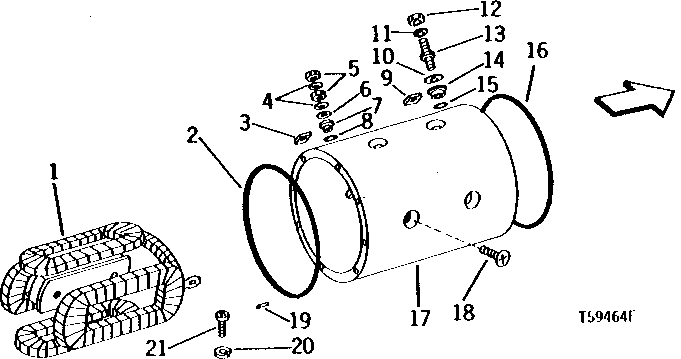

Запчасти John Deere 90D 64 - STARTING MOTOR AND MAIN FRAME COIL 0422 STARTING MOTOR AND FASTENINGS 4045TT008, 4276TT021 4045TT008, 4276TT021

1

AR84339

Field Winding Coil

1шт.

2

R50913

O-Ring

105.600 X 3.500 mm

1шт.

3

R50916

Washer

1шт.

4

12H246

Lock Washer

0.190"

2шт.

5

R50907

Nut

M5

2шт.

6

24H1283

Washer

7/32" X 1/2" X 0.049"

1шт.

7

R50914

Washer

5.207 X 11.989 X 4.597 mm

1шт.

8

R50915

O-Ring

4.800 X 1.900 mm

1шт.

9

R50920

Bushing

1шт.

10

R50917

Washer

1шт.

11

R50899

Lock Washer

1шт.

12

R50909

Nut

M10

1шт.

13

R56802

Stud

1шт.

14

R50918

Washer

10.185 X 21.996 X 6.579 mm

1шт.

15

R50919

O-Ring

9.804 X 1.900 mm

1шт.

16

R50922

O-Ring

117.069 X 3.531 mm

1шт.

17

Housing

1шт.

18

R50921

Screw

M10 X 20

8шт.

19

R51664

Dowel Pin

1шт.

20

12H246

Lock Washer

0.190"

1шт.

21

R50931

Screw

M5 X 10

1шт.

25

RE70961

Starter Motor Kit

(SUB FOR RE65173, RE43422 AND RE157 18)( RE15718 CONTAINED ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LI STED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

SE501407

Starter Motor Reman

(REMAN FOR RE70961)

1шт.

RE65173

Kit

1шт.

SE501424

Starter Motor Reman

(REMAN FOR RE65173)

1шт.

RE43422

Kit

1шт.

RE15718

Starter Motor

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE43422 OR RE15718)

1шт.
