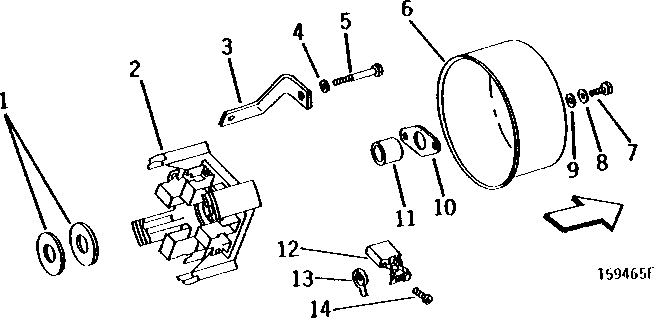

Запчасти John Deere 90D 65 - STARTING MOTOR COMMUTATOR AND END COVER 0422 STARTING MOTOR AND FASTENINGS 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R50923

Shim

18 MM (.007")

2шт.

2

AR54997

Frame

1шт.

3

R51660

Bracket

2шт.

4

12H303

Lock Washer

5/16"

2шт.

5

R51659

Screw

2шт.

6

R50912

Cover

1шт.

7

R50931

Screw

M5 X 10

2шт.

8

12H246

Lock Washer

0.190"

2шт.

9

24H1283

Washer

7/32" X 1/2" X 0.049"

2шт.

10

R50930

Gasket

1шт.

11

R50891

Bushing

1шт.

12

R65702

Brush

4шт.

13

R50928

Spring

4шт.

14

R50929

Screw

4шт.

20

RE70961

Starter Motor Kit

(SUB FOR RE65173, RE43422 AND RE15718)( RE15 718 NOT ILLUSTRATED AND NO LONGER AVAILABLE) ( RE15718 CONTAINED ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE S)

1шт.

SE501407

Starter Motor Reman

(REMAN FOR RE70961)

1шт.

RE65173

Kit

1шт.

SE501424

Starter Motor Reman

(REMAN FOR RE65173)

1шт.

RE43422

Kit

1шт.

RE15718

Starter Motor

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE43422 OR RE15718)

1шт.
