4 - ENGINE OIL FILLER OPENING COVER

Запчасти John Deere 95 4 - ENGINE OIL FILLER OPENING COVER 407 - ENGINE 4

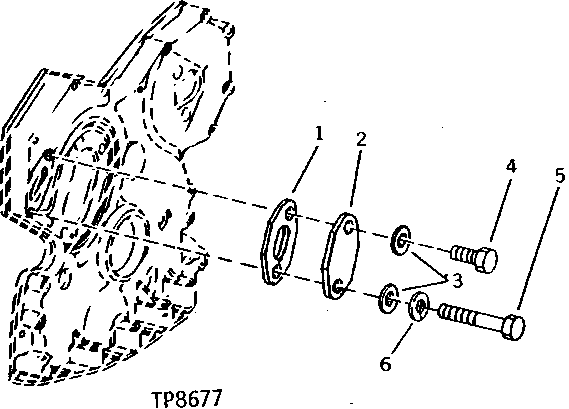

Схема запчастей John Deere 95 - 4 - ENGINE OIL FILLER OPENING COVER 407 - ENGINE 4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T20336

GASKET

1шт.

2

T23260

COVER

1шт.

3

24H1304

WASHER

13/32" X 23/32" X 0.120"

ARшт.

4

R122618

SCREW

(SUB FOR 19H1648, THIS APPLICATION)

1шт.

5

19H2458

CAP SCREW

3/8" X 3"

1шт.

6

12H304

LOCK WASHER

3/8"

1шт.
