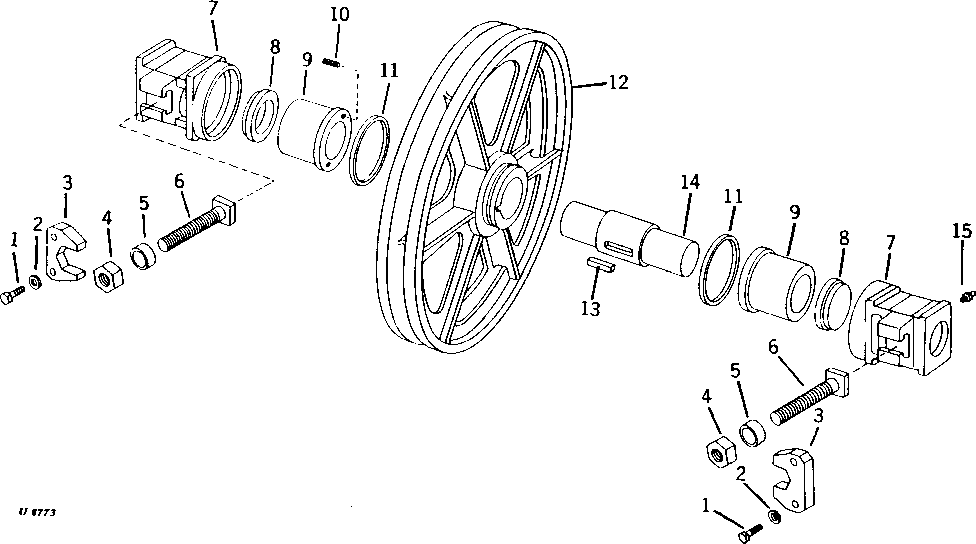

Запчасти John Deere 90 3 - TAKE-UP TUMBLER 45 - TRACK AND PLANETARY DRIVE

1

19H1670

CAP SCREW

9/16" X 1-1/2"

4шт.

2

12H317

LOCK WASHER

9/16"

4шт.

3

T34447

LOCK PLATE

(SUB FOR U46196)

2шт.

4

491310

NUT

(SUB FOR U46199)

2шт.

5

U46198

BUSHING

2шт.

6

315027

BOLT

(SUB FOR U46197)

2шт.

7

U46204

PIVOT

OUTER

2шт.

8

47736

COVER

(SUB FOR U46205)

2шт.

9

U46206

BUSHING

2шт.

10

22H1062

SET SCREW

0.164" X 1/2", (SUB FOR U46178)

4шт.

11

484757

PISTON RING

(SUB FOR U46203)

2шт.

12

U46201

DRIVER

1шт.

13

U46202

SHAFT KEY

1шт.

14

U46200

SHAFT

1шт.

15

JD7799

LUBRICATION FITTING

65°, 1/8", (SUB FOR JD7807)

2шт.
