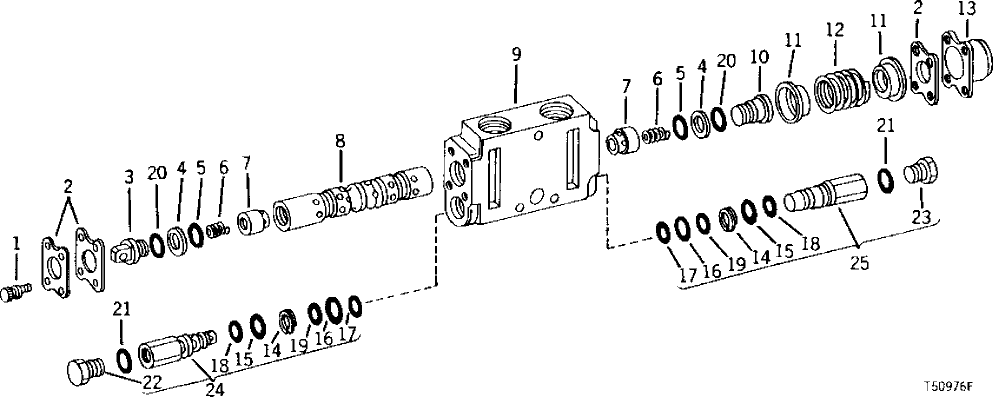

Запчасти John Deere 90 17 - BOOM, CROWD AND BUCKET CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

19H2931

SCREW

1/4" X 0.620"

8шт.

12H302

LOCK WASHER

1/4"

8шт.

2

U45852

PLATE

3шт.

3

U45848

LUG

1шт.

4

U45855

WASHER

(A)

2шт.

5

R29463

O-RING

(A)

2шт.

6

U45851

SPRING

2шт.

7

U45850

POPPET

2шт.

8

VALVE SPOOL

(CROWD AND BUCKET) (SUB AU43595)

1шт.

VALVE SPOOL

(BOOM) (SUB AU43896)

1шт.

9

HOUSING

(CROWD AND BUCKET) (SUB AU43595)

1шт.

HOUSING

(BOOM) (SUB AU43896)

1шт.

10

U45849

BOLT

1шт.

11

U45853

ROUND RETAINER

2шт.

12

U45856

SPRING

1шт.

13

U45854

CAP

1шт.

14

R32588

BACK-UP RING

2шт.

15

P47908

O-RING

2шт.

16

U45858

BACK-UP RING

(A)

2шт.

17

U45857

O-RING

(A)

2шт.

18

P48347

O-RING

2шт.

19

32246

O-RING

2шт.

20

U45857

O-RING

2шт.

21

T31124

SHIM

(AS REQUIRED)

ARшт.

T31125

SHIM

15 MM (.006")

ARшт.

T31126

SHIM

18 MM (.007")

ARшт.

T31127

SHIM

(AS REQUIRED) .20 MM (.008")

ARшт.

T31128

SHIM

23 MM (.009")

ARшт.

22

SCREW

(SUB AU43596)

1шт.

23

SCREW

(SUB AU43596 OR AT33484)

1шт.

24

AU43596

PRESSURE RELIEF VALVE

20 685 KPA (207 BAR)(3000 PSI)

1шт.

25

AU43596

PRESSURE RELIEF VALVE

RELIEF 20 685 KPA (207 BAR) (3000 PSI) (CROWD AND BUCKET)

1шт.

AT33484

PRESSURE RELIEF VALVE

RELIEF 25 855 KPA (259 BAR) (3750 PSI) BOOM

1шт.

AU43595

SPOOL VALVE

CONTROL (CROWD AND BUCKET)

1шт.

AU43896

VALVE

CONTROL (BOOM)

1шт.

AU44009

KIT

SPOOL REPAIR

1шт.
